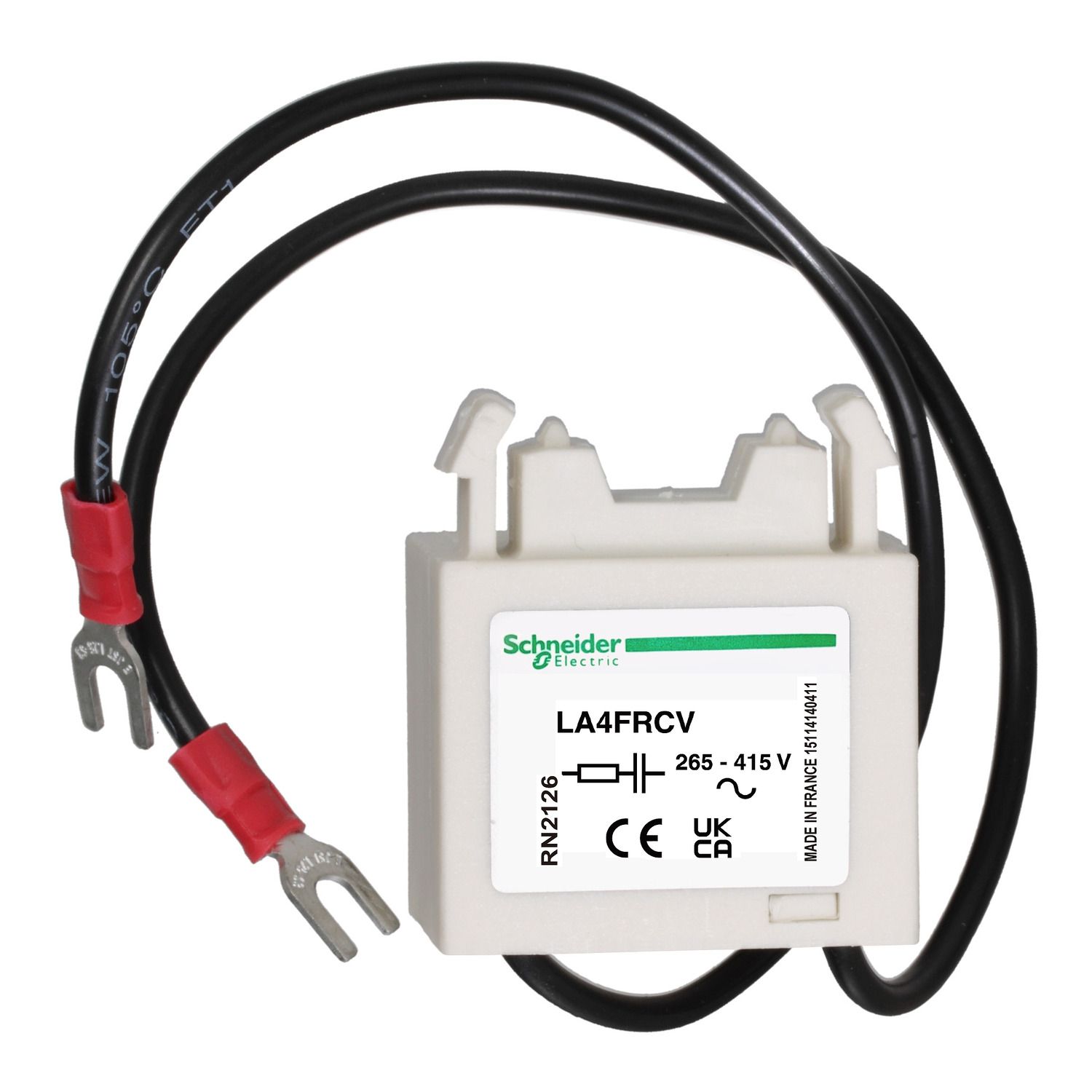

TeSys F suppressor block, for coil protection of contactors LC1F, LC2F, CR1F. To be used for 265-415V AC control circuits, it provides RC protection limiting the transient voltage to 3 Uc max. Clipping on bracket LA9D09981 (to be ordered separately), to be connected to the coil screw terminals. It conforms to RoHS/REACh regulation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA4F |
| Product compatibility | LC1F |
| Range | TeSys |
| Product or component type | suppressor module |
| Range of product | TeSys F |
| Complementary | |
| Suppressor technology | RC circuit |
| Compatibility code | LA4F |
| Mounting mode | by clips |
| Maximum peak voltage | 3 Uc |
| Net weight | 0.04 kg |
| [Uc] control circuit voltage | 265...415 V AC |
| Environment | |
| Product certifications | UKCA |
