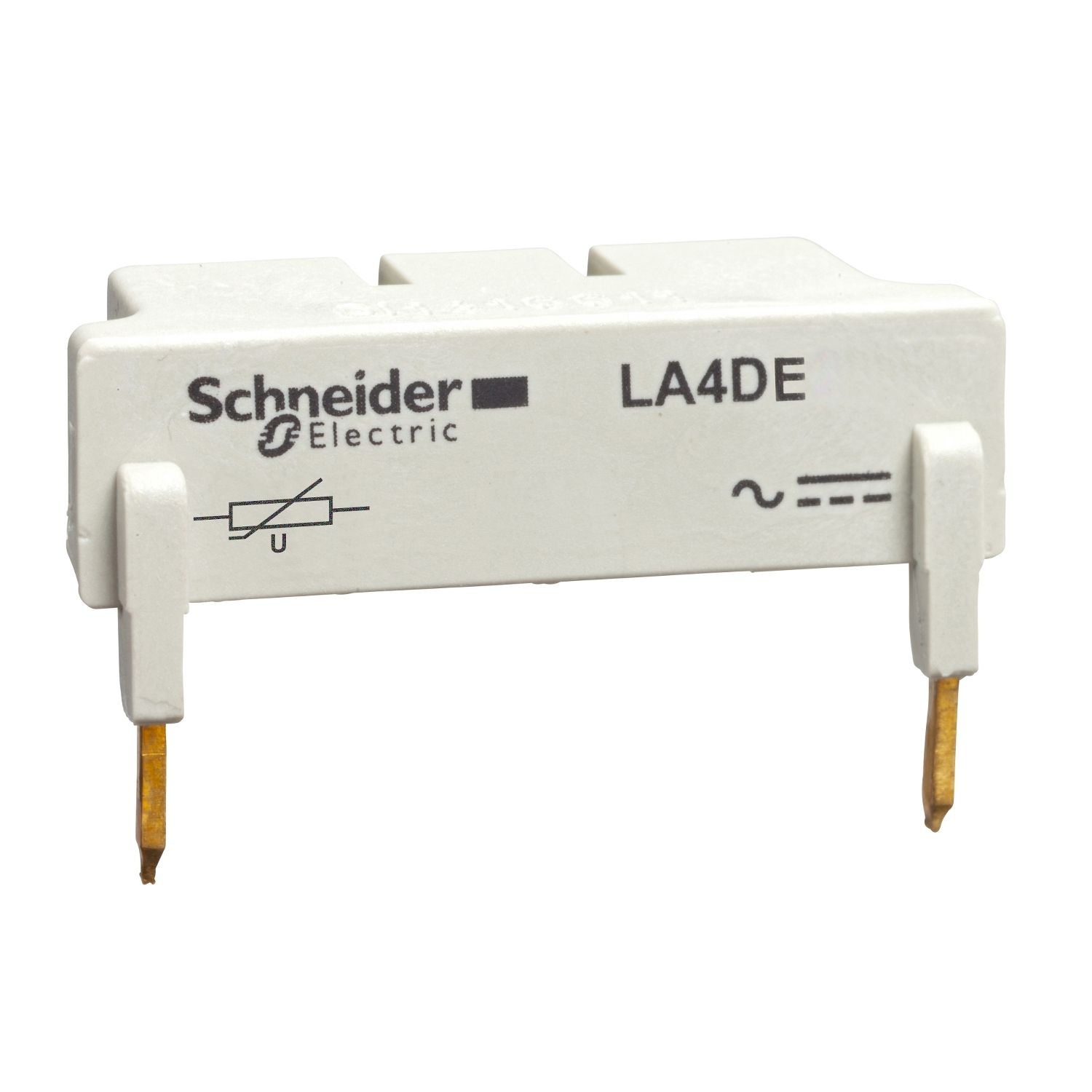

TeSys Deca suppressor module, for LC1D80-D95 (3P), LP1D40-D80 (4P) contactors. To be used with 24-48V DC control circuit voltage, it provides varistor protection limiting the transient voltage to 2 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Sustainability compliant.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA4D |
| Product compatibility | 3P LC1D80...D95, 4P LP1D80 |
| Range | TeSys |
| Product or component type | suppressor module |
| Range of product | TeSys Deca |
| Complementary | |
| Suppressor technology | varistor (peak limiting) |
| Compatibility code | LA4D |
| Mounting mode | by screws |
| Maximum peak voltage | 2 Uc |
| Mounting location | top |
| Net weight | 0.018 kg |
| [Uc] control circuit voltage | 24...48 V DC |
| Environment | |
| Ambient air temperature for storage | -40-80 °C |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Standards | GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, EN 60947-5-1, IEC 60947-5-1 |
| Ambient air temperature for operation | -25-55 °C |
| Product certifications | CSA, UL |
