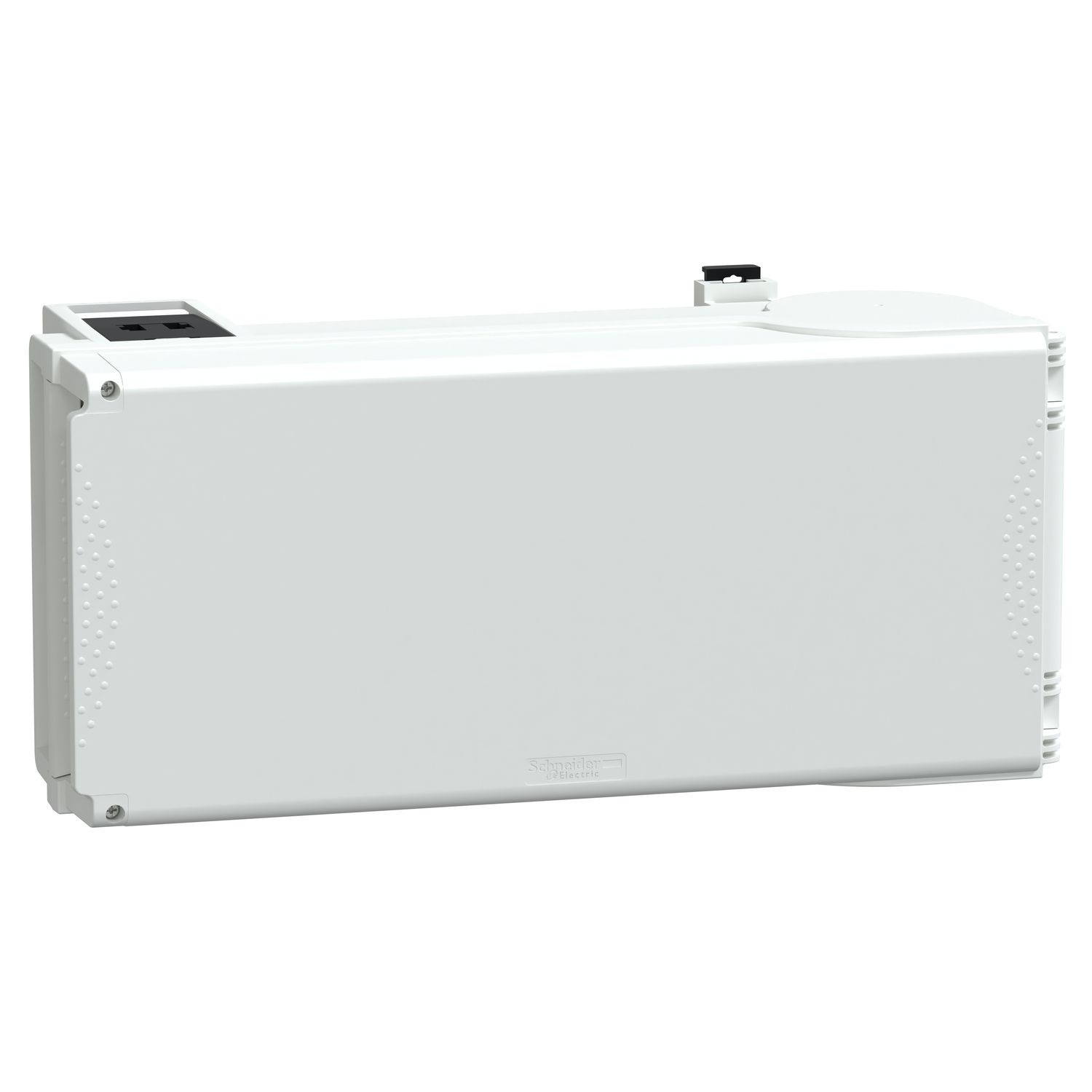

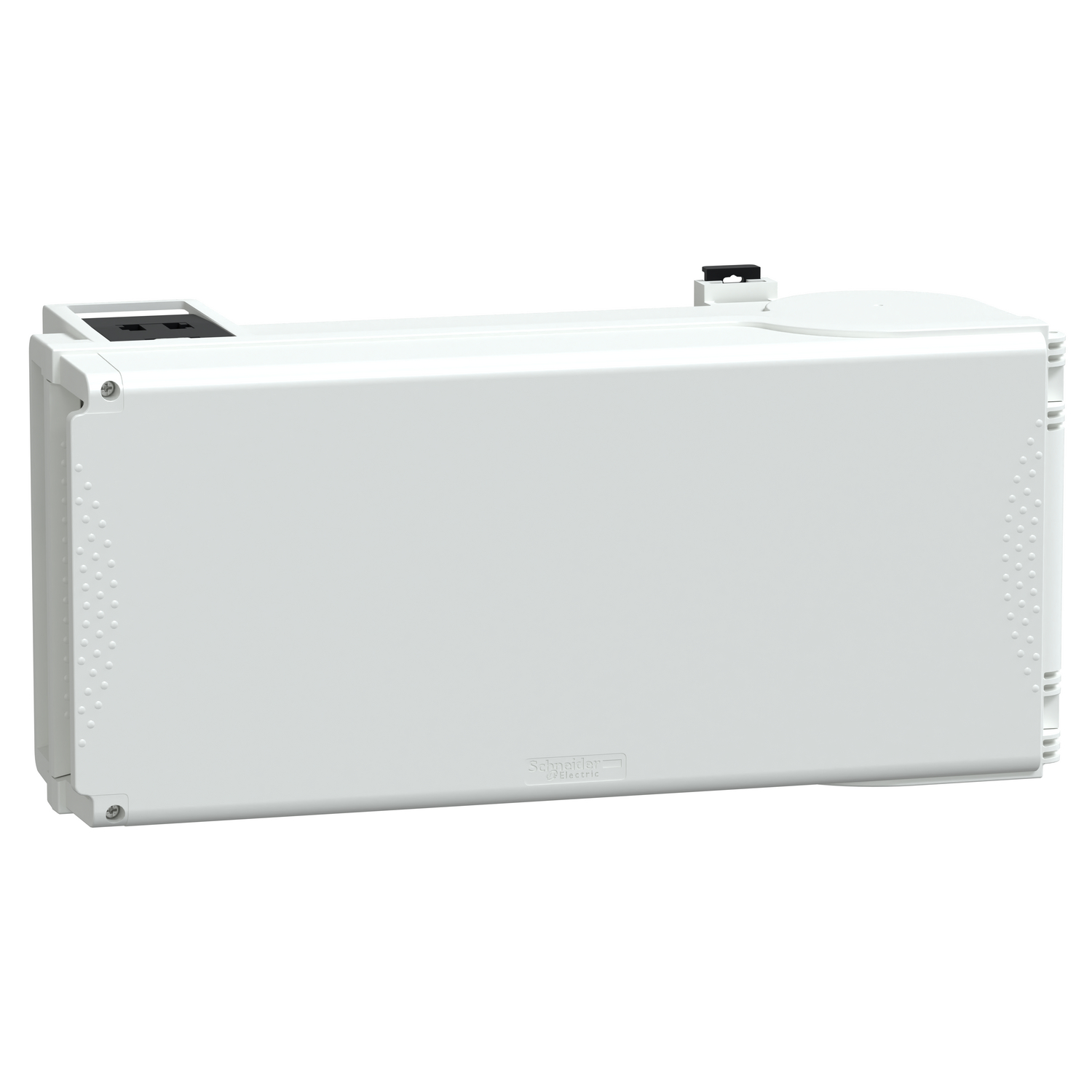

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Fuse type | fuse isolator: BS88 fuse, size A3 conforming to BS, fuse isolator: BS88 fuse, size A1 conforming to BS |
| Colour | white (RAL 9001) |
| Tap-off unit polarity | 3L+N+PE |
| Product compatibility | Canalis KT busbar trunking with KS type plug-in, Canalis KS busbar trunkingplug-in |
| Range | Canalis |
| Product or component type | tap-off unit |
| [Ie] rated operational current | 80-80 A at 35 °C |
| Range compatibility | Canalis KS busbar trunking, Canalis KT busbar trunking |
| Provided equipment | fuse to be ordered separately |
| Range of product | Canalis |
| Mounting mode | plug-in with fixed polarity |
| Complementary | |
| Device application | medium power distribution |
| [Ui] rated insulation voltage | 500 V depending on protective device |
| Depth | 128 mm |
| Width | 444 mm |
| [Ue] rated operational voltage | 230...690 V depending on protective device |
| Body material | plastic |
| Door opening side | right |
| Function available | fuse isolator |
| Electrical connection | copper cable lug - ISO63 50-50 mm² flexible, copper cable lug - ISO63 50-50 mm² rigid |
| Tap-off unit disconnection mode | By opening the door |
| Net weight | 5 kg |
| Standards | IEC 61439-6, IEC 61439-1 |
| [Uimp] rated impulse withstand voltage | 6.8 kV |
| Door opening size | 545.5 mm |
| Height | 202 mm |
| Network frequency | 50/60 Hz |
| Environment | |
| Earthing system | IT, TN-S, TT |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
