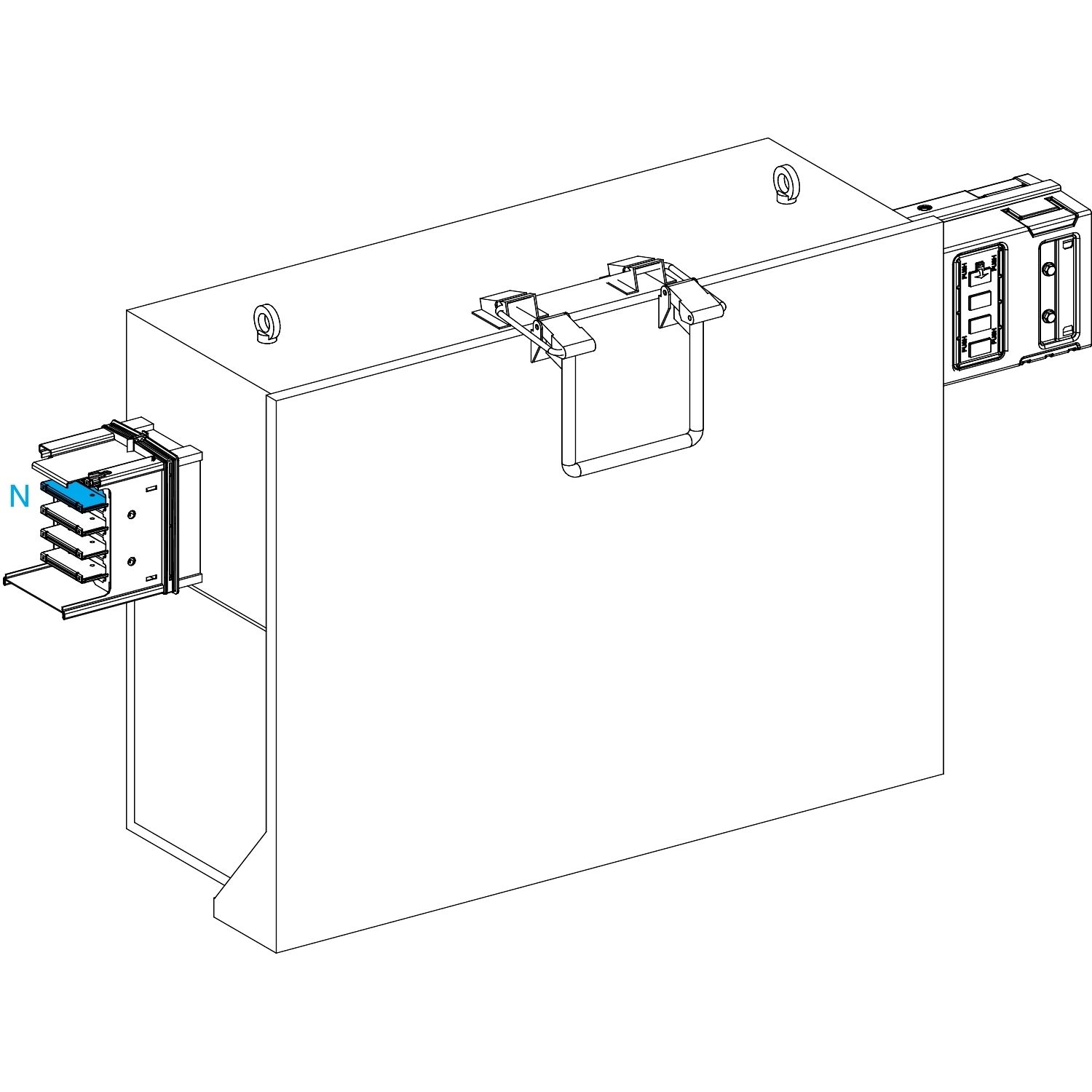

Canalis tap-off unit for KS. It's applied to medium power distribution and TT, IT and TN-S earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 630A at 35 ℃. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L+N+PE. It provided protection for size 3 fuses (Fuse to be ordered separately). It provided tap-off unit disconnection by right opening the door. Canalis KS busbar trunking compatibility with plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Fuse type | fuse isolator: blade type fuse, size 3 conforming to NF or DIN |
| Colour | white (RAL 9001) |
| Tap-off unit polarity | 3L+N+PE |
| Product compatibility | Canalis KS busbar trunkingplug-in |
| Range | Canalis |
| Product or component type | tap-off unit |
| [Ie] rated operational current | 630-630 A at 35 °C |
| Range compatibility | Canalis KS busbar trunking |
| Provided equipment | fuse to be ordered separately |
| Range of product | Canalis |
| Mounting mode | plug-in with fixed polarity |
| Complementary | |
| Device application | medium power distribution |
| [Ui] rated insulation voltage | 500 V depending on protective device |
| Depth | 300 mm |
| Width | 1144.5 mm |
| Body material | metal |
| Door opening side | right |
| Function available | fuse isolator |
| Electrical connection | copper cable lug - ISO40 480-480 mm² rigid, copper cable lug - ISO40 480-480 mm² flexible |
| Tap-off unit disconnection mode | By opening the door |
| Net weight | 59 kg |
| Standards | IEC 61439-6, IEC 61439-1 |
| [Uimp] rated impulse withstand voltage | 6.8 kV |
| Door opening size | 1106.5 mm |
| Height | 611 mm |
| Network frequency | 50/60 Hz |
| Environment | |
| Earthing system | IT, TN-S, TT |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
