Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | KS |
| Tap-off unit polarity | 3L+N+PE |
| [Ie] rated operational current | 160 A at 35 °C |
| Range | Canalis |
| Product name | KS |

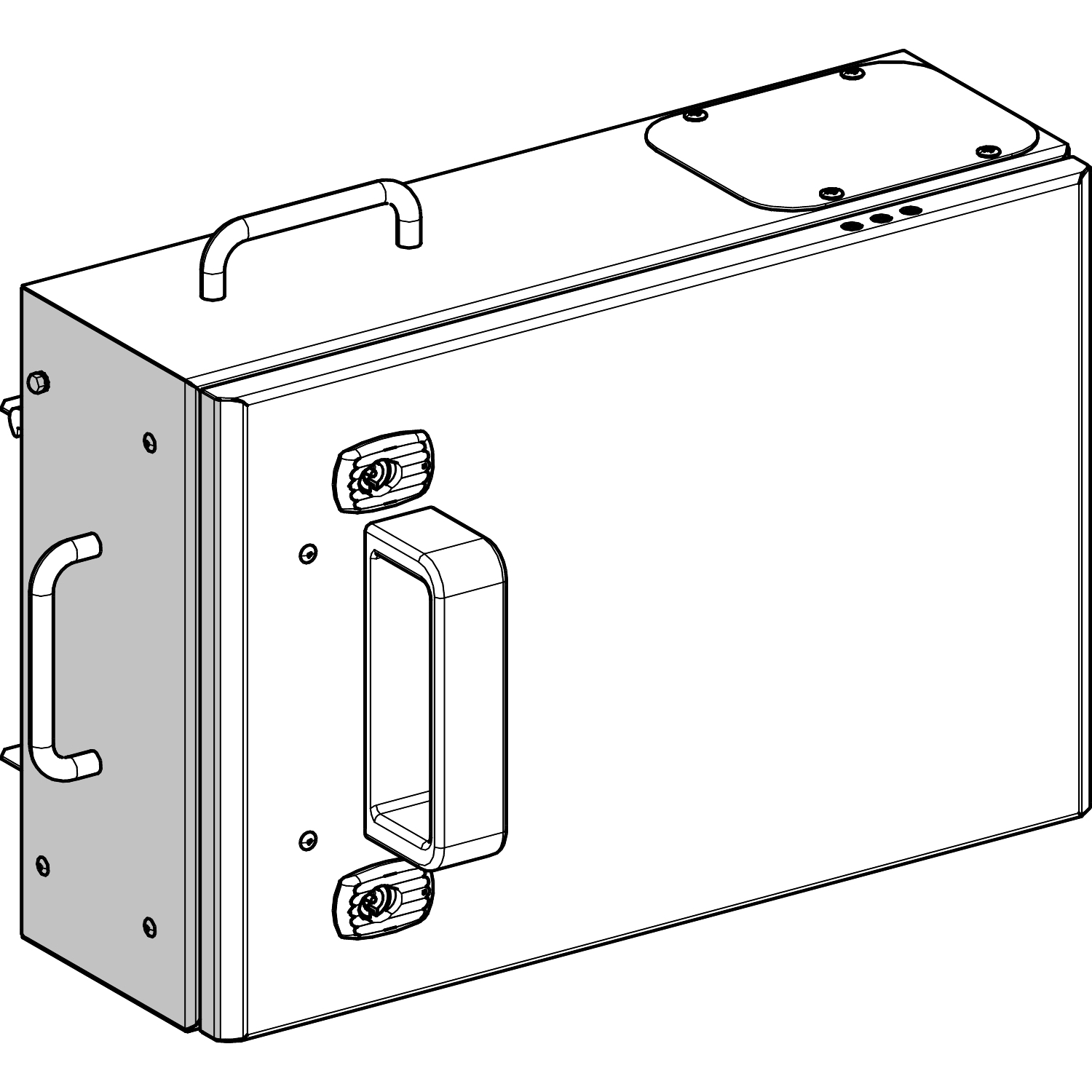

| Product or component type | empty tap-off unit |
| Range of product | Canalis |
| Complementary | |
| Device application | low power distribution |
| [Ui] rated insulation voltage | 690 V depending on protective device |
| Depth | 207 mm |
| Width | 482 mm |
| Colour | white (RAL 9001) |
| [Ue] rated operational voltage | 230...690 V depending on protective device |
| Body material | metal |
| Door opening side | right |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Tap-off unit disconnection mode | By drawing out |
| Net weight | 8 kg |
| Tap-off unit connector type | with fixed polarity |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Standards | IEC 61439-6, IEC 60439-2 |
| Door opening size | 630.5 mm |
| Height | 332 mm |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Network frequency | 50/60 Hz |
| Environment | |
| Earthing system | IT - tap-off unit, TN-S - tap-off unit, TT - tap-off unit, IT - busbar trunking, TN-C - busbar trunking, TN-S - busbar trunking, TT - busbar trunking |
