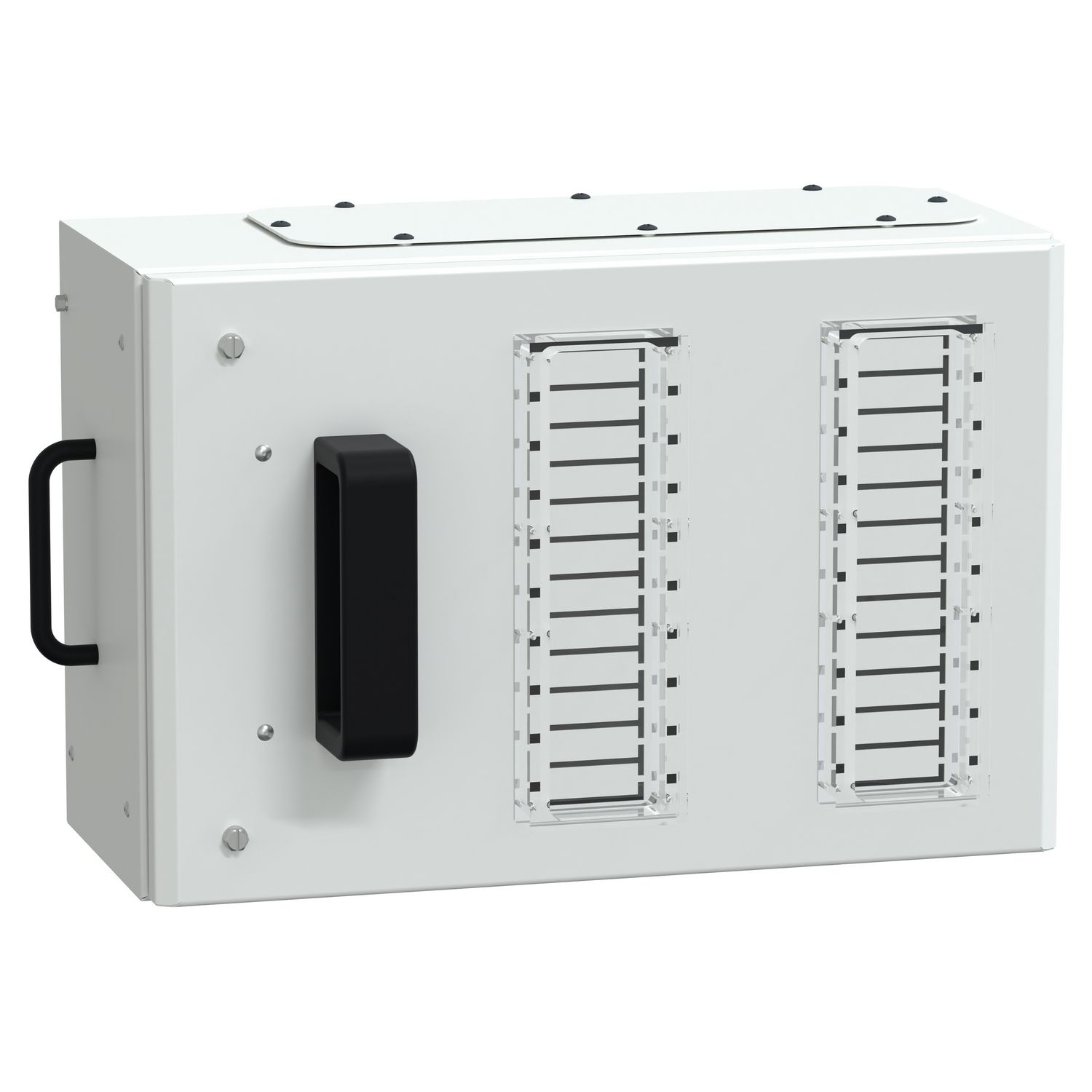

Canalis tap-off unit for KS. It's applied to medium power distribution and TT, IT and TN-S earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 160A. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L+N+PE. It provided protection for miniature circuit breaker (MCB) (Circuit breaker to be ordered separately). It provided tap-off unit disconnection by drawing out with down door/cover opening. Canalis KS busbar trunking compatibility with plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Colour | white (RAL 9001) |
| Product compatibility | Canalis KS busbar trunkingplug-in |
| Range | Canalis |
| Protection type | circuit breaker: miniature circuit breaker (MCB) |
| Range of product | Canalis |
| Tap-off unit polarity | 3L+N+PE |
| Product or component type | tap-off unit |
| [Ie] rated operational current | 160-160 A |
| Range compatibility | Canalis KS busbar trunking |
| Mounting mode | plug-in with fixed polarity |
| Complementary | |
| Device application | medium power distribution |
| [Ue] rated operational voltage | 230...690 V depending on protective device |
| Body material | metal |
| Door opening side | down |
| Function available | circuit breaker |
| Electrical connection | lugs - ISO50 50-50 mm² rigid, lugs - ISO50 35-35 mm² flexible |
| 18 mm pitches | 24 |
| Standards | IEC 61439-1, IEC 61439-6 |
| [Uimp] rated impulse withstand voltage | 6.8 kV |
| Height | 303 mm |
| [Ui] rated insulation voltage | 690 V depending on protective device, 500 V depending on protective device, 400 V depending on protective device |
| Depth | 308 mm |
| Width | 494 mm |
| Tap-off unit disconnection mode | By drawing out |
| Net weight | 10.69 kg |
| Provided equipment | 4 DIN rail, blanking plate, circuit-breaker to be ordered separately |
| Door opening size | 650 mm |
| Network frequency | 50/60 Hz |
| Environment | |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Earthing system | IT, TN-S, TT |
