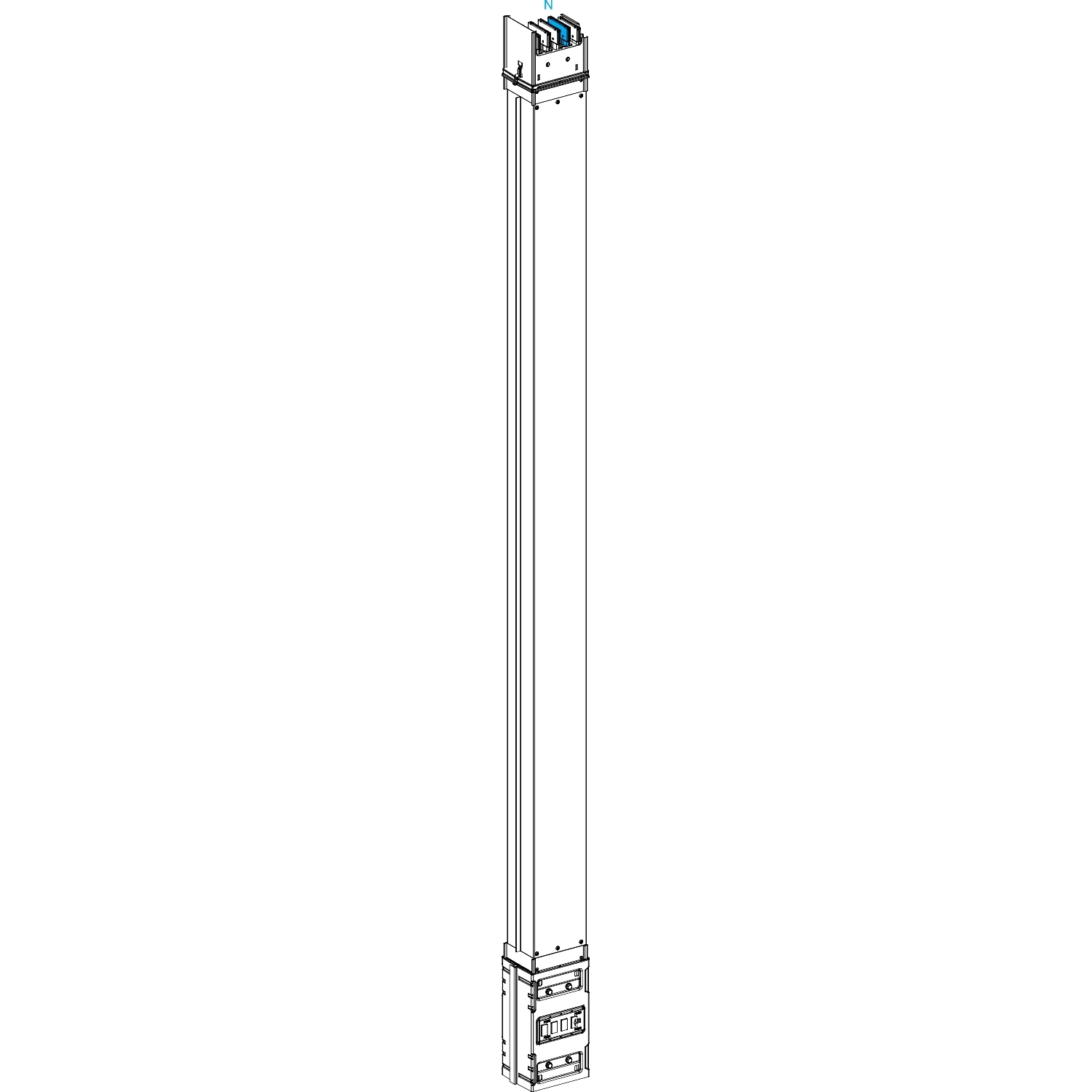

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Length | 0.5-1.9 m |
| Device short name | KSA |
| Colour | white (RAL 9001) |
| Number of tap-off outlets | 0 |
| Busbar description | vertical transport length |
| Mounting mode | by screws |
| [Ie] rated operational current | 630 A at 35 °C |
| Dimension type | made to measure |
| Busbar trunking polarity | 3L + N + PE |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Range | Canalis |
| Material | aluminium |
| Product or component type | busbar trunking |
| Product compatibility | Canalis KSA busbar trunking 500-1000 A |
| Offer type | rising main |
| Complementary | |
| [Ipk] rated peak withstand current | 67.5 kA |
| Number of poles | 4 |
| [Ue] rated operational voltage | 230...690 V |
| Width | 113 mm |
| Mounting position | vertical |
| Neutral position | right |
| Electrical connection | lubricated sliding contact |
| Thermal stress limit | 1225000 kA².s |
| Maximum voltage drop | <0.012 V with power factor = 0.7 at 50 Hz with 1A for 100 m long, <0.013 V with power factor = 0.8 at 50 Hz with 1A for 100 m long, <0.013 V with power factor = 0.9 at 50 Hz with 1A for 100 m long, <0.011 V with power factor = 1 at 50 Hz with 1A for 100 m long |
| Net weight | 30 kg |
| Radiated magnetic field | 0.89 µT |
| [Ui] rated insulation voltage | 690 V |
| Linear resistance | Rb1 0.41 mΩ/m 35 °C at Inc with impedance method L - PE 50/60 Hz, Rb1 0.39 mΩ/m 35 °C at Inc with impedance method L-N 50/60 Hz, Rb1 0.32 mΩ/m 35 °C at Inc with impedance method L - L 50/60 Hz, Rb0 0.3 mΩ/m 20 °C at Inc with impedance method L - PE 50/60 Hz, Rb0 0.28 mΩ/m 20 °C at Inc with impedance method L-N 50/60 Hz, Rb0 0.23 mΩ/m 20 °C at Inc with impedance method L - L 50/60 Hz, Z0 0.75 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, X0 0.55 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, R0 0.51 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, Z0 0.57 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, X0 0.35 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, R0 0.45 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, Z1 0.15 mΩ/m 35 °C at Inc L 50/60 Hz, R1 0.13 mΩ/m 35 °C at Inc L 50/60 Hz, R20 0.09 mΩ/m 20 °C L 50/60 Hz, Xb 0.24 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - PE 50/60 Hz, Xb 0.2 mΩ/m 35 °C at Inc and 50 Hz with impedance method L-N 50/60 Hz, Xb 0.14 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - L 50/60 Hz, 0.07 mΩ/m 20 °C PE 50/60 Hz, X1 0.07 mΩ/m 35 °C at Inc L 50/60 Hz |
| Standards | IEC 61439-6, IEC 61439-1 |
| THDI | 33-100 % 400 A, 15-33 % 500 A, 0-15 % 630 A |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Height | 146-146 mm |
| Network frequency | 50/60 Hz |
| [Icw] rated short-time withstand current | 32.1 kA |
| Environment | |
| Ambient air temperature for operation | 55-55 °C (with derating factor), 35-35 °C (without derating) |
| IK degree of protection | IK08 conforming to IEC 62262 |
