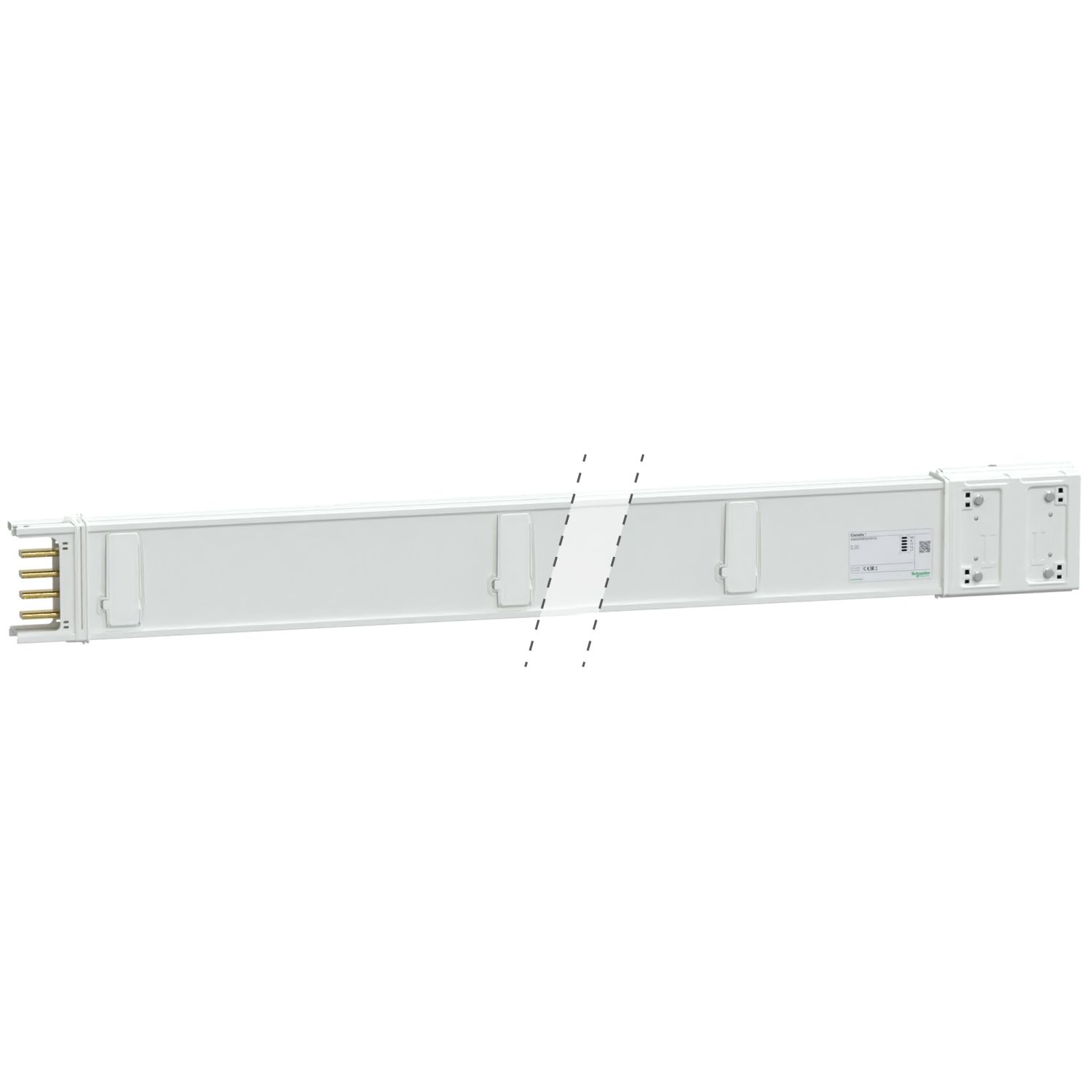

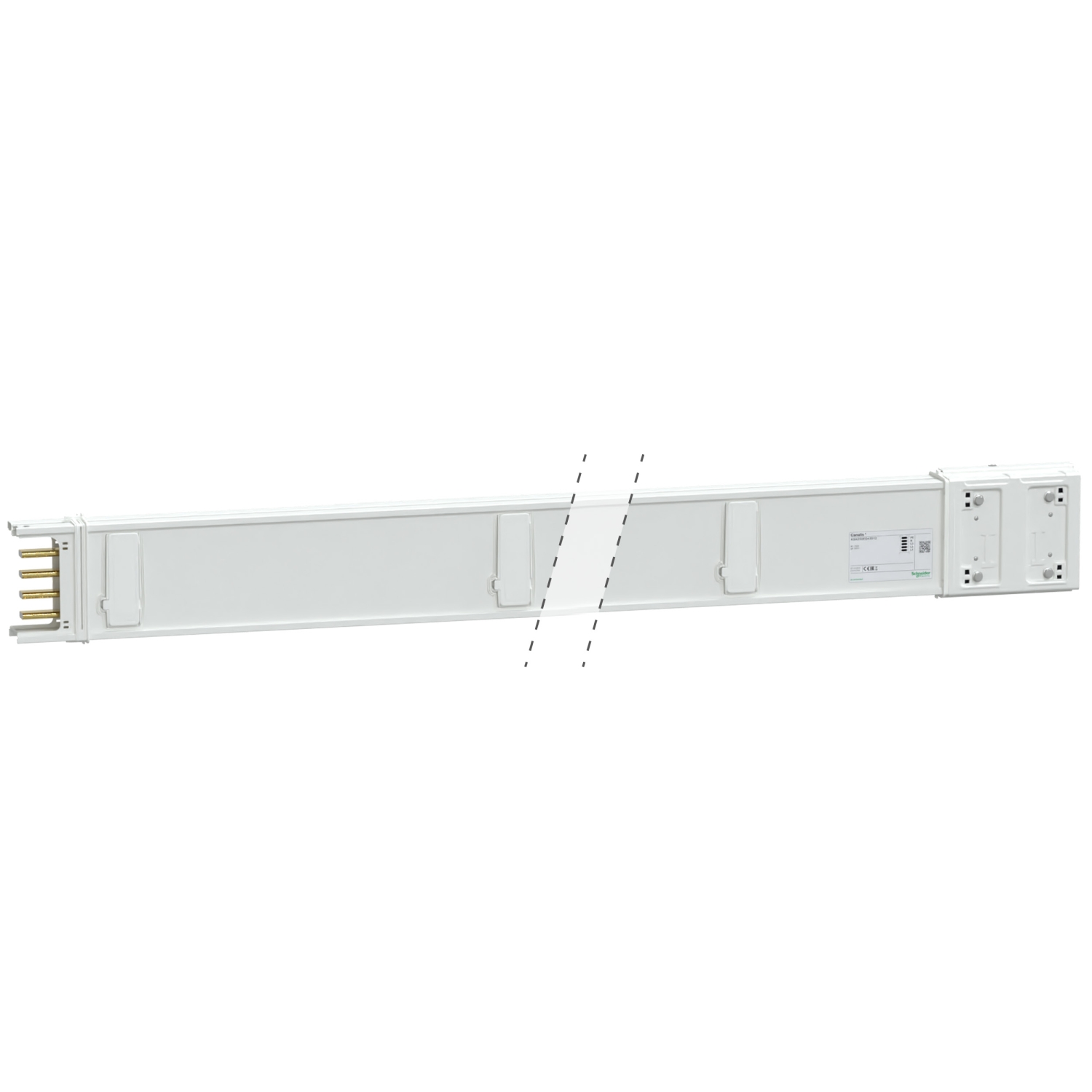

Part of the Canalis KSA system. It consists of a 3m 100A Distribution element equipped with 12 outlets. All run components are delivered with a jointing unit.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Length | 3-3 m |
| Device short name | KSA |
| Colour | white (RAL 9001) |
| Number of tap-off outlets | 12 |
| Busbar description | horizontal distribution length |
| Mounting mode | by screws |
| [Ie] rated operational current | 100 A at 35 °C |
| Dimension type | fix |
| Busbar trunking polarity | 3L + N + PE |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Range | Canalis |
| Material | aluminium |
| Product or component type | busbar trunking |
| Product compatibility | Canalis KSA busbar trunking 100-250 A |
| Offer type | classic |
| Complementary | |
| [Ipk] rated peak withstand current | 15.7 kA |
| Number of poles | 4 |
| [Ue] rated operational voltage | 230...690 V |
| Width | 54 mm |
| Mounting position | horizontal |
| Neutral position | up |
| Electrical connection | lubricated sliding contact |
| Thermal stress limit | 6800 kA².s |
| Maximum voltage drop | <0.106 V with power factor = 0.7 at 50 Hz with 1A for 100 m long, <0.118 V with power factor = 0.8 at 50 Hz with 1A for 100 m long, <0.13 V with power factor = 0.9 at 50 Hz with 1A for 100 m long, <0.138 V with power factor = 1 at 50 Hz with 1A for 100 m long |
| Net weight | 12.1 kg |
| Radiated magnetic field | 0.22 µT |
| Tap-off unit interval | 500 mm |
| [Ui] rated insulation voltage | 690 V |
| Linear resistance | Xb 0.58 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - PE 50/60 Hz, Xb 0.31 mΩ/m 35 °C at Inc and 50 Hz with impedance method L - L 50/60 Hz, Rb1 2.38 mΩ/m 35 °C at Inc with impedance method L - PE 50/60 Hz, Rb1 3.21 mΩ/m 35 °C at Inc with impedance method L-N 50/60 Hz, Rb1 3.19 mΩ/m 35 °C at Inc with impedance method L - L 50/60 Hz, Rb0 1.87 mΩ/m 20 °C at Inc with impedance method L - PE 50/60 Hz, Rb0 2.44 mΩ/m 20 °C at Inc with impedance method L-N 50/60 Hz, Rb0 2.4 mΩ/m 20 °C at Inc with impedance method L - L 50/60 Hz, Z0 2.96 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, X0 1.11 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, R0 2.75 mΩ/m 20 °C symmetrical components method L - PE 50/60 Hz, Z0 4.94 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, X0 0.95 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, R0 4.85 mΩ/m 20 °C symmetrical components method L-N 50/60 Hz, 0.42 mΩ/m 20 °C PE 50/60 Hz, Z1 1.6 mΩ/m 35 °C at Inc L 50/60 Hz, X1 0.15 mΩ/m 35 °C at Inc L 50/60 Hz, R1 1.59 mΩ/m 35 °C at Inc L 50/60 Hz, R20 1.19 mΩ/m 20 °C L 50/60 Hz |
| Standards | IEC 61439-6, IEC 61439-1 |
| THDI | 33-100 % 63 A, 15-33 % 80 A, 0-15 % 100 A |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Height | 146-146 mm |
| Network frequency | 50/60 Hz |
| [Icw] rated short-time withstand current | 2.6 kA |
| Environment | |
| Ambient air temperature for operation | 55-55 °C (with derating factor), 35-35 °C (without derating) |
| IK degree of protection | IK08 conforming to IEC 62262 |
