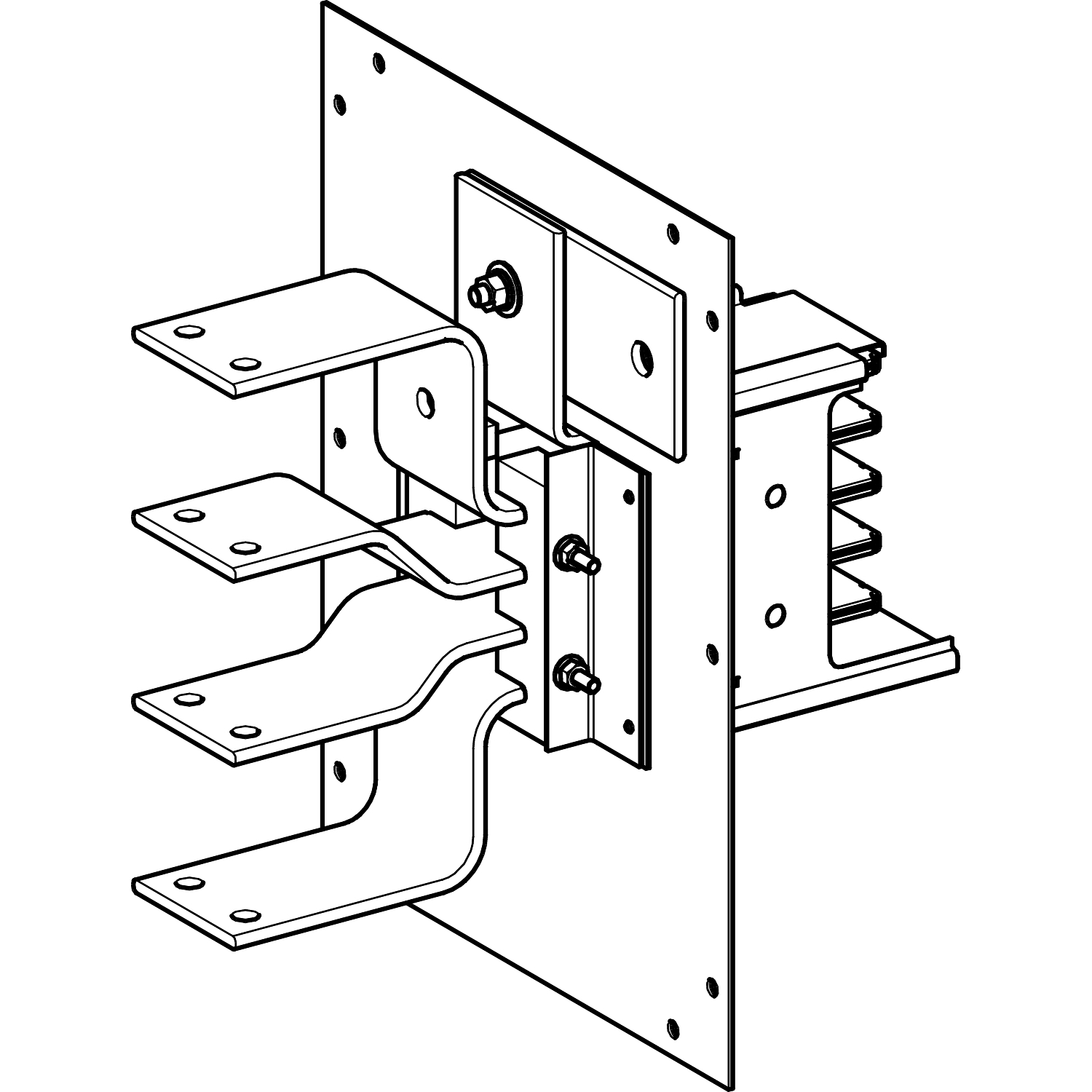

Flange feed unit, Canalis KSA1000, aluminium, 800/1000A, right/left mounting, without line protection, 3L+N+PE, RAL9001

Busbar trunking system for power distribution from 100A up to 1000A

Flexible, scalable, modular and upgradeable system

Easy selection process

Quick, light and easy mounting solution

High protection degree IP55 for all types of buildings

Fool proof system avoids unit being installed or removed under load

All components are halogen free, no toxic emission of any fumes in case of fire

Sustainable by being reusable, recyclable and reduces line losses by 20%

Manufacturer: Schneider Electric

SKU: KSA1000AE4

GTIN: 3606480003493

Catalog

Instruction sheet

Environmental Disclosure

Declaration of conformity

Full Description

Canalis flange feed-unit for KSA. The rated operational voltage is from 230VAC to 690VAC. The rated operational current is 800A and 1000A. The bar material of feed-unit is aluminium with white RAL 9001 surface treatment. Busbar mounting by screws with right/left mounting location, connection by bar terminals. Designed with 1 circuit allowing. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).

Old price: $1,995.40 inc GST

Price: $2,873.38 inc GST

Qty:

Supported cards

Reviews

Only registered users can write reviews

Flange feed unit, Canalis KSA1000, aluminium, 800/1000A, right/left mounting, without line protection, 3L+N+PE, RAL9001

Name: Flange feed unit, Canalis KSA1000, aluminium, 800/1000A, right/left mounting, without line protection, 3L+N+PE, RAL9001
SKU: KSA1000AE4
Price: 2873.38 AUD
Availability: InStock
