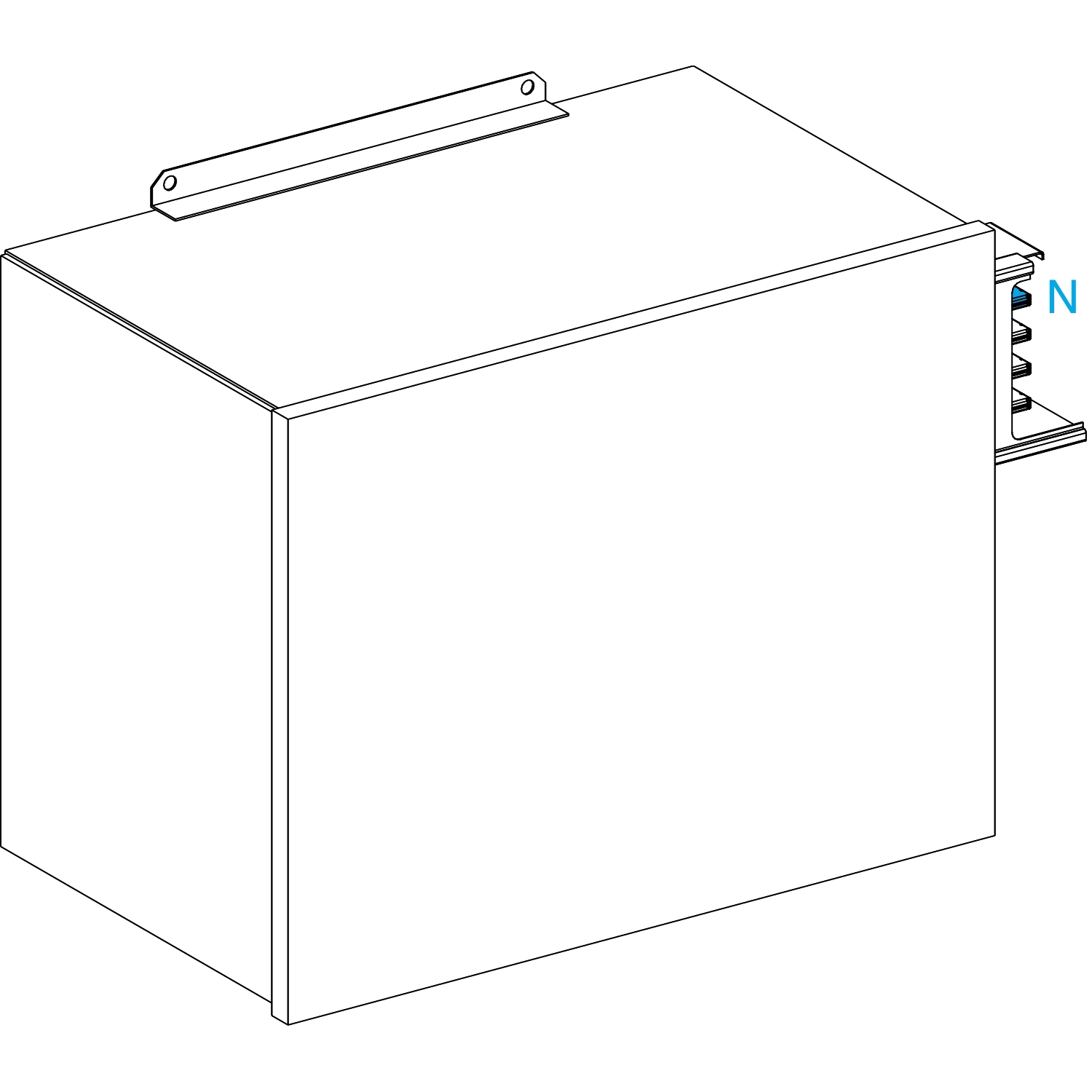

Canalis feed-unit for KSA. It is compatible with FL21 gland plate. The rated operational voltage is from 230VAC to 690VAC. The rated operational current is 800A and 1000A. The bar material of feed-unit is aluminium with white RAL 9001 surface treatment. Busbar mounting by screws with left mounting location, connection by Lug terminals. Designed with 1 circuit allowing. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Ue] rated operational voltage | 230...690 V |
| Device short name | KSA |
| Colour | white (RAL 9001) |
| Protection type | without protection |
| [Ie] rated operational current | 1000 A |
| Busbar trunking polarity | 3L + N + PE |
| Control type | without |
| Range | Canalis |
| Material | aluminium |
| Number of circuits | 1 |
| Product name | KS |
| Product or component type | feed unit |
| Product compatibility | Canalis KSA busbar trunking 500-1000 A |
| Offer type | classic |
| Range of product | Canalis |
| Complementary | |
| Depth | 370 mm |
| Width | 753 mm |
| Provided equipment | end cover |
| Body material | metal |
| Mounting mode | by screws |
| Mounting location | left |
| Net weight | 25 kg |
| Mounting support | busbar |
| Connections - terminals | lug for 300-300 mm² rigid, lug for 240-240 mm² flexible |
| Standards | IEC 61439-6, IEC 61439-1 |
| Height | 457 mm |
| Environment | |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
