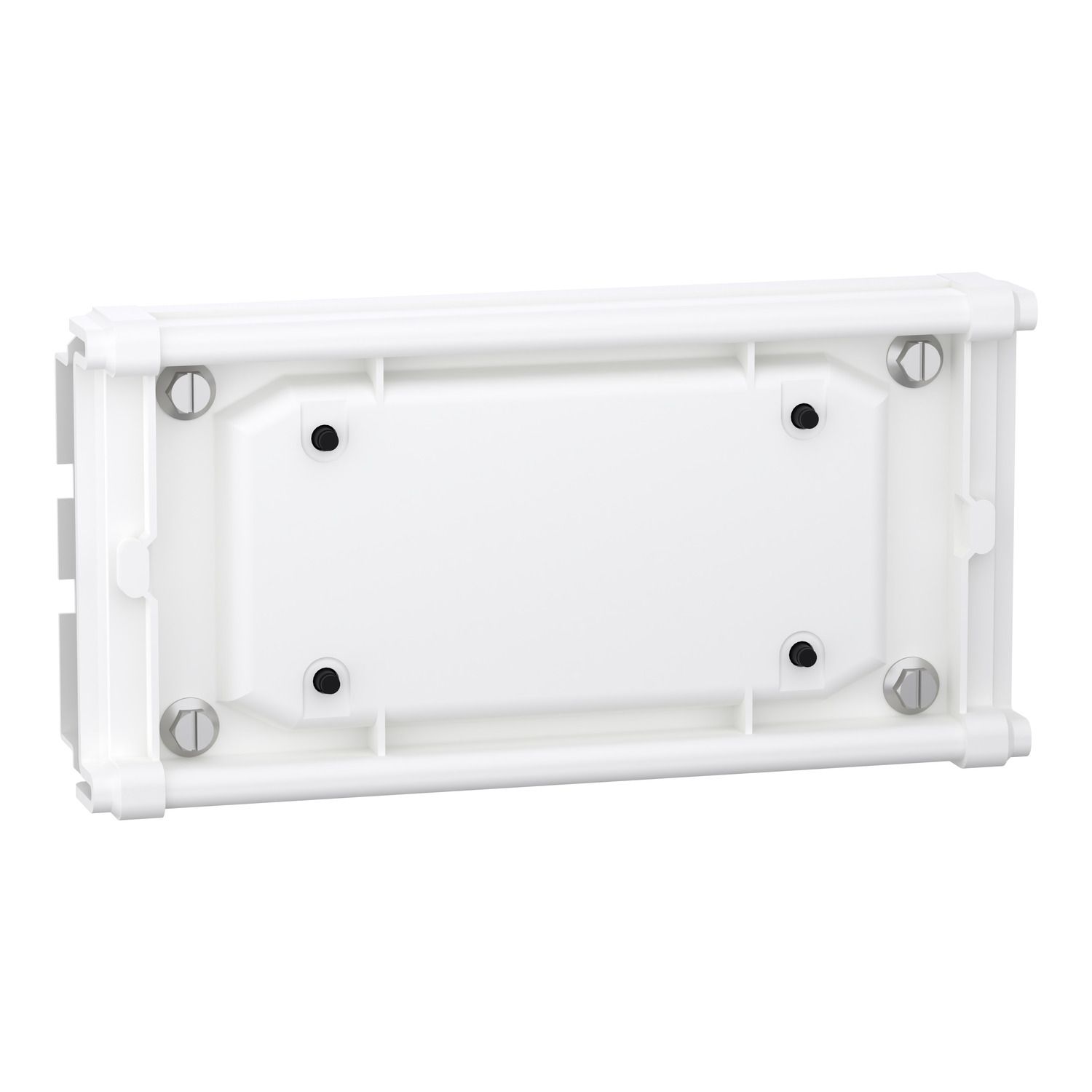

It is an accessory and spare part for Canalis KN offer. It is an electrical and mechanical jointing unit. The rated operational current is 100A to 160A. The operational voltage is from 230VAC to 500VAC 50/60Hz. It provides white RAL 9001 surface treatment. Designed with 1 circuit allowing. It provides IP55 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with EN/IEC 61439-6 standard. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | KN |
| Colour | white (RAL 9001) |
| [Ie] rated operational current | 160 A, 100 A |
| Range | Canalis |
| Product name | KN |
| Product or component type | electrical and mechanical jointing |
| Offer type | spare part |
| Range of product | Canalis |
| Complementary | |
| [Ue] rated operational voltage | 230...500 V |
| Device application | low power distribution |
| Depth | 38 mm |
| Width | 200 mm |
| Control type | without |
| Net weight | 600 g |
| Number of circuits | 1 |
| Height | 100 mm |
| Environment | |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Standards | IEC 60439-2, IEC 61439-6 |
| IK degree of protection | IK08 conforming to IEC 62262 |
