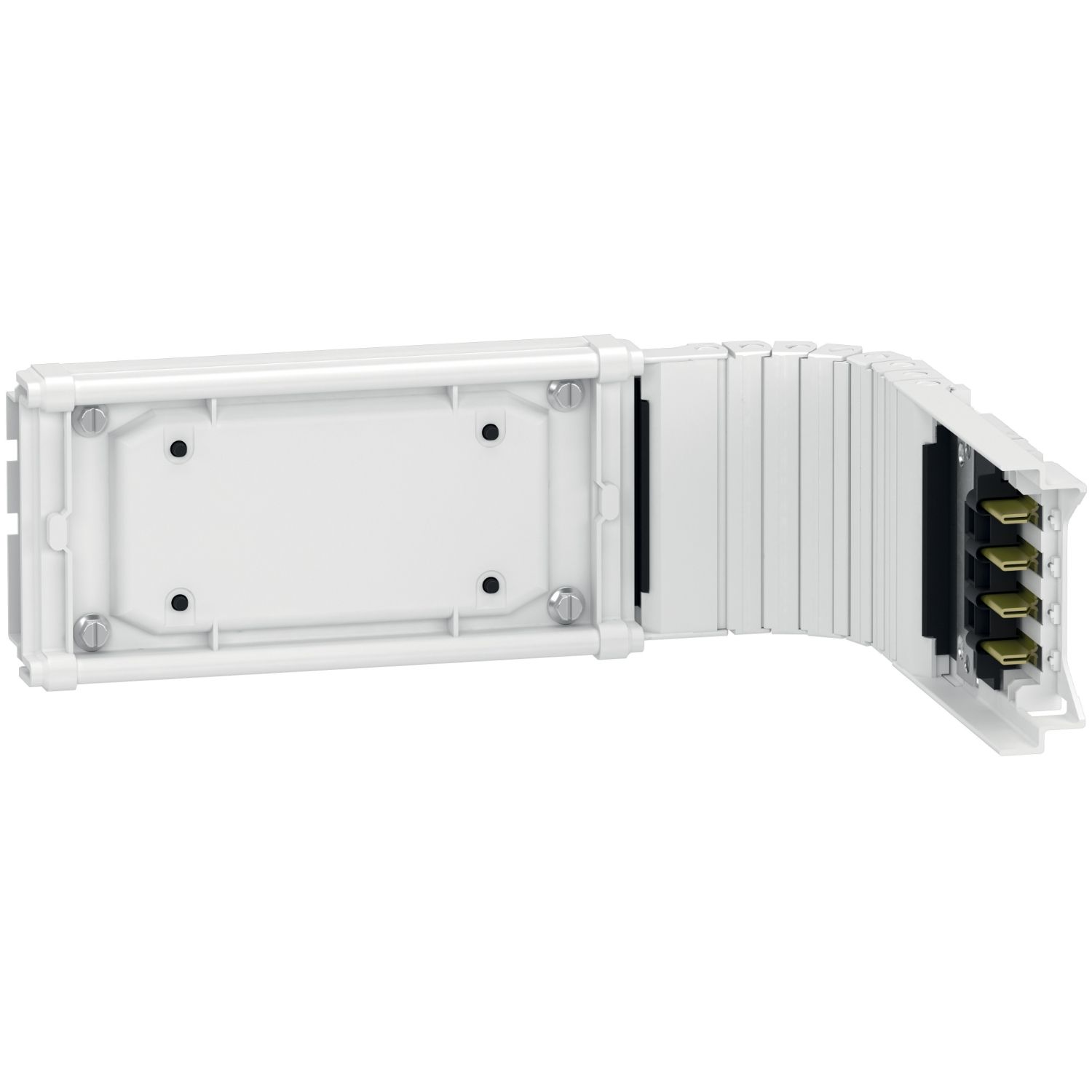

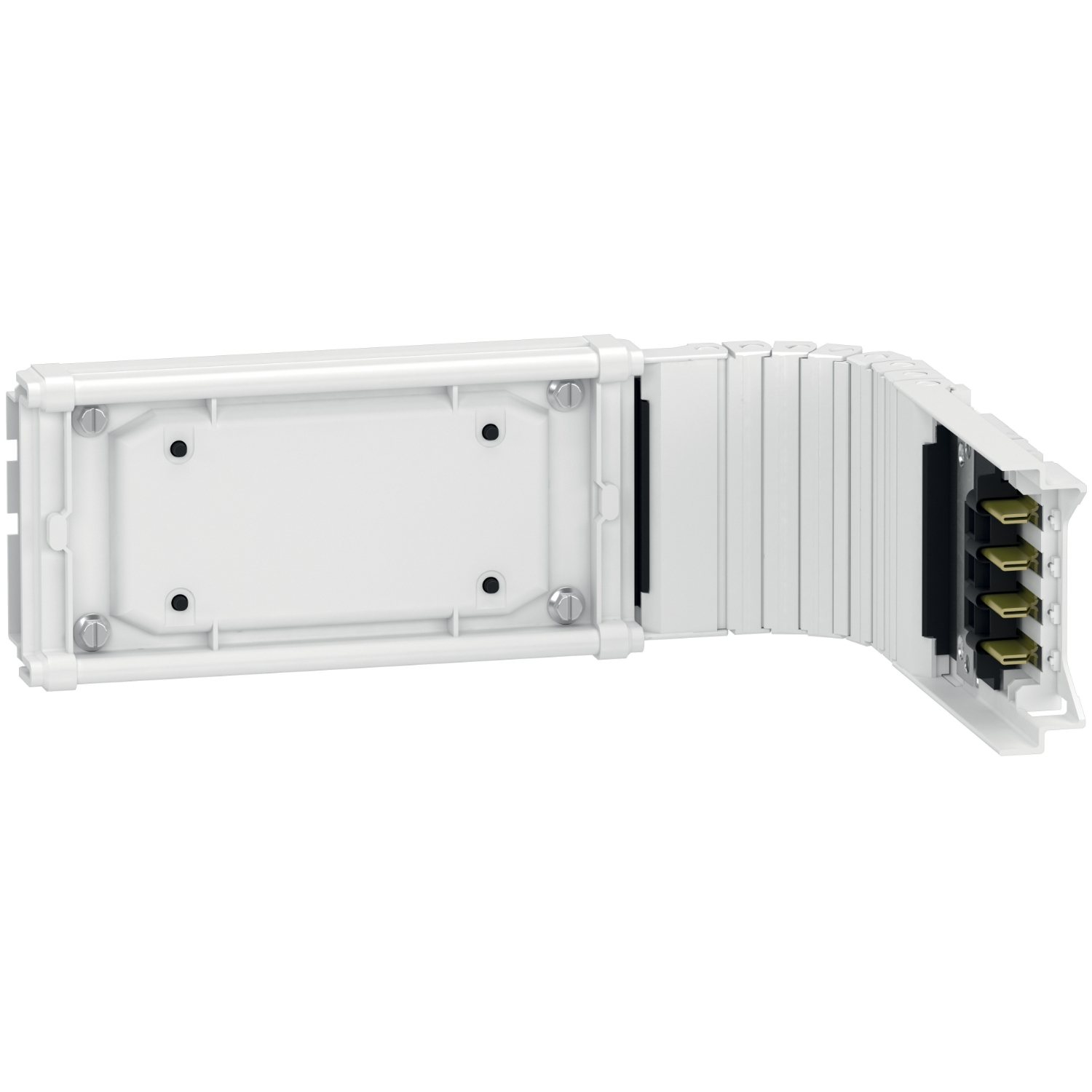

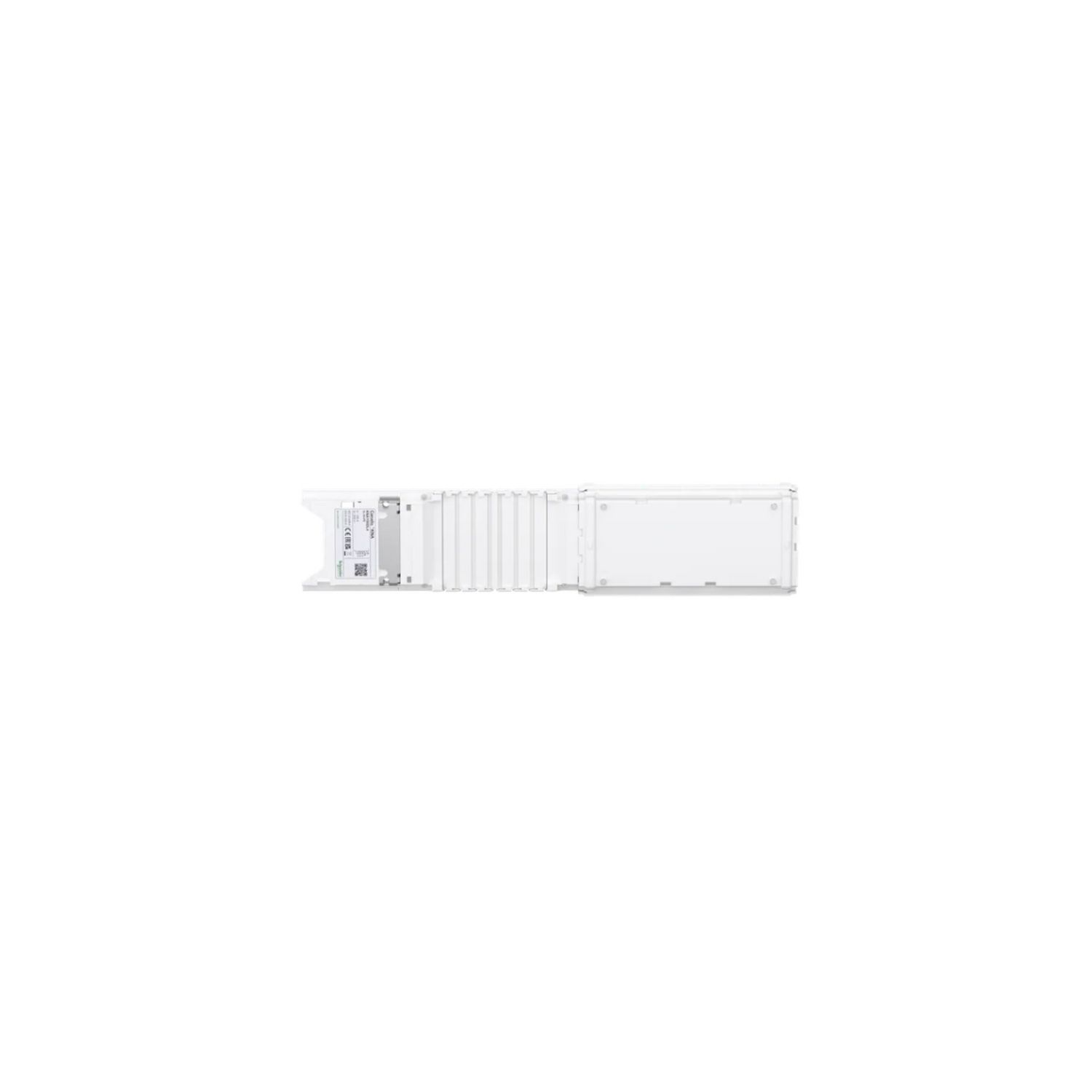

Part of the Canalis KNA system. It consists of a 355 mm 100A Flexible elbow. All run components are delivered with a jointing unit.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Ue] rated operational voltage | 230...500 V |
| Device short name | KNA |
| Device application | low power distribution |
| Colour | white (RAL 9001) |
| Busbar description | flexible elbow |
| [Ie] rated operational current | 100 A at 35 °C |
| Control type | without |
| Range | Canalis |
| Direction change type | 2 dimensions |
| Number of circuits | 1 |
| Product name | KN |
| Product or component type | flexible element |
| Range of product | Canalis |
| Network frequency | 50/60 Hz |
| Complementary | |
| [Ipk] rated peak withstand current | 14 kA |
| Mounting mode | by screws |
| Thermal stress limit | 1980 kA².s |
| Net weight | 1.3 kg |
| Length | 355 mm |
| Maximum radiated magnetic field | 0.106 µT |
| [Ui] rated insulation voltage | 500 V |
| THDI | 33-100 % 63 A, 15-33 % 80 A, 0-15 % 100 A |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Standards | IEC 61439-6, IEC 61439-1 |
| Operating angle | 80-180 ° |
| [Icw] rated short-time withstand current | 1.4 kA |
| Environment | |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Ambient air temperature for operation | 0-35 °C without derating |
| IK degree of protection | IK08 conforming to IEC 62262 |
