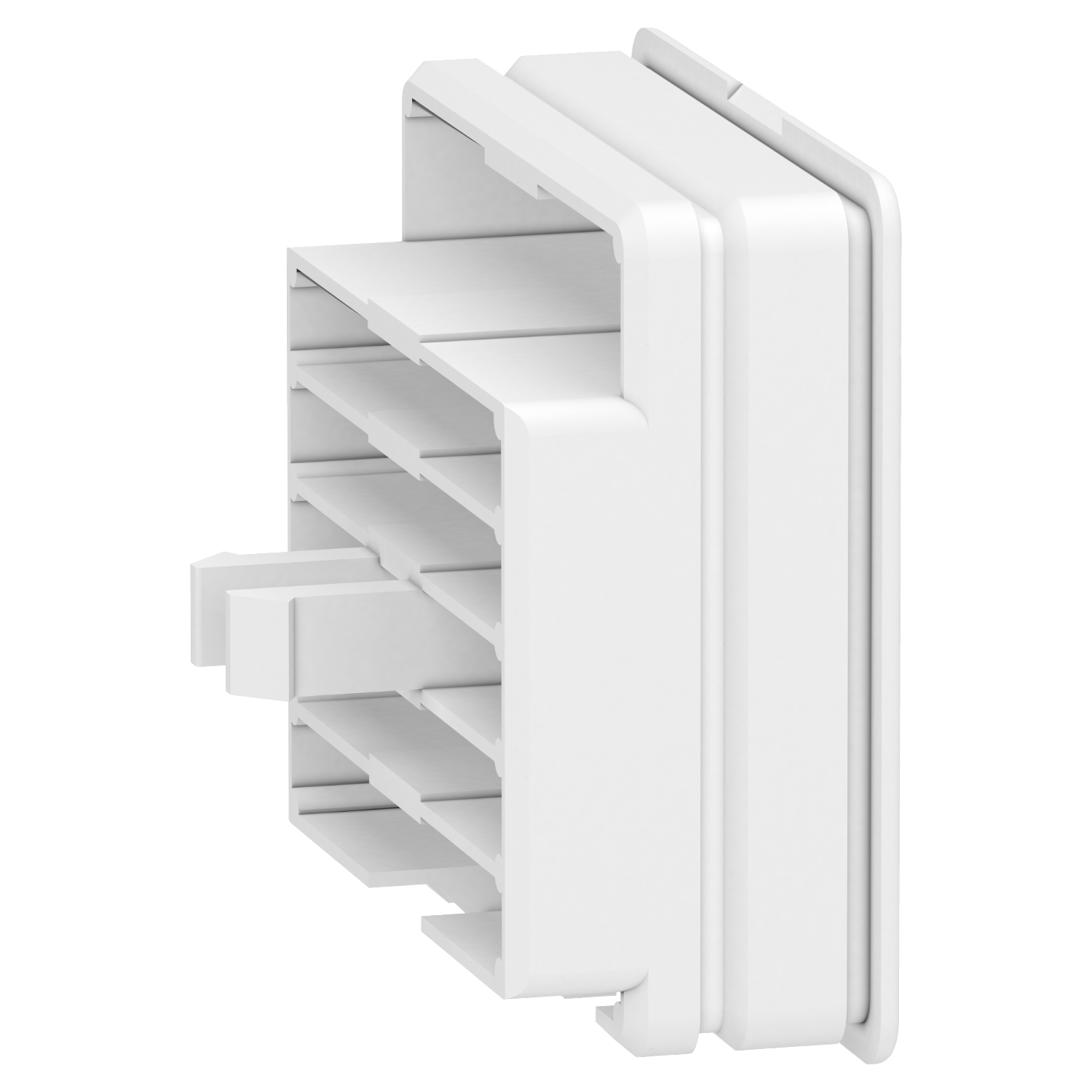

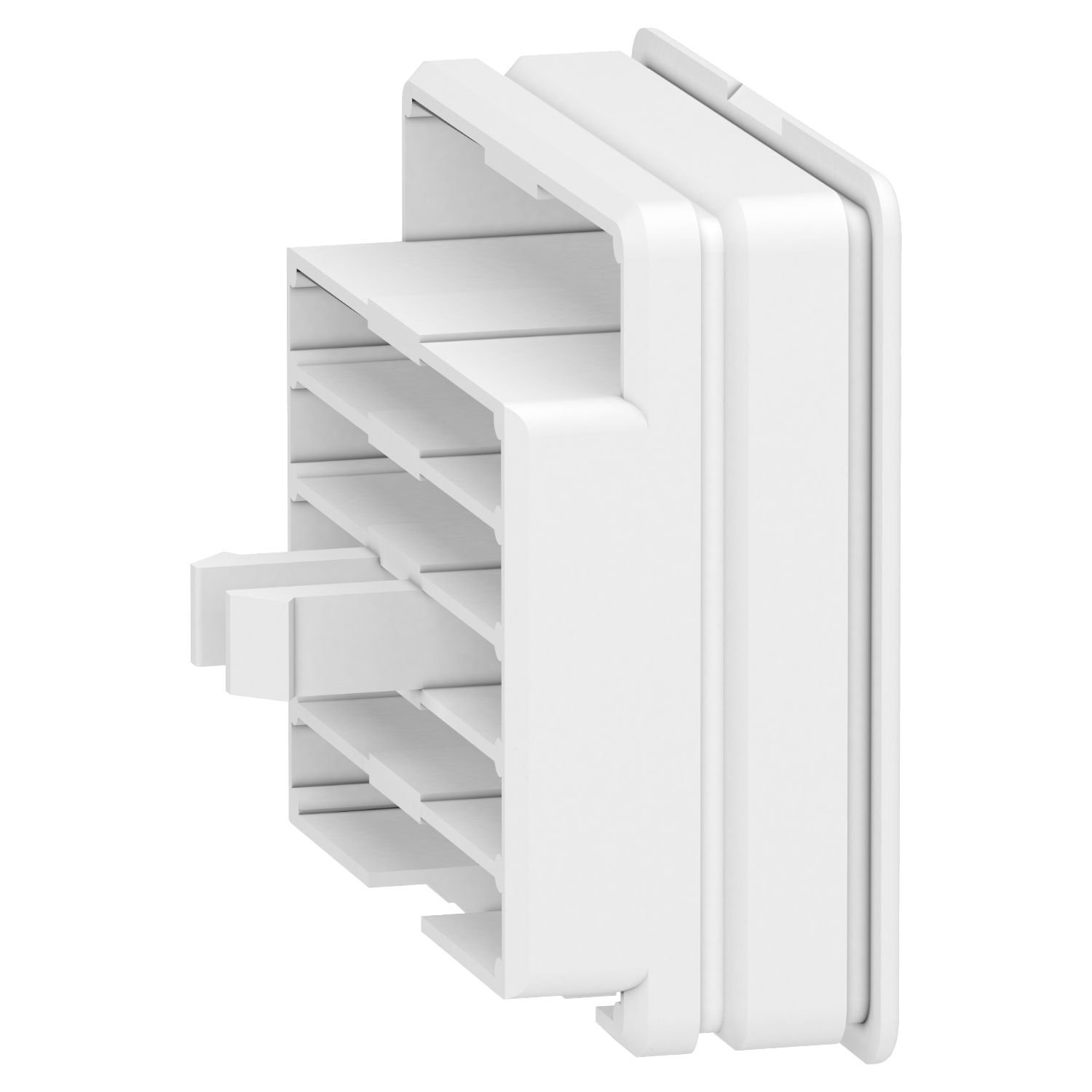

This is a end cover for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. This element is clipped on the end of the line which is not covered by a feed unit. It is a spare part. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | KBB |
| Colour | white (RAL 9003) |
| [Ie] rated operational current | 40 A |
| Range | Canalis |
| Product or component type | end cover |
| Offer type | spare part |
| Range of product | Canalis |
| Complementary | |
| Depth | 30 mm |
| Width | 46 mm |
| Mounting mode | by clips |
| Mounting location | side of trunking |
| Mounting support | busbar |
| Height | 46 mm |
| Environment | |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Standards | IEC 60439-2, IEC 61439-6 |
