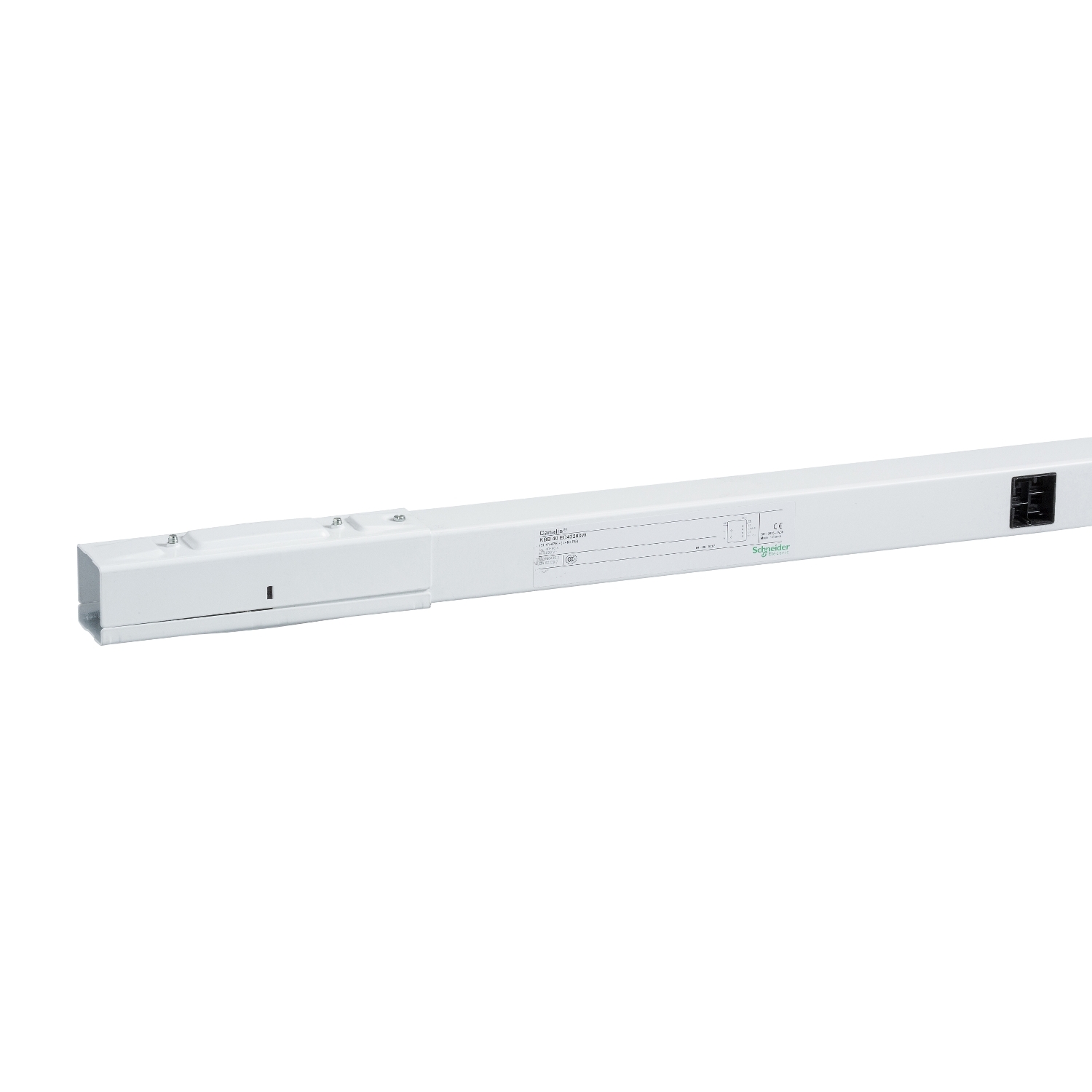

This is a straight length for Canalis KBB busbar trunking. Canalis KBB is designed for lighting and power socket distribution. The rated operational current is 25A at 35°C. The rated operational voltage is from 230VAC to 400VAC 50/60Hz. This straight length is made of 3 tap-off outlets maximum spaced every meter on the main circuit (front), and 2 tap-off outlets maximum on the adjacent circuit (rear). It embeds 2 independent electrical circuits with 3L+N+PE polarity. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. The length is 3m, and the section is 46mm x 46mm. Sold in lots of 6 units. It is made off RAL 9003 white lacquered sheet steel. Canalis KBB is compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | KBB |
| Device application | power socket distribution, lighting |
| Product compatibility | KBB |
| Busbar description | distribution length |
| Mounting mode | by screws |
| Control type | without |
| Range | Canalis |
| Offer type | classic |
| Range of product | Canalis |
| [Ue] rated operational voltage | 230...400 V |
| Number of tap-off outlets | 5 |
| [Ie] rated operational current | 25 A at 35 °C |
| Busbar trunking polarity | 3L + N + PE |
| Number of circuits | 2 |
| Product or component type | straight length |
| Network frequency | 50/60 Hz |
| Complementary | |
| [Ipk] rated peak withstand current | 4.4 kA |
| Colour | white (RAL 9003) |
| Maximum radiated magnetic field | 2 pT |
| Linear resistance | 0.07 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE, 0.35 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N, 0.35 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph, 11.77 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE, 16.59 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N, 16.59 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph, 10.26 mΩ/m Rb0 20 °C impedance method Ph/PE, 18.06 mΩ/m Z0 20 °C symmetrical components method Ph/PE, 5.25 mΩ/m X0 20 °C symmetrical components method Ph/PE, 17.28 mΩ/m R0 20 °C symmetrical components method Ph/PE, 0.8 mΩ/m protective conductor, 13.61 mΩ/m Rb0 20 °C impedance method Ph/N, 13.61 mΩ/m Rb0 20 °C impedance method Ph/Ph, 27.22 mΩ/m Z0 20 °C symmetrical components method Ph/N, 0.85 mΩ/m X0 20 °C symmetrical components method Ph/N, 27.21 mΩ/m R0 20 °C symmetrical components method Ph/N, 8.33 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor, 0.02 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor, 8.3 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor, 6.8 mΩ/m R20 20 °C phase conductor |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Height | 46 mm |
| [Icw] rated short-time withstand current | 0.44 kA |
| Width | 30 mm |
| Thermal stress limit | 195 kA².s |
| Maximum voltage drop | <0.55 V with power factor = 0.7 at 50 Hz with 1A for 100 m long, <0.61 V with power factor = 0.8 at 50 Hz with 1A for 100 m long, <0.67 V with power factor = 0.9 at 50 Hz with 1A for 100 m long, <0.72 V with power factor = 1 at 50 Hz with 1A for 100 m long |
| Net weight | 4.8 kg |
| Length | 3 m |
| [Ui] rated insulation voltage | 690 V |
| THDI | 33-100 % 16 A, 15-33 % 20 A, 0-15 % 25 A |
| Standards | EN/IEC 61439-1, EN/IEC 61439-6 |
| Environment | |
| IP degree of protection | IP55 conforming to EN/IEC 60529 |
| Ambient air temperature for operation | 50-55 °C (85 % of In), 45-50 °C (89 % of In), 40-45 °C (93 % of In), 35-40 °C (96 % of In), 0-35 °C (100 % of In) |
| IK degree of protection | IK06 conforming to EN/IEC 62262 |
