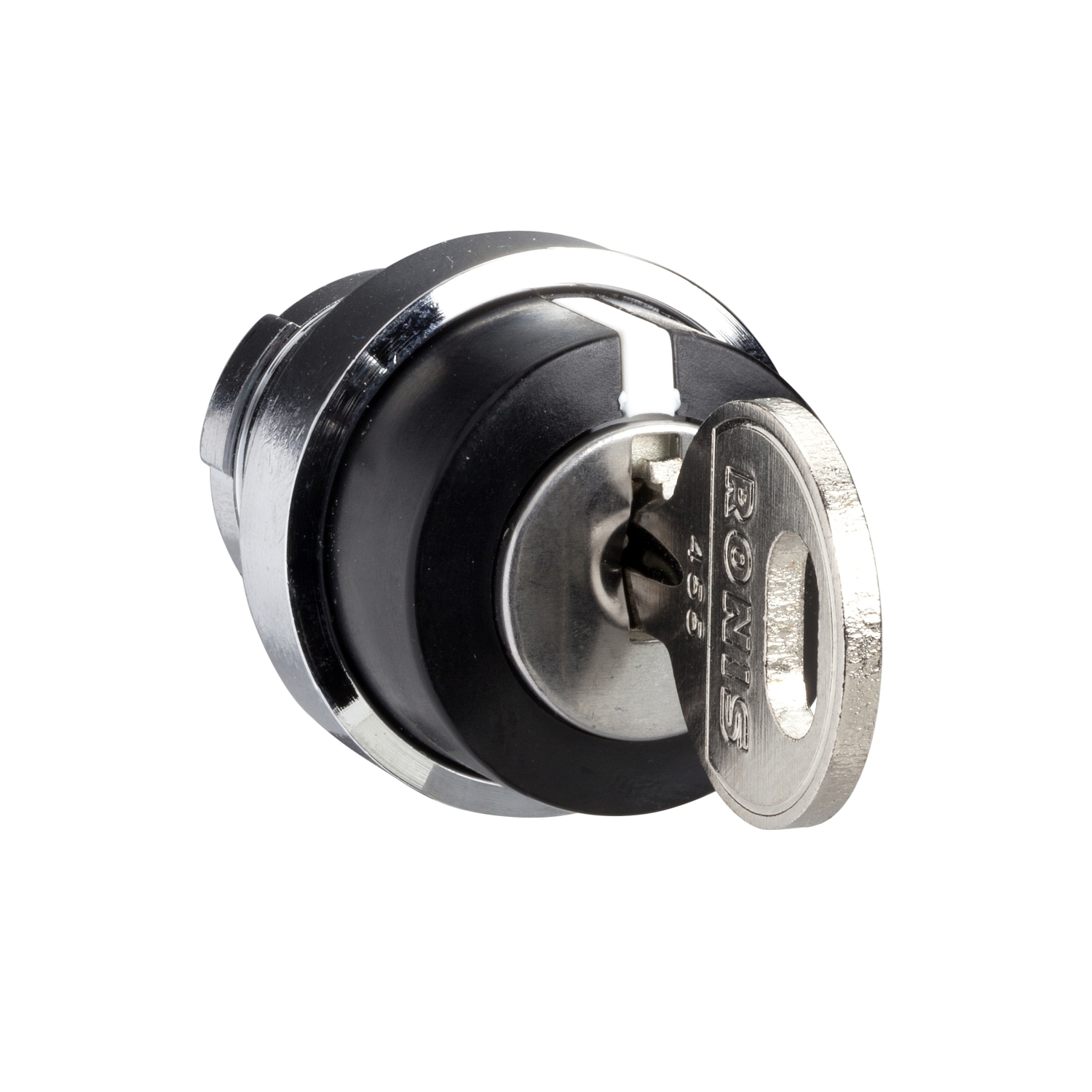

This Harmony KAXZ1S161 is a key-operated head with bezel diameter 28.5mm, metal, key operated Ronis 455. It is part of the range Harmony K diameter 16-22mm rotary cam switches.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Rotary handle padlocking | without |
| Cam switch head type | with bezel Ø 28.5 mm, metal |
| Product compatibility | front mounting bodies 12 and 20 A by Ø 22 mm hole |
| Switching angle | 60 ° |
| Type of operator | key key 455 |
| Component name | KAX |
| Product or component type | cam switch operating head |
| Presentation of legend | with mat black legend |
| Range of product | Harmony Series K |
| Complementary | |
| CAD overall depth | 21 mm |
| CAD overall width | 29 mm |
| Compatibility code | KAX |
| Mechanical durability | 1000000 cycles |
| CAD overall height | 29 mm |
| Net weight | 0.065 kg |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to NF C 20-010, IP65 conforming to IEC 529 |
| Shock resistance | 30 gn conforming to IEC 68-2-27 |
| Vibration resistance | 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz) |
| Ambient air temperature for operation | -25-55 °C |
