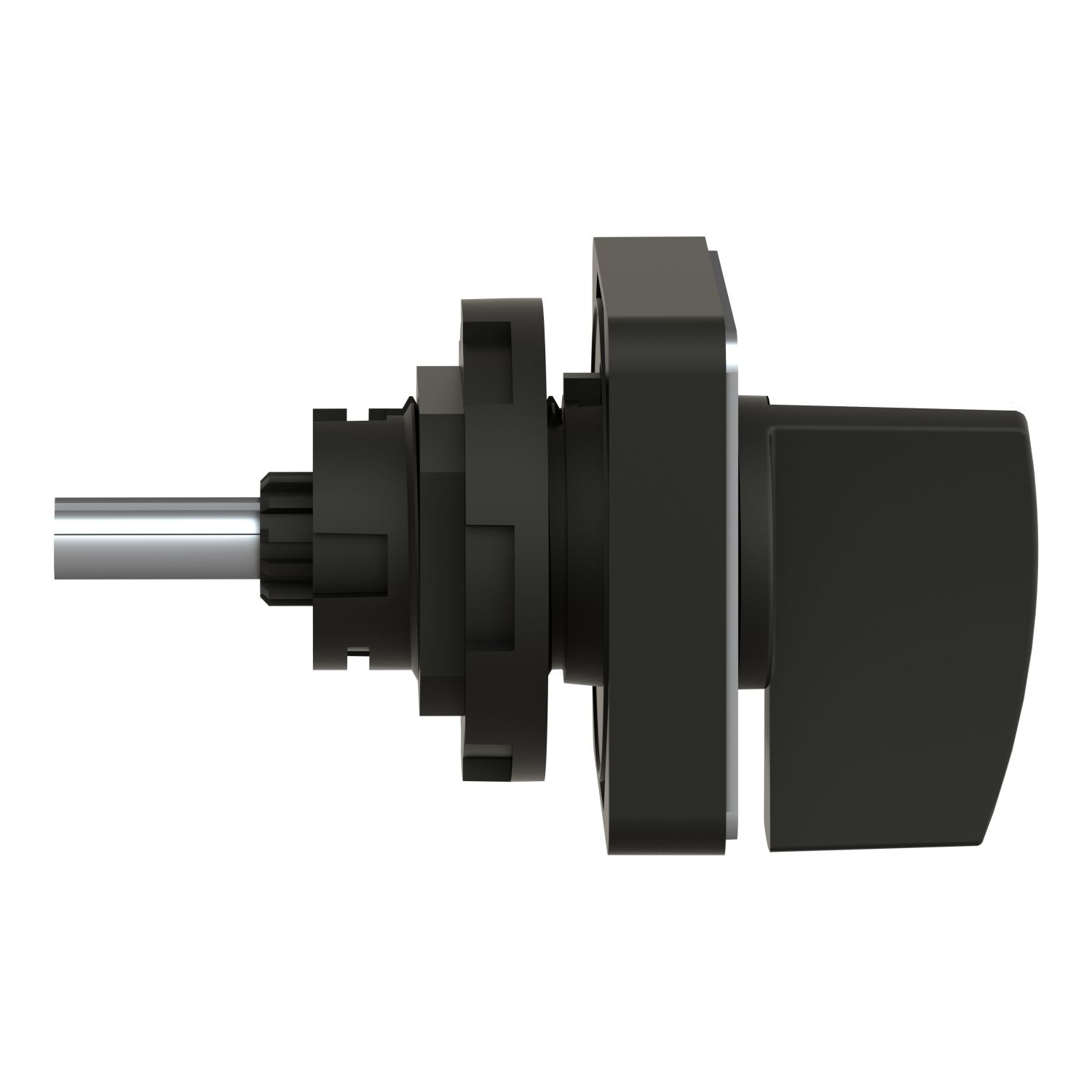

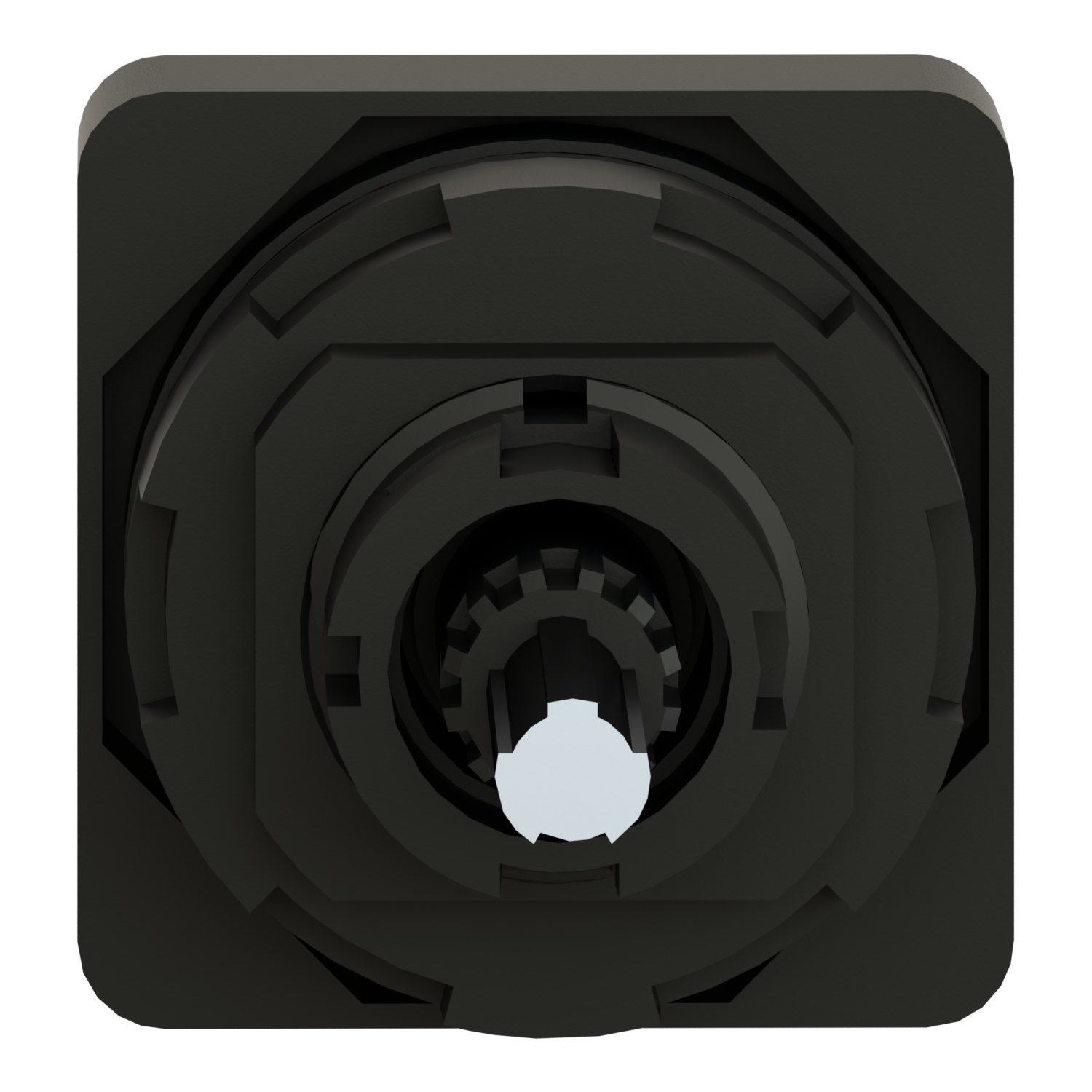

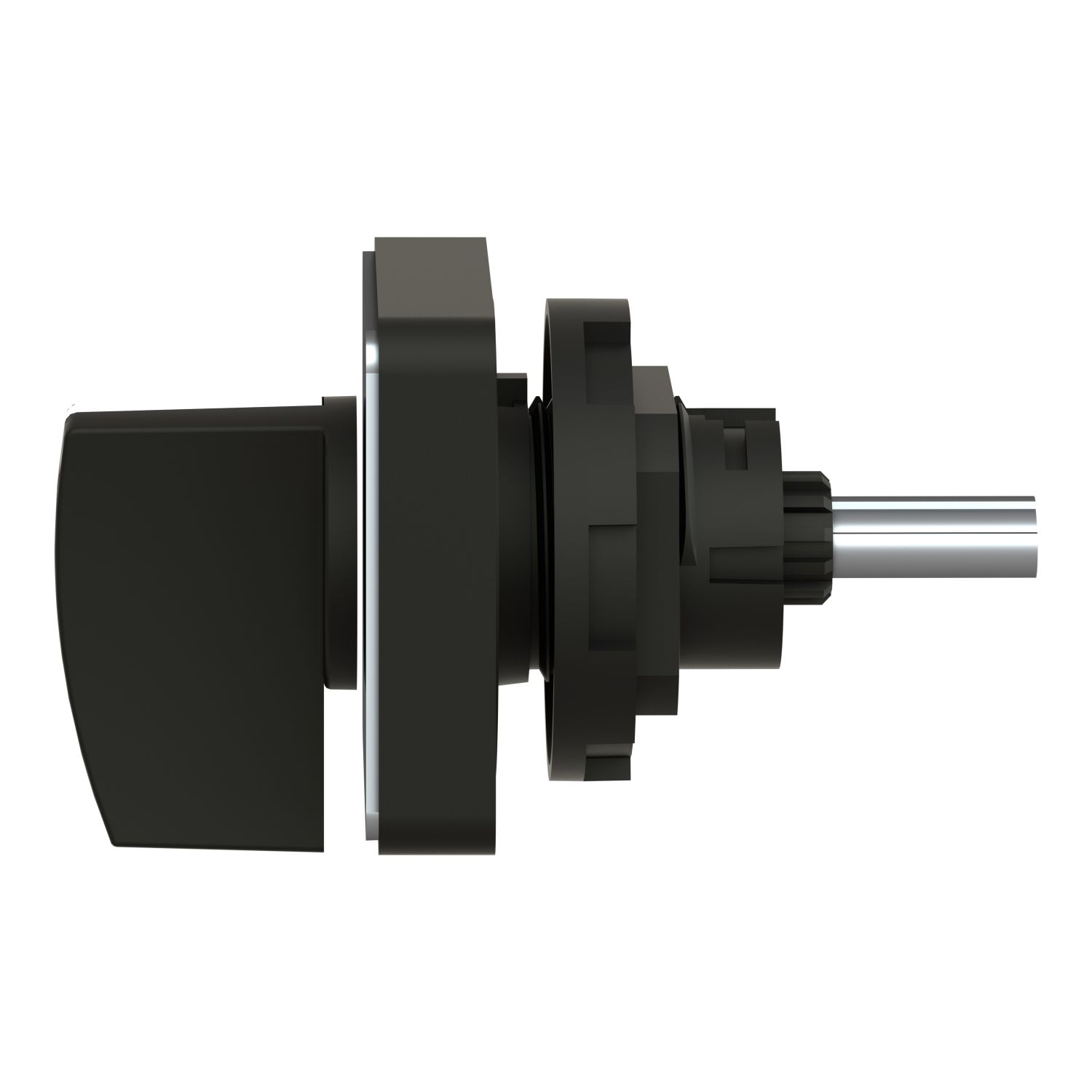

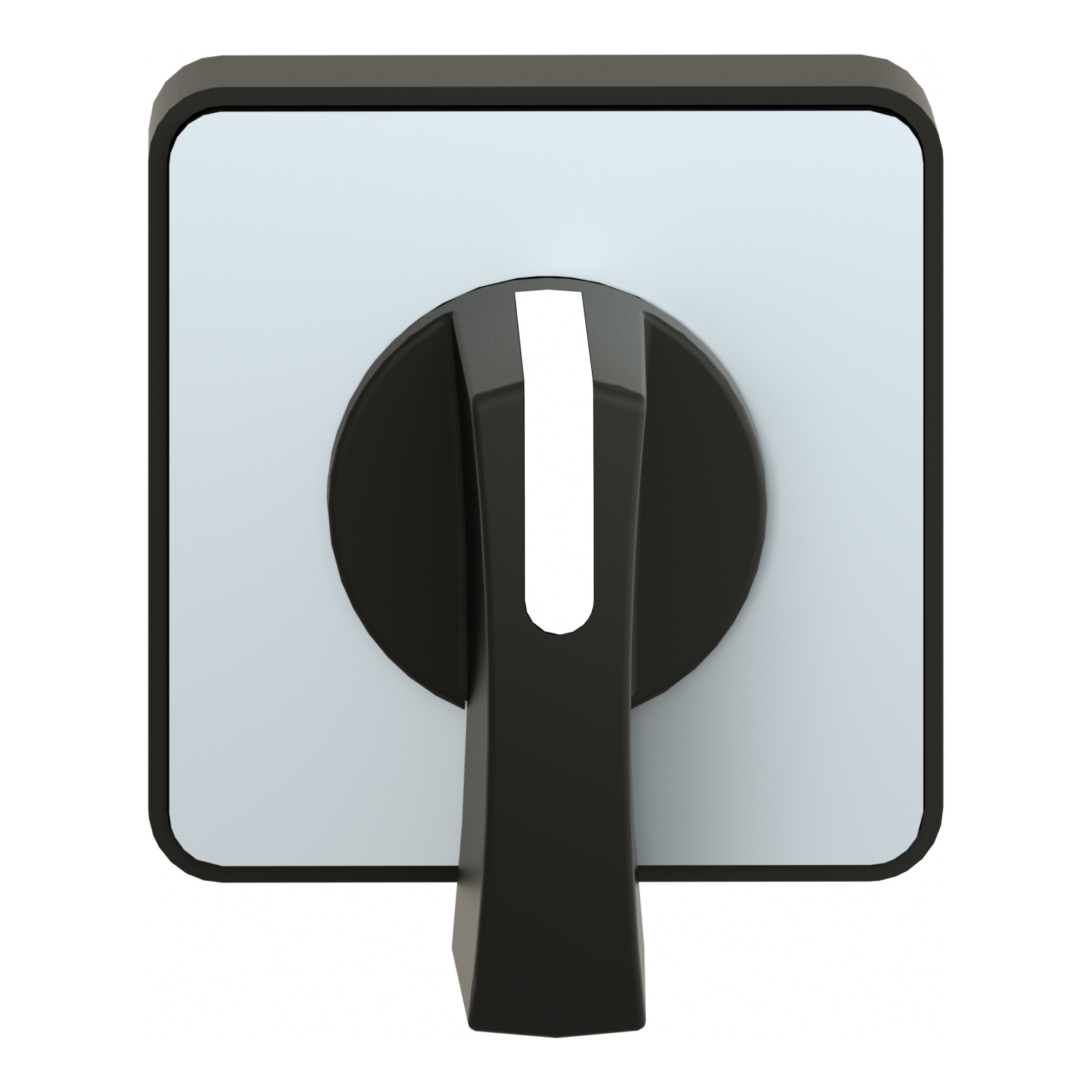

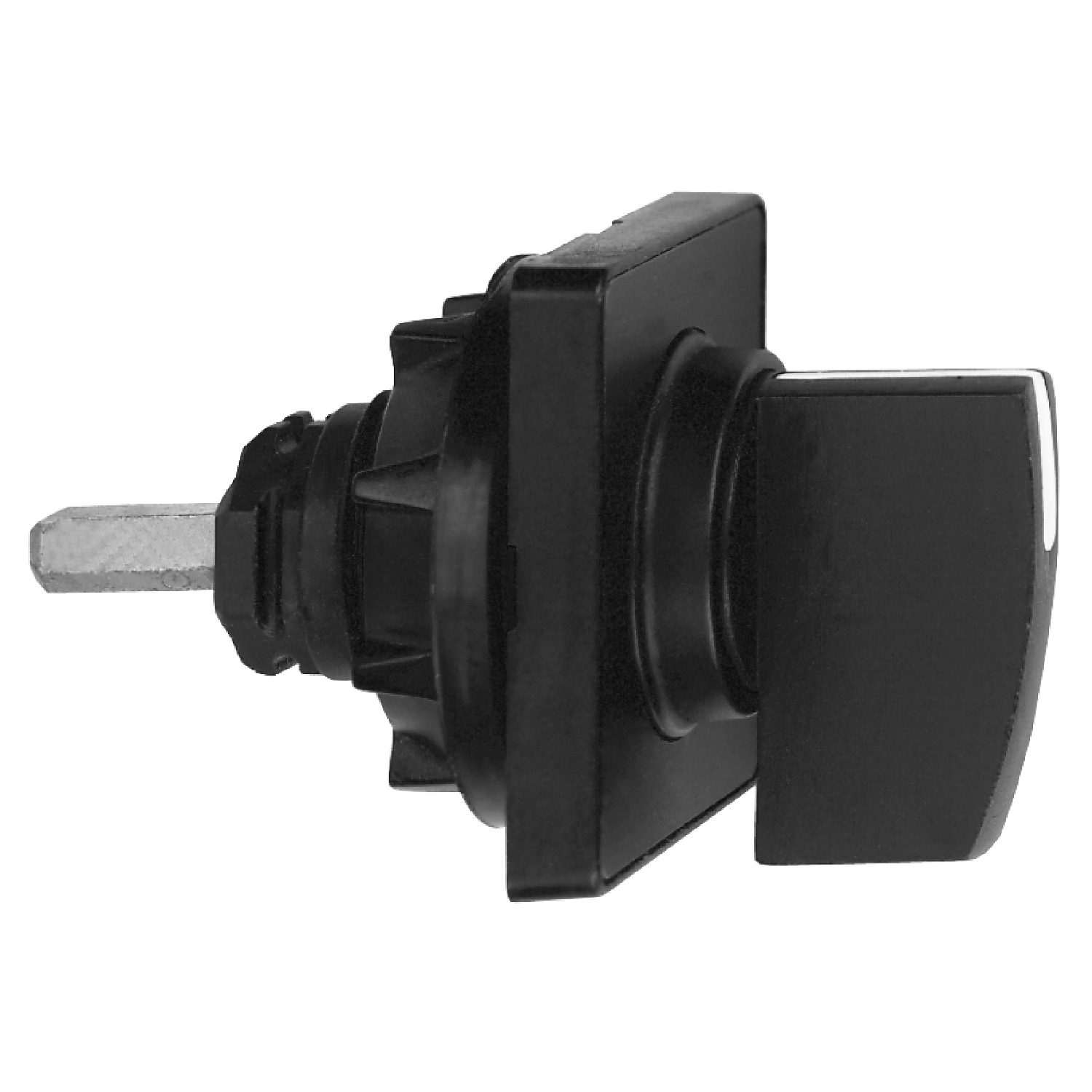

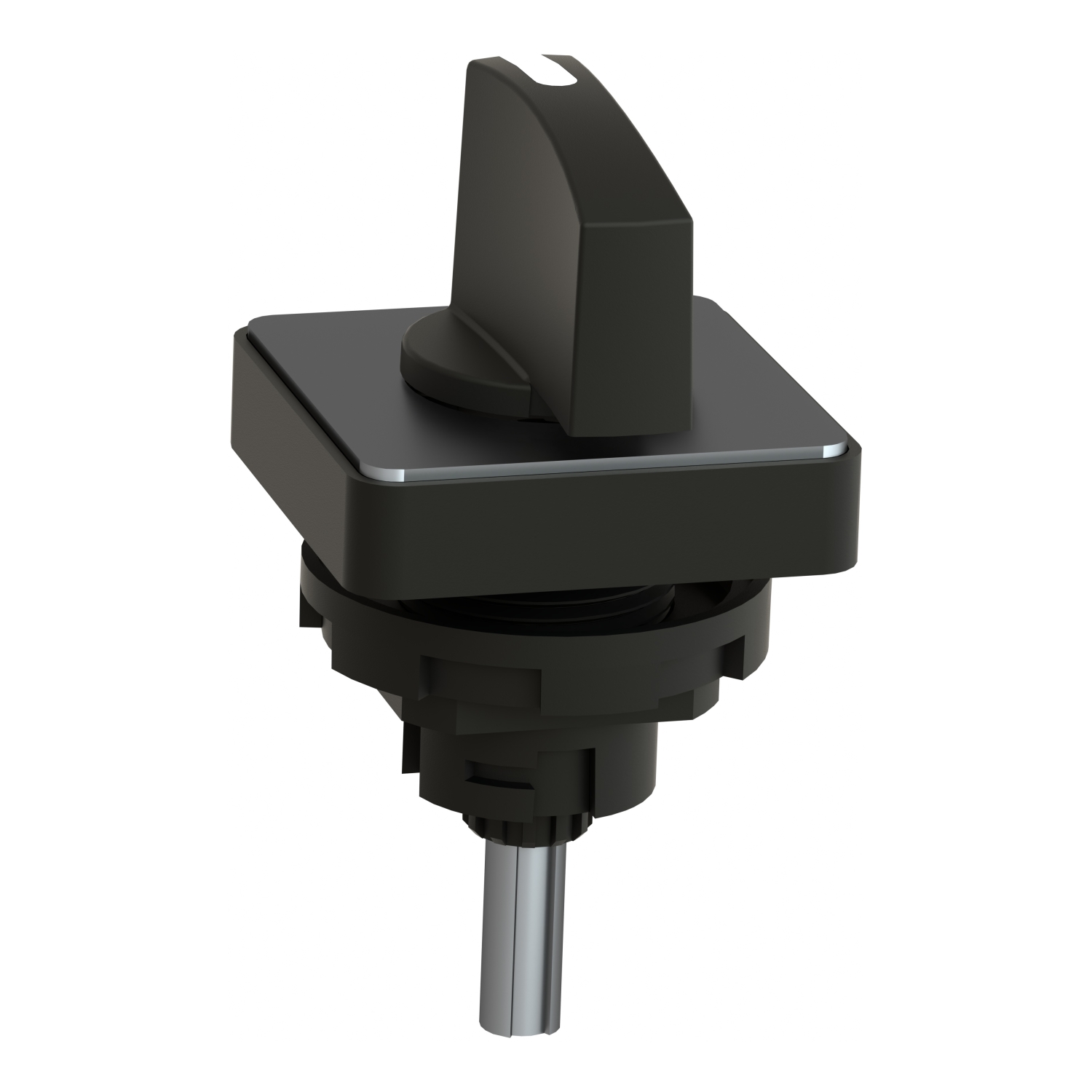

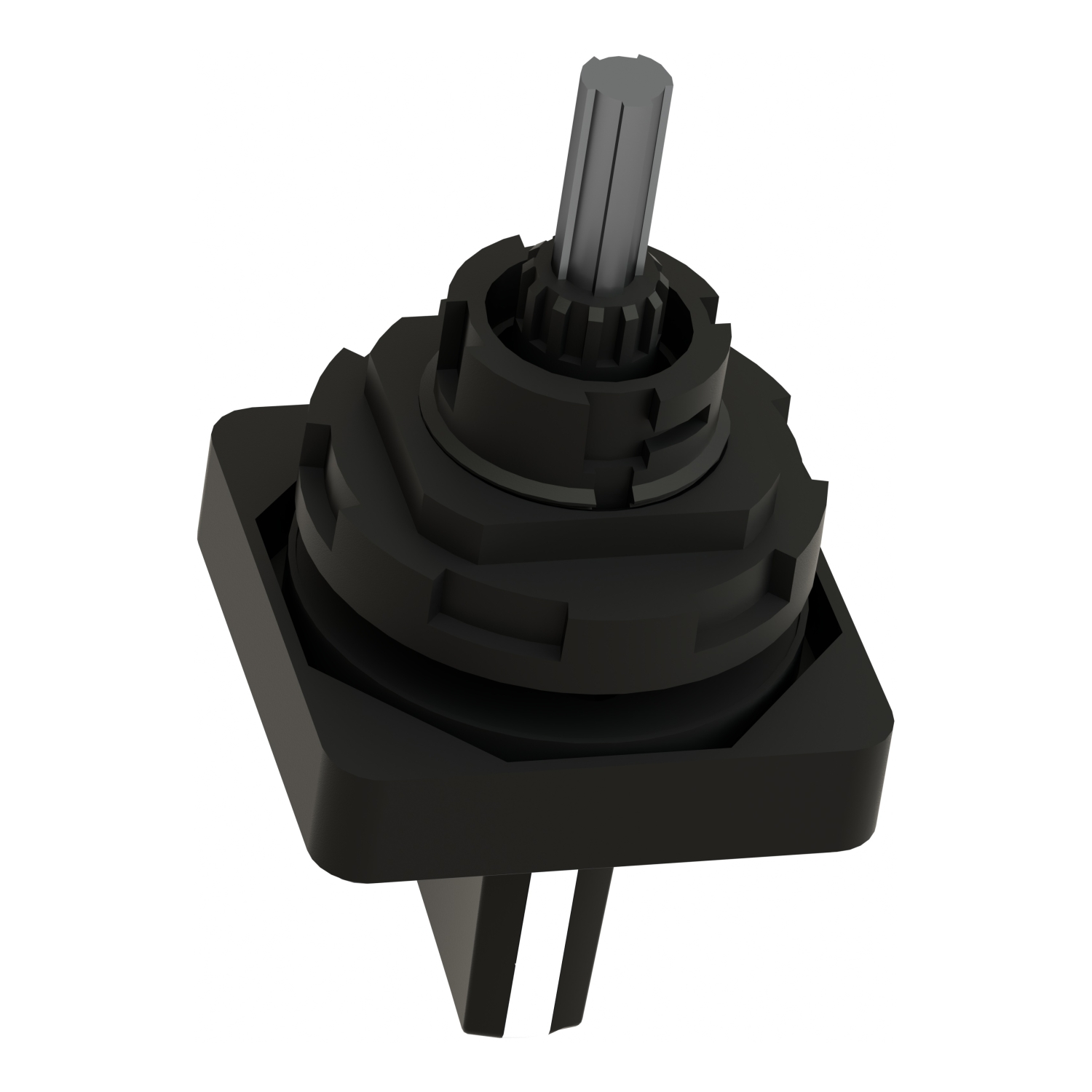

This Harmony KAC operating head is part of the range Harmony K rotary cam switches It is supplied with 45mm x 45mm front plate and black handle 35mm length. It is compatible with diameter 22mm front mounting bodies. It is supplied with blank legend (for engraving by user). It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It weighs 48g.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Rotary handle padlocking | without |
| Cam switch head type | with front plate 45 x 45 mm |
| Product compatibility | front mounting bodies 12 and 20 A by Ø 22 mm hole |
| Type of operator | black handle, length = 35 mm |
| Component name | KAC |
| Product or component type | cam switch operating head |
| Presentation of legend | with mat black legend |
| Range of product | Harmony Series K |
| Complementary | |
| CAD overall depth | 77 mm |
| CAD overall width | 45 mm |
| Compatibility code | KAC |
| Mechanical durability | 1000000 cycles |
| CAD overall height | 45 mm |
| Net weight | 0.048 kg |
| Length | 35 mm |
| Environment | |
| Protective treatment | TC |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to NF C 20-010, IP65 conforming to IEC 529 |
| Shock resistance | 30 gn conforming to IEC 68-2-27 |
| Vibration resistance | 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz) |
| Ambient air temperature for operation | -25-55 °C |
