Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Off position | with Off position |
| Return | without |
| Rotary handle padlocking | without |
| Poles description | 3P |
| Product mounting | front mounting |

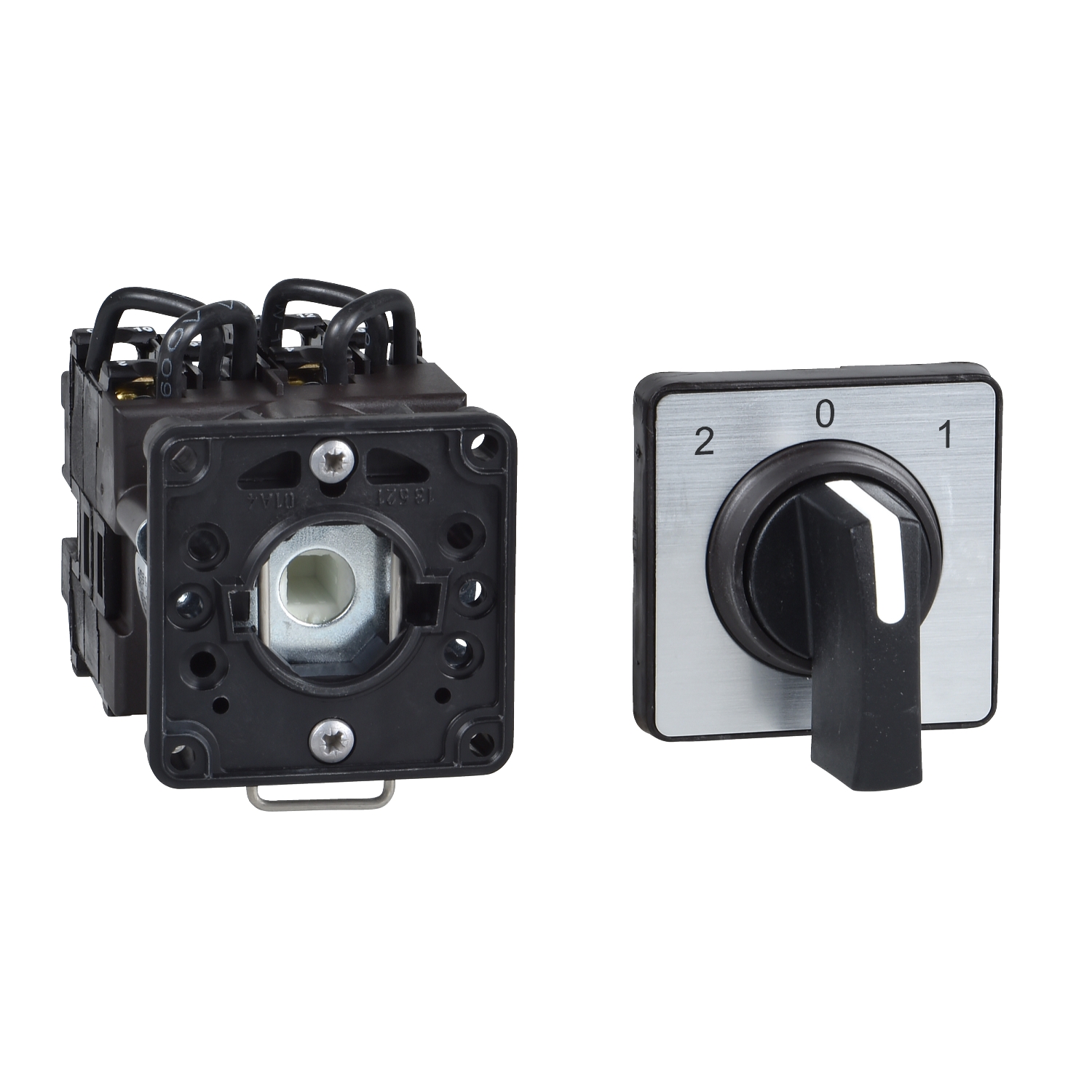

| Cam switch head type | with front plate 45 x 45 mm |
| Switching positions | left: 0° - 315°, right: 0° - 45° |
| Type of operator | black handle, length = 35 mm |
| Component name | K2 |
| Cam switch function | changeover switch |
| [Ith] conventional free air thermal current | 20 A |
| Product or component type | complete cam switch |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Presentation of legend | with metallic legend, 2 - 0 - 1 black marking |
| Fixing mode | Ø 22 mm hole |
| Range of product | Harmony K |
| Complementary | |
| CAD overall depth | 69 mm |
| CAD overall width | 45 mm |
| Compatibility code | K2F |
| Mechanical durability | 1000000 cycles |
| Contact operation | slow-break |
| Positive opening | with |
| [Ui] rated insulation voltage | 690 V (pollution degree 3) conforming to IEC 60947-1 |
| Short-circuit current | 10000 A |
| Maximum operating rate | 8.333 cyc/mn AC-15, 2.5 cyc/mn AC-3, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-21 |
| Electrical durability | 600000 cycles AC-21, 600000 cycles AC-15, 200000 cycles AC-3, 200000 cycles AC-23 |
| Electrical connection | captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm², captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm² |
| Switching angle | 45 ° |
| CAD overall height | 50 mm |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 947-1, 4 kV in isolating function |
| Net weight | 0.19 kg |
| [Ithe] conventional enclosed thermal current | 16 A |
| Short-circuit protection | 20 A cartridge fuse, type gG |
| Environment | |
| Protective treatment | TC |
| Electrical shock protection class | class II, class II conforming to IEC 536 |
| Ambient air temperature for storage | -40-70 °C |
| Standards | CENELEC EN 50013, IEC 60947-5-1 for control circuit, IEC 60947-3 for power circuit |
| Product certifications | UL 240 V 1 hp 3 phases, CSA 240 V 1 hp 1 phase, UL 240 V 0.33 hp 1 phase 2 pole(s), CSA 240 V 3 hp 3 phases 2 pole(s) |
| Shock resistance | 30 gn conforming to IEC 68-2-27 |
| Vibration resistance | 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz) |
| Ambient air temperature for operation | -25-55 °C |
