Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Component name | K1 |
| [Ith] conventional free air thermal current | 12 A |

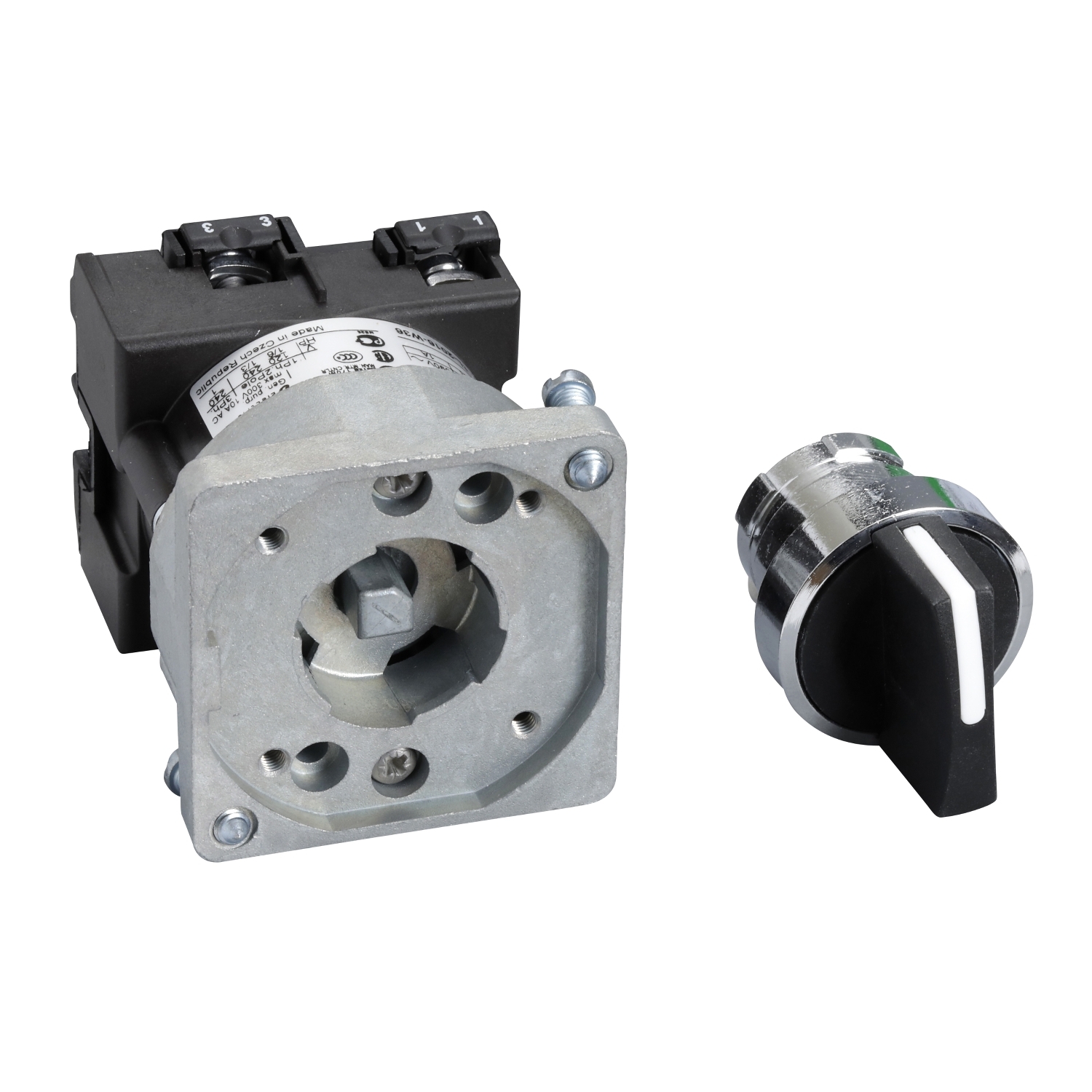

| Product or component type | complete cam switch |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Range of product | Harmony K |
| Complementary | |
| Compatibility code | K1S |
| Mechanical durability | 1000000 cycles |
| Short-circuit current | 10000 A |
| Maximum operating rate | 2.5 cyc/mn AC-3, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-21, 8333 cyc/mn AC-15 |
| Electrical durability | 500000 cycles AC-3, 500000 cycles AC-23, 1000000 cycles AC-21, 1000000 cycles AC-15 |
| Electrical connection | captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm², captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm² |
| Short-circuit protection | 16 A cartridge fuse, type gG |
| Environment | |
| Protective treatment | TC |
| Overvoltage category | class II conforming to NF C 20-030, class II conforming to IEC 536 |
| Ambient air temperature for storage | -40-70 °C |
| Standards | GB/T 14048.3 for power circuit, GB/T 14048.5 for control circuit, CENELEC EN 50013, IEC 60947-5-1 for control circuit, IEC 60947-3 for power circuit |
| Product certifications | CCC, UL 240 V 1 hp 3 phases, CSA 240 V 1 hp 1 phase, UL 240 V 0.33 hp 1 phase 2 -pole(s), CSA 240 V 3 hp 3 phases 2 -pole(s) |
| Shock resistance | 30 gn conforming to IEC 68-2-27 |
| Vibration resistance | 5 gn conforming to IEC 68-2-6 (f = 10-150 Hz) |
| Ambient air temperature for operation | -25-55 °C |
