Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Off position | with Off position |
| Return | without |
| Rotary handle padlocking | without |
| Poles description | 4P |

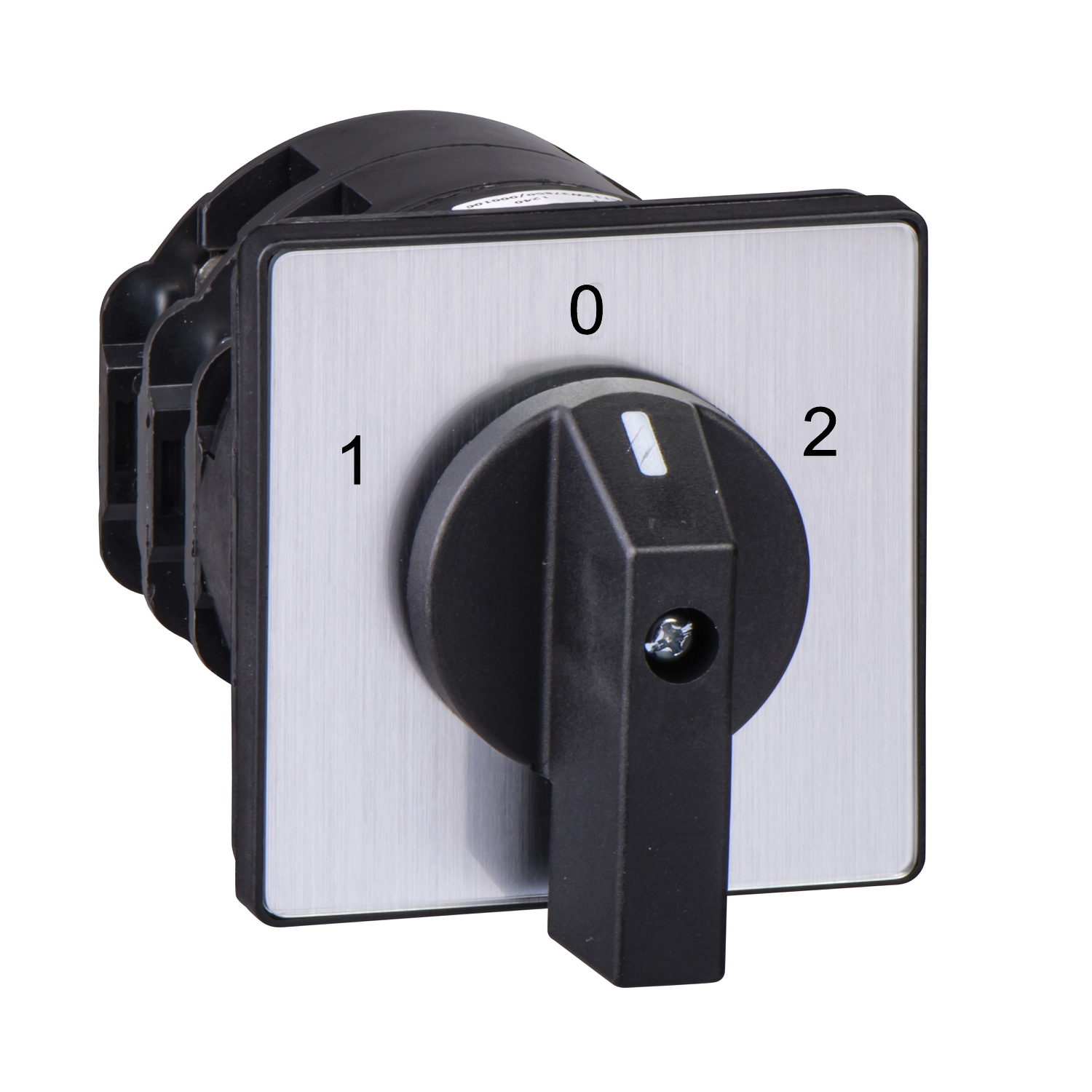

| Cam switch head type | with front plate 88 x 88 mm |
| Switching positions | left: 0° - 300°, right: 0° - 60° |
| Mounting location | front |
| Type of operator | black handle |
| Component name | K115 |
| Cam switch function | changeover switch |
| [Ith] conventional free air thermal current | 115 A |
| Product or component type | complete cam switch |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Presentation of legend | with metallic legend, 1 - 0 - 2 black marking |
| Fixing mode | 4 holes |
| Range of product | Harmony K |
| Complementary | |
| [Ie] rated operational current AC | 100 A AC-21A conforming to IEC 60947-3 |
| Rated operational power in W | 7500 W AC-3, 220/240 V 1 phase conforming to IEC 60947-3, 65000 W AC-23A, 660/690 V 3 phases conforming to IEC 60947-3, 5500 W AC-23A, 110 V 1 phase conforming to IEC 60947-3, 45000 W AC-23A, 380/440 V 3 phases conforming to IEC 60947-3, 3700 W AC-3, 110 V 1 phase conforming to IEC 60947-3, 30000 W AC-3, 660/690 V 3 phases conforming to IEC 60947-3, 30000 W AC-3, 380/440 V 3 phases conforming to IEC 60947-3, 30000 W AC-23A, 220/240 V 3 phases conforming to IEC 60947-3, 22000 W AC-23A, 380/440 V 1 phase conforming to IEC 60947-3, 15000 W AC-3, 220/240 V 3 phases conforming to IEC 60947-3, 15000 W AC-23A, 220/240 V 1 phase conforming to IEC 60947-3, 13000 W AC-3, 380/440 V 1 phase conforming to IEC 60947-3 |
| CAD overall depth | 181 mm |
| CAD overall width | 88 mm |
| Switching capacity in mA | 33000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms), 33000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms), 33000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms), 115000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms), 115000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms), 115000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms), 100000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms), 100000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms), 100000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms), 100000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms), 100000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms), 100000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms) |
| Compatibility code | K11 |
| Mechanical durability | 300000 cycles |
| Contact operation | slow-break |
| Tightening torque | 2.5 N.m |
| Positive opening | with |
| [Ui] rated insulation voltage | 690 V (pollution degree 3) conforming to IEC 60947-1 |
| Short-circuit current | 15000 A |
| Electrical connection | captive screw clamp terminals solid, clamping capacity: 1 x 35 mm², captive screw clamp terminals flexible, clamping capacity: 1 x 25 mm² |
| Switching angle | 60 ° |
| CAD overall height | 88 mm |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 947-1, 6 kV conforming to EN 947-1 |
| Net weight | 0.75 kg |
| Short-circuit protection | 125 A cartridge fuse, type gG |
| Environment | |
| Protective treatment | TC |
| Overvoltage category | class II conforming to NF C 20-030, class II conforming to IEC 60536 |
| Ambient air temperature for storage | -40-70 °C |
| Standards | IEC 60947-3 |
| Product certifications | cULus 480 V 30 hp 3 phases, cULus 240 V 20 hp 3 phases, cULus 240 V 10 hp 1 phase, cULus 120 V 5 hp 1 phase |
| Ambient air temperature for operation | -25-55 °C |
