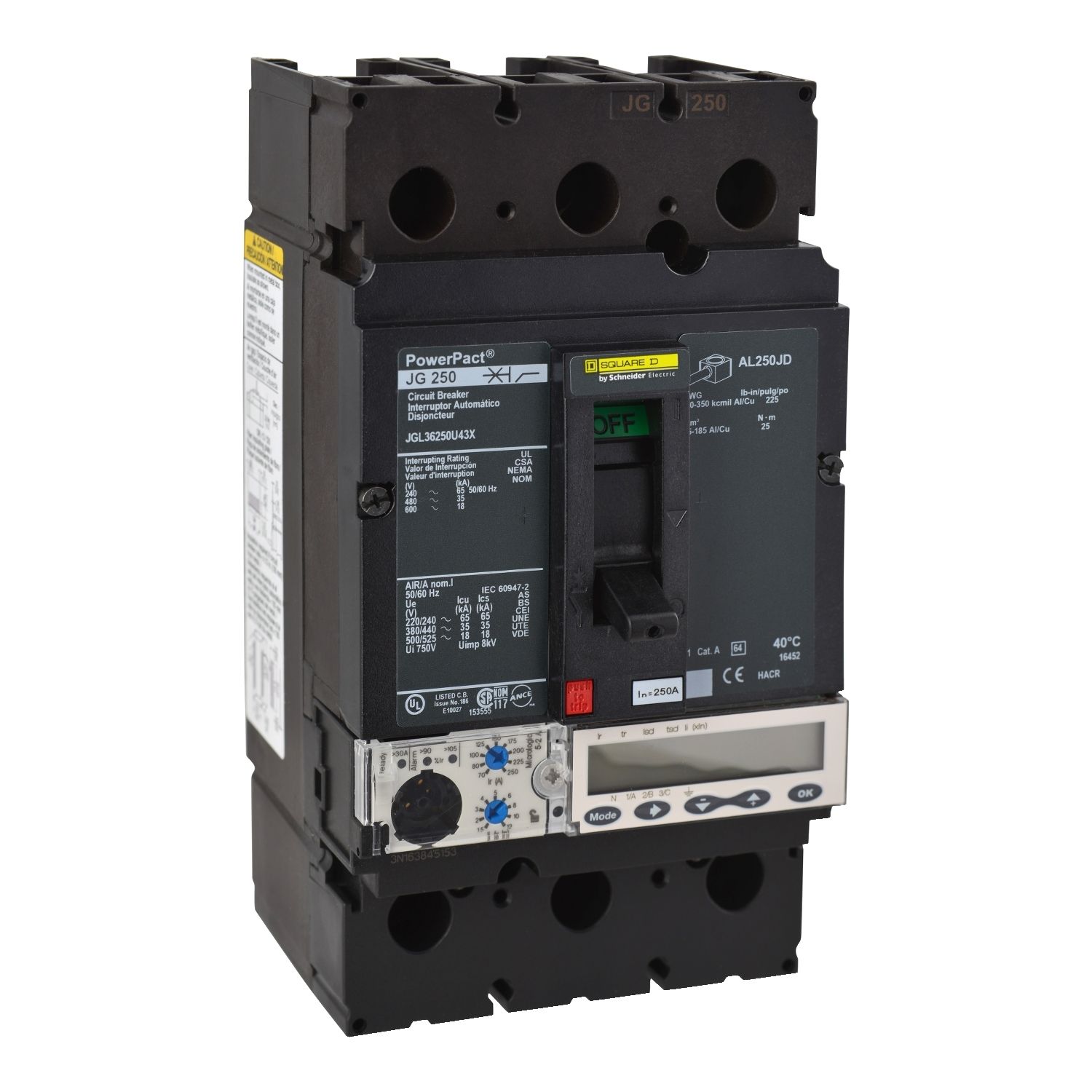

The PowerPact™ J-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact J, circuit breaker and is 3-pole and has a breaking capacity of @ and has a rated current of 250A. This ia a unit mount breaker and complies to UL listed, IEC, CCC, CE & CSA standards. With an electronictrip unit it has an LSI function and an ABC Phase Connectiion. Dimensions for this product are 7.52 in (H),4.12 in (W), 5 in (D) with an ambient temperature rating of 50 °C. This product comes with an 18 month warranty.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | distribution |
| Range | PowerPact |
| Product name | PowerPact J |
| Product or component type | circuit breaker |
| Complementary | |
| AWG gauge | AWG 3/0...350 kcmil aluminium/copper terminals |
| Protection type | short-circuit protection, overload protection |
| Suitability for isolation | yes conforming to IEC 60947-2 |
| Breaking capacity | 20 kA at 500 V DC conforming to UL 489, 20 kA at 250 V DC conforming to UL 489, 18 kA at 600 V AC 50/60 Hz conforming to UL 489, 35 kA at 480 V AC 50/60 Hz conforming to UL 489, 65 kA at 240 V AC 50/60 Hz conforming to UL 489 |
| Continuous current rating | 80 % |
| Long time pick-up adjustment range | 0.25...1 x In |
| Wire stripping length | 25 mm |
| Control type | toggle |
| Tightening torque | 25-25 N.m for 95-185 mm² (AWG 3/0...350 kcmil) |
| Height | 191 mm |
| Trip unit name | MicroLogic 5.2 A |
| [Ics] rated service breaking capacity | 20 kA at 500 V DC conforming to IEC 60947-2, 20 kA at 250 V DC conforming to IEC 60947-2, 18 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2, 35 kA at 380/440/415 V AC 50/60 Hz conforming to IEC 60947-2, 65 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Depth | 86 mm |
| Width | 104 mm |
| Poles description | 3P |
| Communication interface | Ethernet, Modbus |
| [Ui] rated insulation voltage | 750 V conforming to IEC 60947-2 |
| [In] rated current | 250-250 A |
| Utilisation category | category A |
| Circuit breaker application | HACR rated |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Net weight | 2.4 kg |
| Electrical connection | lugs, load, lugs, line |
| Number of slots | 1 slot(s) for voltage release MN or MX (plug-in), 1 slot(s) for overcurrent trip switch SDE (plug-in), 1 slot(s) for alarm switch SD (plug-in), 2 slot(s) for auxiliary switch OF (plug-in) |
| Local signalling | switched off (OFF): 1 trip indicator (green), alarm: 1 LED 105 % Ir (red), alarm: 1 LED 90 % Ir (orange), ready: 1 LED (green) |
| Breaking capacity code | G |
| Mounting support | lug |
| [Ue] rated operational voltage | 600 V AC 50/60 Hz conforming to IEC 60947-3 |
| Trip unit technology | electronic, ammeter, MicroLogic 5.2 A, LSI |
| Terminal identifier | AL250JD |
| Network frequency | 50/60 Hz |
| Mounting mode | unit mount (lug) |
| Environment | |
| Ambient air temperature for storage | -50-85 °C |
| Pollution degree | 3 conforming to IEC 60947-1 |
| IP degree of protection | front cover: IP40 |
| Product certifications | NOM, CSA, UL |
| Ambient air temperature for operation | -25-70 °C |
| Operating altitude | 5000 m with derating, < 2000 m without derating |
| Quality labels | CE |
| Standards | IEC 60947-2, NOM-003-SCFI-2000, NEMA, CSA, UL |
