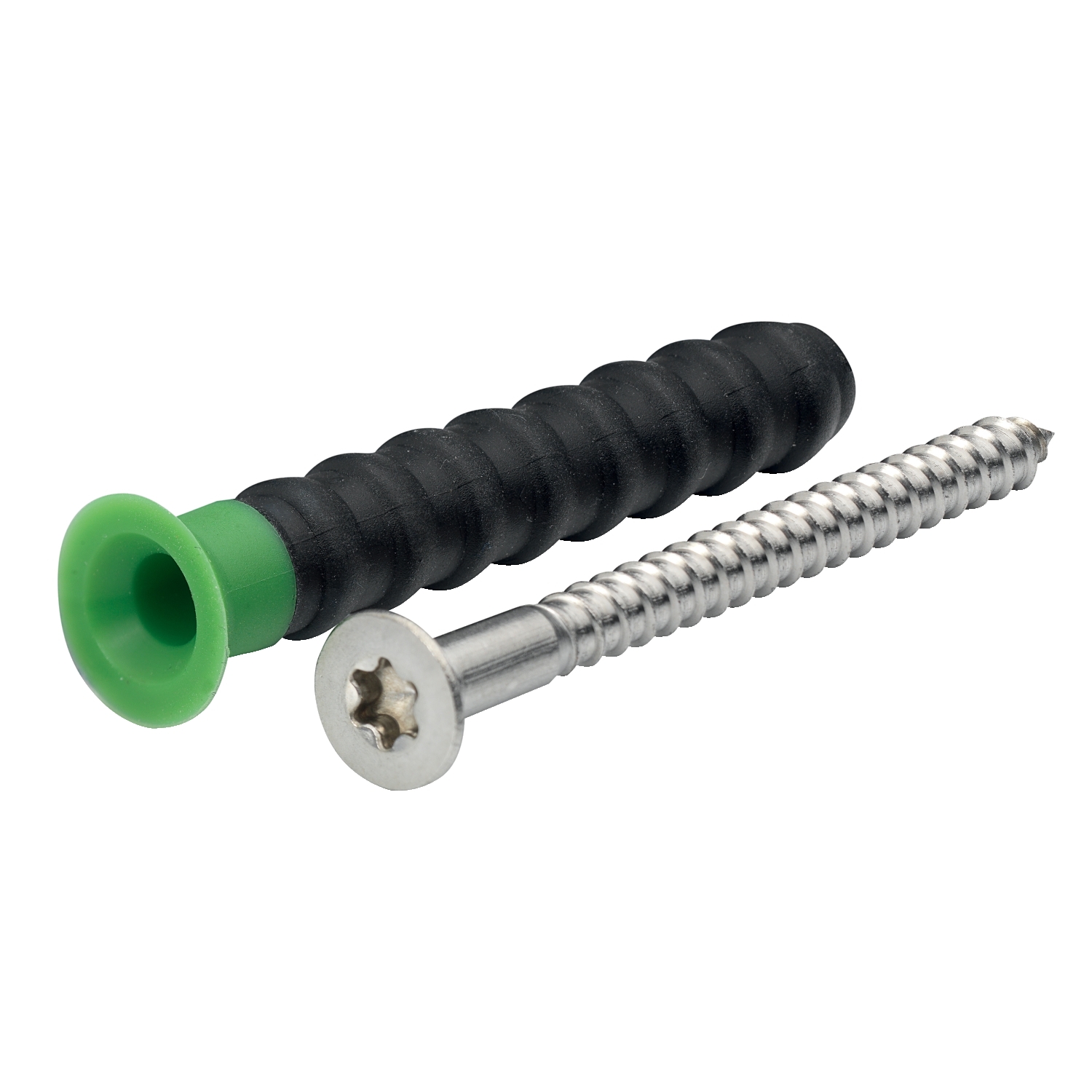

This Thorsman nail plug is green/black in colour. It comes with a screw. The dimension (L) 67 mm. It is made of acid-proof stainless steel making it resistant and durable. It is sold in set of 20.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Screw length | 72 mm |
| Minimum drilling depth | 70 mm |
| Device short name | TPH |
| Provided equipment | screw |
| Product or component type | nail plug |
| Drilling diameter | 10 mm |
| Range of product | Thorsman |
| Complementary | |
| Colour tint | green/black |
| Length | 67 mm |
| Thickness | 0-10 mm fixture |
| Material | plug: PA + TPR, screw: acid-proof stainless steel |
| Practical load capacity | shear: 1 kN for concrete C25 2.5 ), pull-out load: 0.8 kN for concrete C25 3 ), shear: 0.7 kN for low density concrete 500 and expanded clay 2.5 ), pull-out load: 0.6 kN for low density concrete 500 and expanded clay 3 ) |
| Atmospheric-corrosivity category | C5-M |
| Diameter | 10 mm |
| Ambient air temperature for operation | -20-60 °C |
| Environment | |
| Quantity per set | set of 20 |
