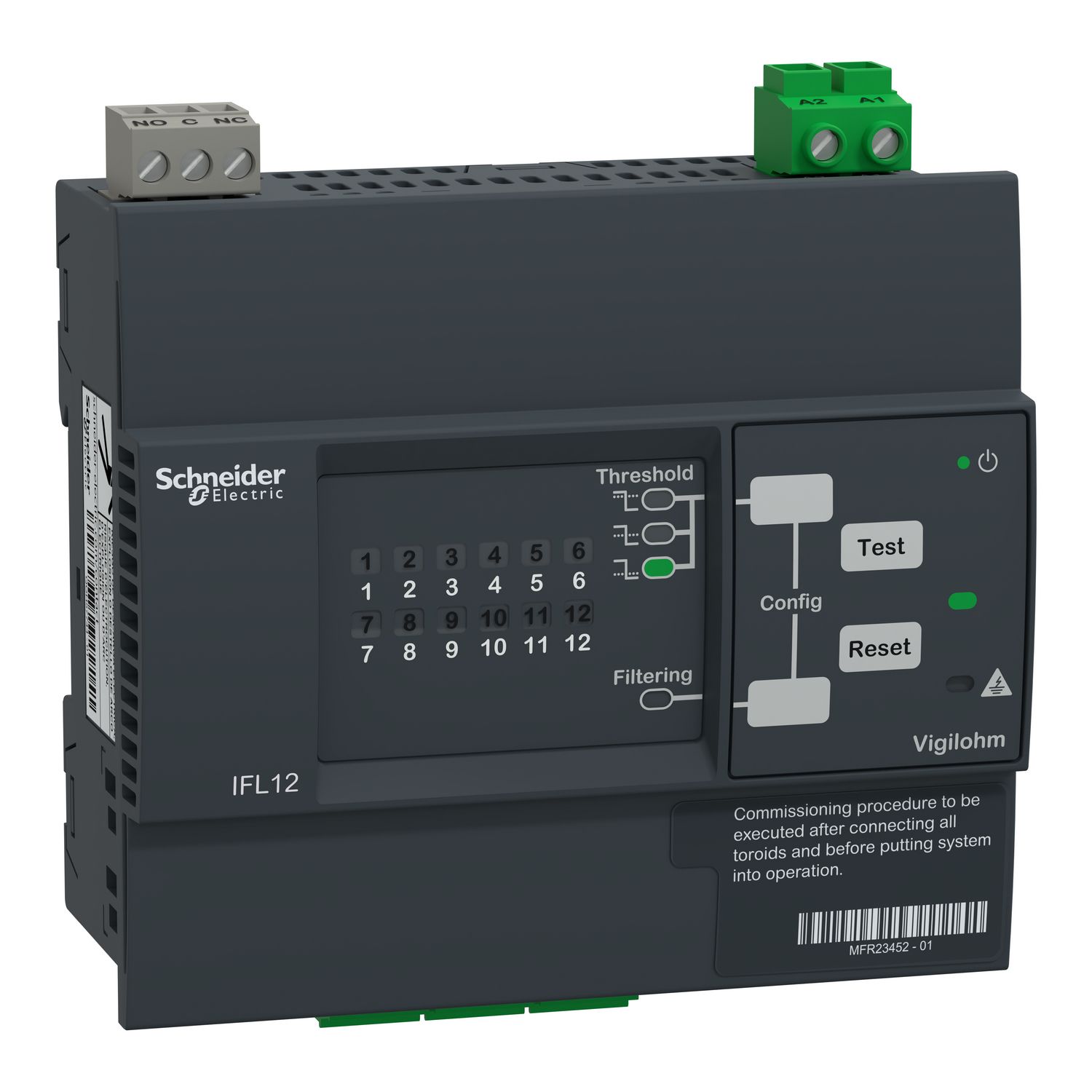

This device belongs to the Vigilohm range designed to monitor ungrounded/IT electrical networks at feeder level, in accordance to installation and products standards This insulation fault location is only possible when it is associated to IM400 series, XM300 or XM200. This device is dedicated to monitoring 12 feeders, AC, DC and ACDC, up to the toroid limit, 1000V. Configuration is set from the front of the device, through the HMI screen. Settings are related to alarm thresholds. It displays which feeder has an insulation fault. Auto-test starts automatically every 5 hours, and on demand. In case the insulation resistance drops below the set threshold, an alarm is triggered thru the IFL output relay and HMI. Once no fault is monitored, the alarm is cleared, the alarm relay is back to normal. The device can be supplied by a 110VAC to 440VAC source or a 110VDC to 440VDC, all with a tolérence of plus or minus 15%.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | IFL12 |
| Device application | standard environment application, marine application |
| Electrical circuit type | power circuit |
| Range | Vigilohm |
| Product name | Vigilohm IFL |
| Application | medium or low disturbed network |
| Product or component type | insulation fault locator |
| Earthing system | IT |
| Range of product | Vigilohm |
| Complementary | |
| Threshold setting | alarm: high, medium, low |
| Type of setting | alarm threshold: common to all feeders |
| Signal contacts composition | 1 C/O standard |
| Depth | 59 mm |
| Overvoltage category | III |
| Width | 108 mm |
| Mounting position | vertical, horizontal |
| Insulation shield | no |
| Test function | auto test at start and every 5h, manual |
| Response time | <= 5 s |
| Number of channels | 12 |
| Cut-out dimensions | 92 x 104 mm |
| Local signalling | yellow flashing 1 LED per channel: transient fault/toroid disconnected, yellow steady 1 LED per channel: insulation fault, green indicator light: configured filtering LED, green indicator light: configured threshold LED, yellow flashing indicator light: transient fault, green indicator light: satisfactory insulation, green/red indicator light: product status, yellow indicator light: insulation fault |
| Mounting mode | clip-on, flush-mounted |
| Communication port protocol | - |
| [Us] rated supply voltage | 100...440 V AC 45...65 Hz +/- 15 %, 100...440 V DC +/- 15 % |
| Power consumption in VA | 20 VA |
| Net weight | 0.5 kg |
| Material | thermoplastic |
| Connections - terminals | toroids inputs: removable screw terminal block0.2-1.5 mm², output relay: removable screw terminal block0.2-2.5 mm², power supply: removable screw terminal block0.2-2.5 mm² |
| Signalling circuit voltage | 48 V - DC at 1 A, 250 V - AC at 6 A |
| Network rated voltage | 0-1000 V - DC, 0-1000 V - AC at 45...65 Hz |
| Power consumption in W | 6 W |
| Mounting support | DIN rail, panel |
| Height | 110 mm |
| Environment | |
| Operating altitude | <= 3000 m |
| IP degree of protection | front face: IP54, case: IP20 |
| Relative humidity | 5-92 % |
| Ambient air temperature for storage | -40-85 °C |
| Standards | IEC 61557-9, IEC 60364-5-51, IEC 61010-1, IEC 60364-4-41 |
| Type of installation | indoor |
| Environmental characteristic | salt mist conforming to IEC 60068-2-52, exposure to damp heat in service conforming to IEC 60068-2-56, exposure to damp heat not in service conforming to IEC 60068-2-30 |
| Pollution degree | 2 |
| Ambient air temperature for operation | -25-55 °C |
| Product certifications | cULus, UL, EAC, CE, DNV-GL |
