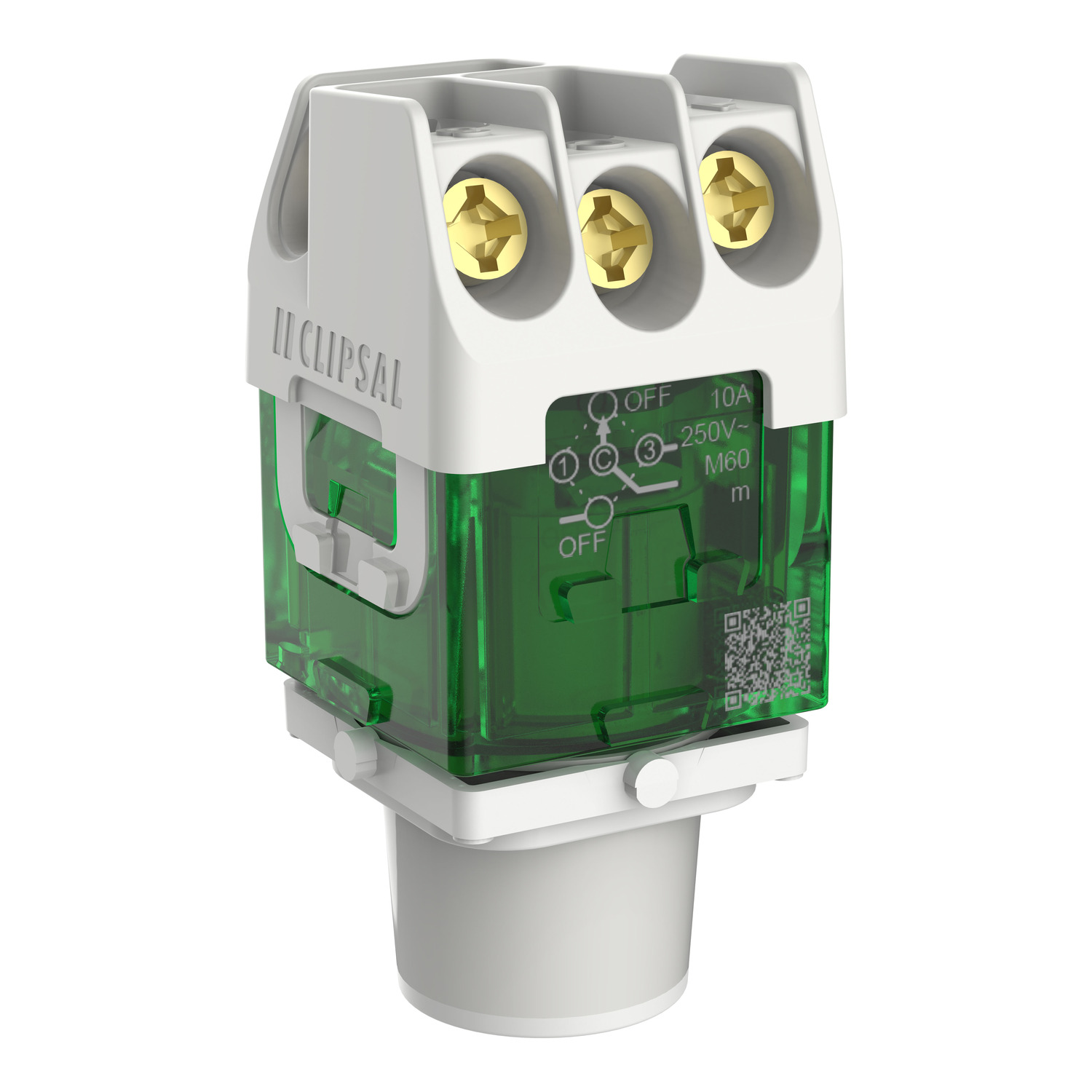

Rotary Switch Mechanism, Clipsal Iconic, 4-Position: OFF-1-2-3, 250V, 10A
Manufacturer: Clipsal
SKU: 40RSM3-VW
GTIN: 9311554812379
Old price: $26.51 inc GST
$38.17 inc GST
Supported cards
Supported cards
Enhance your electrical setup with the Clipsal Iconic selector switch, which typically offers multiple positions or settings, allowing users to choose the desired operation mode. The rated current is 10A and the rated operational voltage is 250VAC. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. The screw fixing mode is used to securely fasten components in place, and enhance stability and reliability in the assembly process. This device allows for flush mounting. The dimensions are (W) 23mm x (H) 23mm x (D) 50mm. The product weighs 20g. The color of the product is vivid white with a glossy surface finish. The product is made of PC (polycarbonate), which is resistant to wear and tear. Iconic is a collection of electrical accessories featuring a slim, sleek, and clean design that can be easily customized, providing a foundation for future technology development.

Products specifications

Attribute name Attribute value
Main
Device application small appliances
Colour tint vivid white
Quantity per set set of 20
Range Clipsal Iconic
Product or component type selector switch
Complementary
[Ue] rated operational voltage 230/240 V
Depth 50 mm
Width 23 mm
Switch function 4 positions
Device presentation mechanism
Control type rotary knob
Net weight 0.02 kg
Marking 0 - 1 - 2 - 3
Rated current 10 A
Height 23 mm
Connections - terminals 2.5-2.5 mm² screw terminal for 3 , 1.5-1.5 mm² screw terminal for 4
