| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | food and beverage, industrial machines |
| Product compatibility | HMISCU, HMIGTO, HMISTO, HMISTU, HMIGXO |
| Provided equipment | 1 x replaceable label for function keys, 1 x fixing nut, 1 x USB type mini-B cable clamp, 1 x USB cable type A/mini-B (with 1.8 m, 1 x anti-rotation tee, 1 x tightening wrench, 1 x user manual |

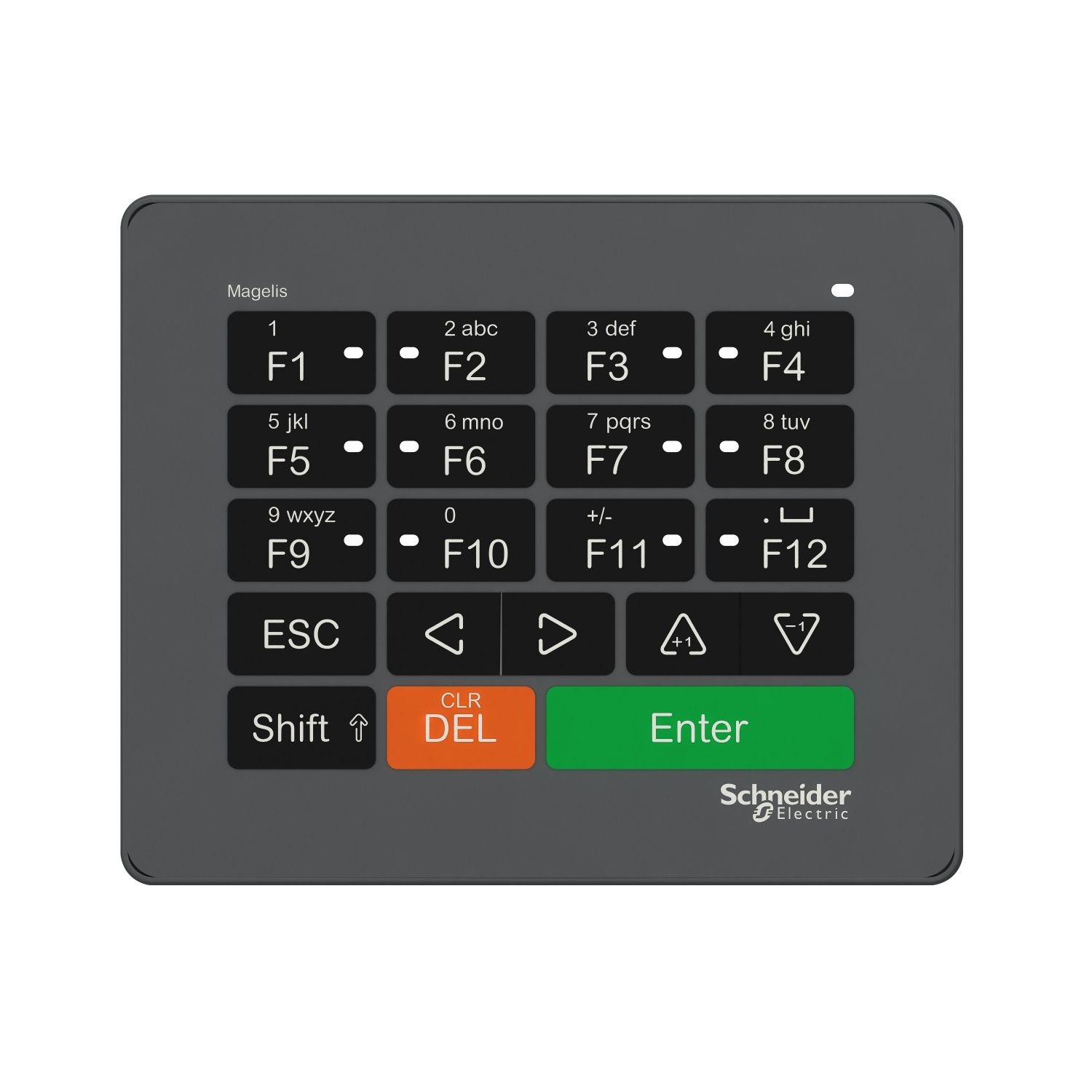

| Product or component type | keyboard |
| Range of product | Harmony HMIZ |
| Complementary | |
| Depth | 31.5 mm |
| Width | 97.6 mm |
| Quantity per set | 1 piece |
| Number of key | 20 |
| Supply voltage limits | 4.75-5.25 V DC |
| Colour of cover | front dark grey cover |
| Connector type | mini B USB |
| Mounting location | flat surface |
| Net weight | 0.15 kg |
| Shock resistance | 147 m/s² for 3 chocks in each direction X, Y and Z conforming to IEC 61131-2 |
| Electromagnetic compatibility | electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4, electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4, electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 |
| Power consumption in W | 0.75 W |
| [Us] rated supply voltage | 5 V DC, connector type: USB 2.0 |
| Software designation | Vijeo Designer version >= V6.2 |
| Number of customisable keys | 12 with integrated LEDs |
| Height | 80 mm |
| Environment | |
| Operating altitude | <= 2000 m |
| NEMA degree of protection | NEMA 4X for enclosed outdoor installation, NEMA 4X for indoor installation installation |
| Level or class | Class I Division 2 Groups A/B/C/D |
| Relative humidity | 10-90 % at 0-39 °C non-condensing |
| Environmental characteristic | corrosive gas free |
| Ambient air temperature for storage | -20-60 °C |
| IP degree of protection | IP65 (front panel (in enclosure)) |
| Vibration resistance | 3.5 mm (f= 5-9 Hz) conforming to IEC 61131-2 |
| Pollution degree | 2 |
| Standards | UL 508, EMC 2004/108/EC, ANSI/ISA 12.12.01, CSA C22.2 No 142, EN 61000-6-2, CSA C22.2 No 213, EN 61000-6-4 |
| Ambient air temperature for operation | 0-55 °C |
| Product certifications | UL/cUL listed, EAC, RCM, CE |
