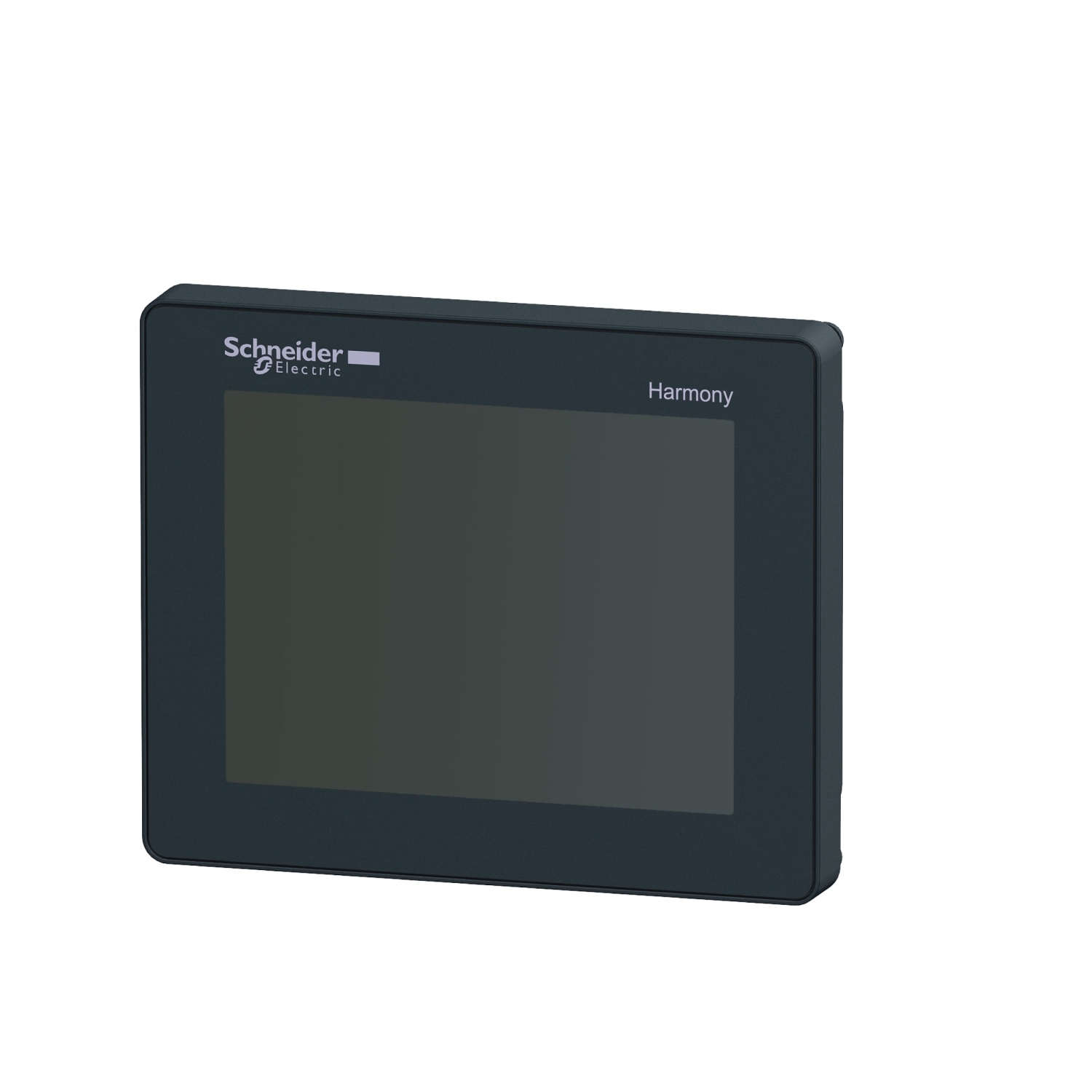

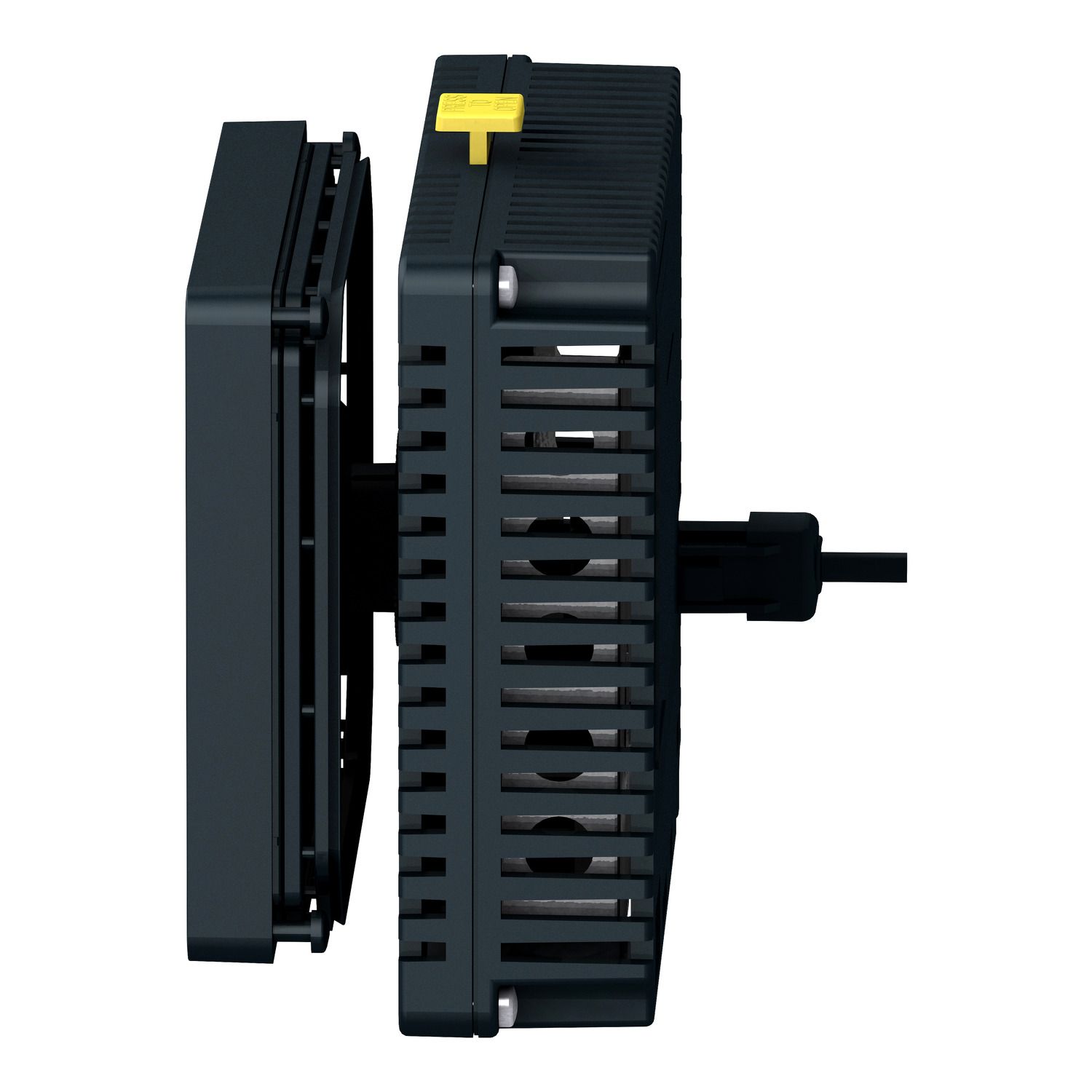

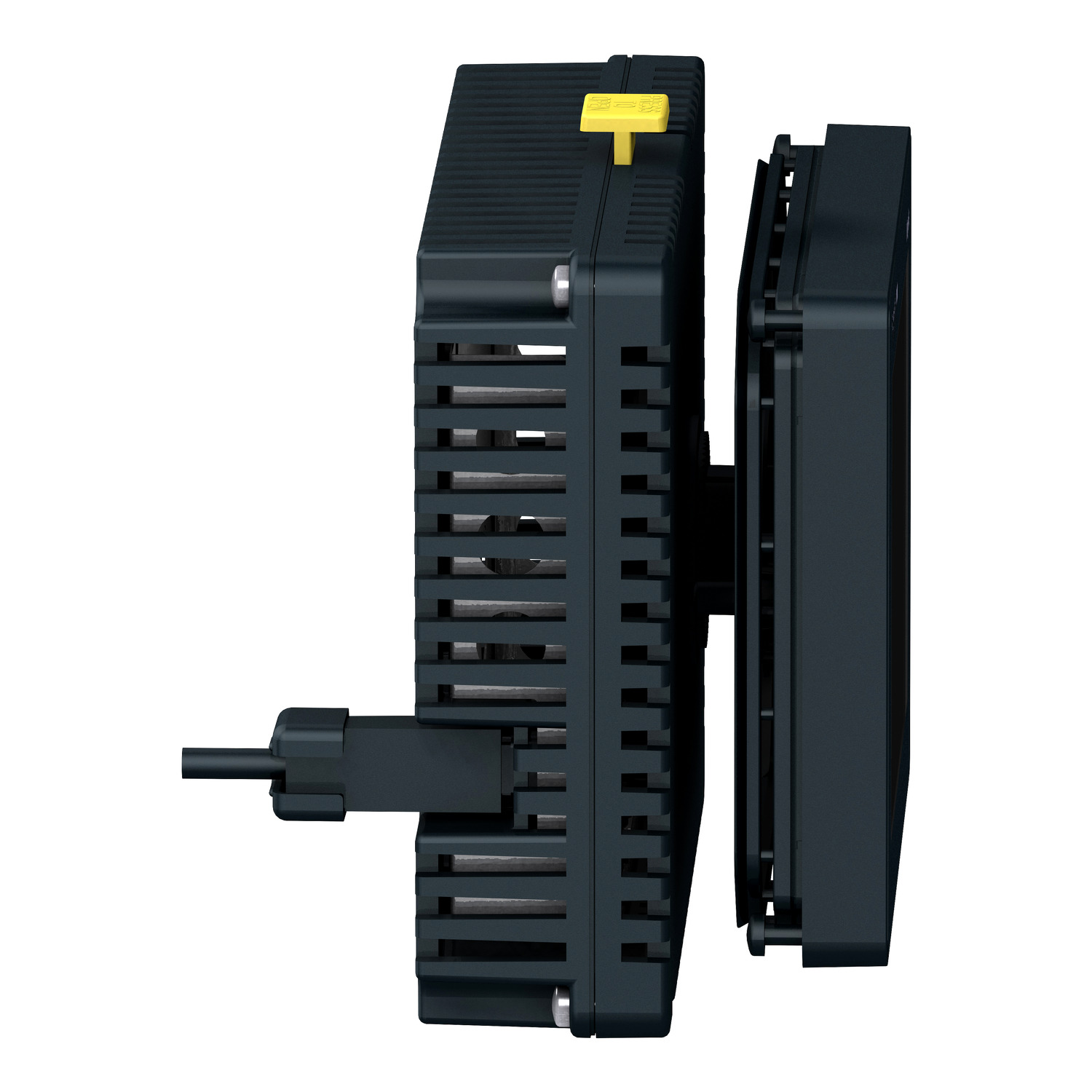

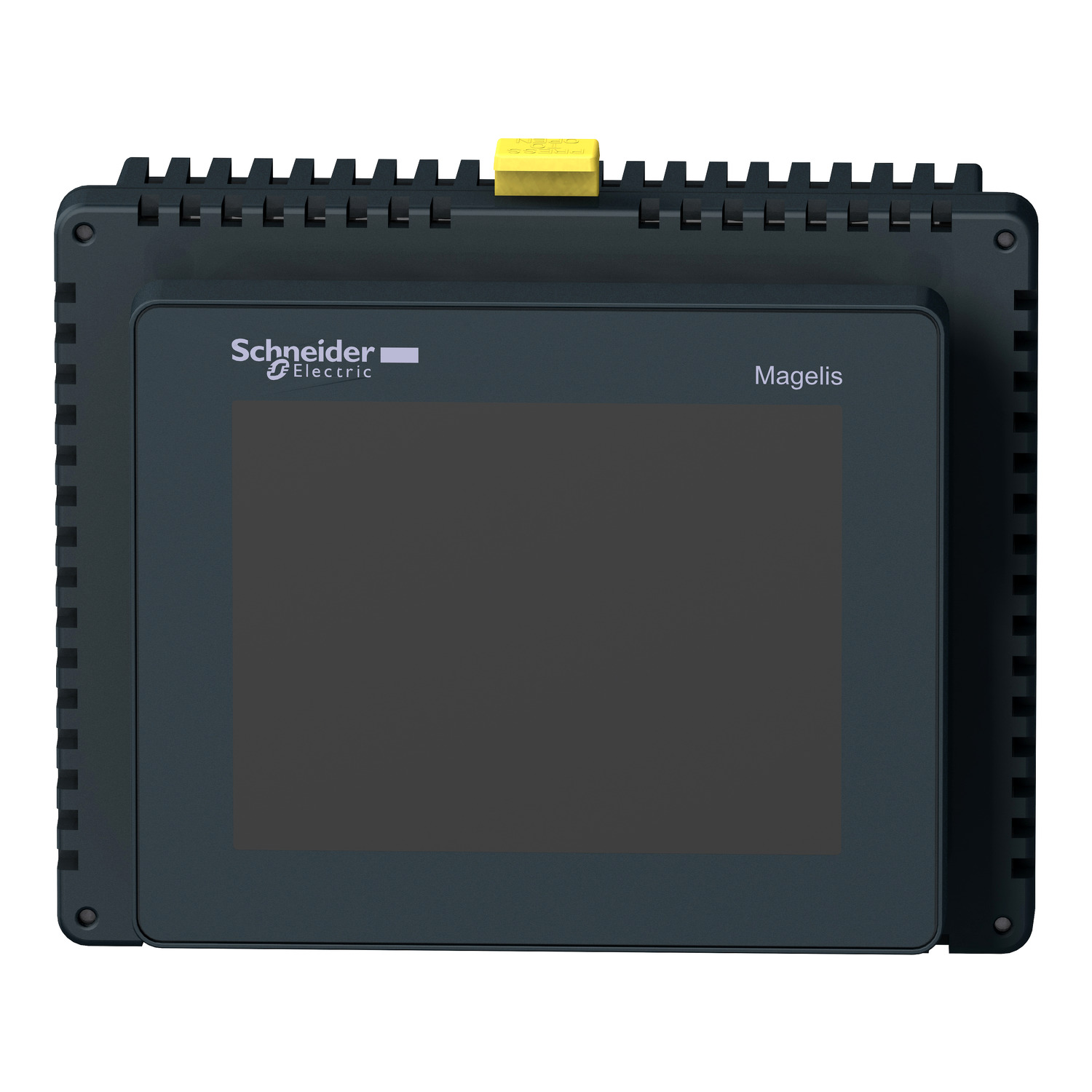

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Processor name | CPU ARM9 |
| Software designation | Vijeo Designer |
| Operating system | Harmony |
| Range of product | Harmony STO & STU |
| Product or component type | touch panel screen |
| Complementary | |
| Memory description | back up of data 64 kB, application memory 16 MB |
| Character font | Taiwanese (traditional Chinese), Korean, ASCII, Japanese (ANK, Kanji), Chinese (simplified Chinese) |
| Display type | QVGA TFT colour touchscreen |
| Display colour | 65536 colours |
| Display size | 3.5 inch |
| Supply voltage limits | 20.4-28.8 V |
| Processor frequency | 333 MHz |
| Height | 98.15 mm |
| [Us] rated supply voltage | 24 V DC |
| Enclosure material | PC/PBT |

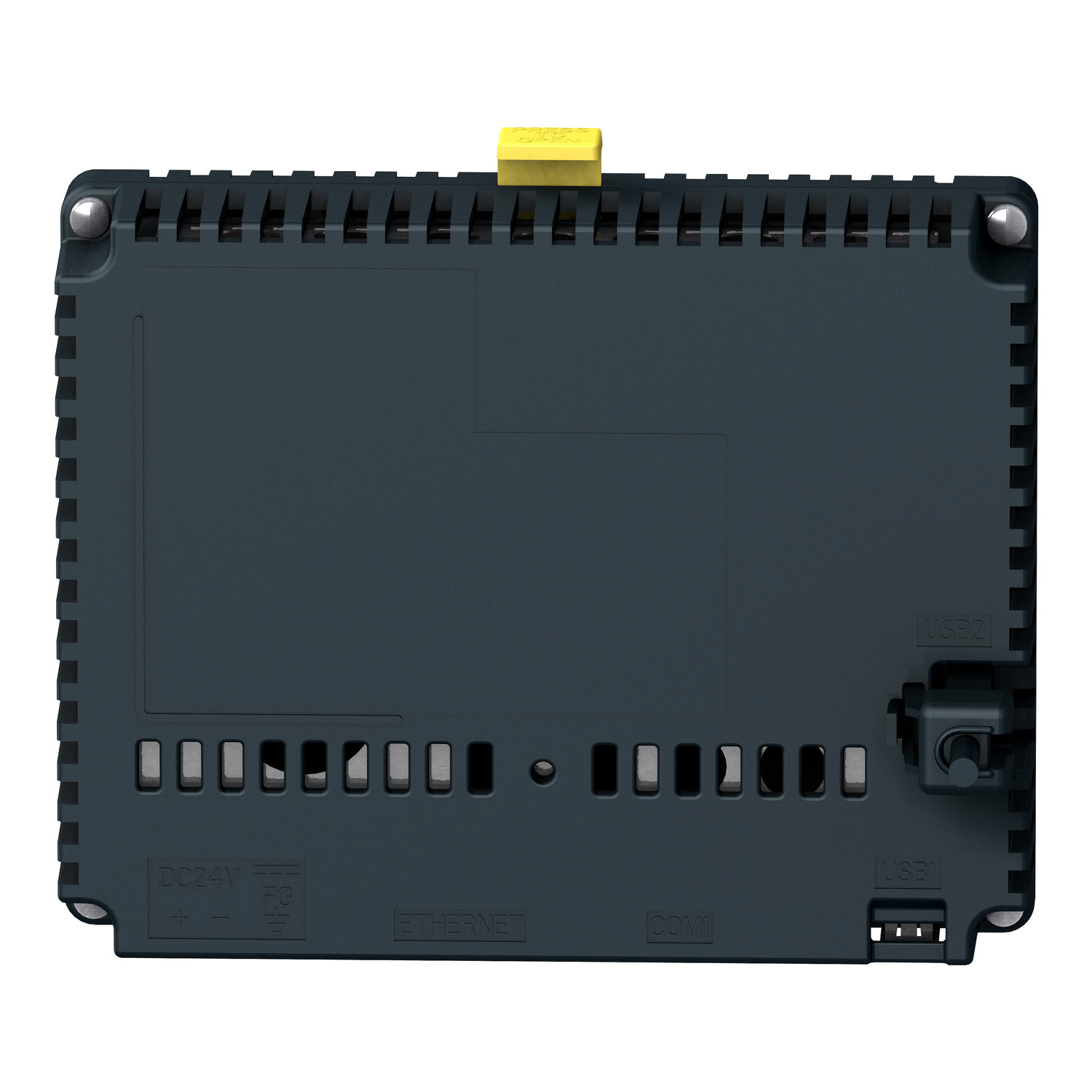

| Integrated connection type | 1 Ethernet - RJ45, power supply - removable screw terminal block, COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s), 1 USB 2.0 type A, 1 USB 2.0 type mini B |
| Supply | external source |
| Realtime clock | access to the PLC real-time clock |
| Downloadable protocols | third party protocols, Uni-TE, Modbus, Modbus TCP/IP |
| Backlight lifespan | 50000 hours |
| Fixing mode | Ø 22 mm hole |
| Marking | CE, with Schneider logo |
| Power consumption in W | 6.5 W |
| Depth | 55.3 mm |
| Width | 118 mm |
| Touch panel | analogue |
| Display resolution | 320 x 240 pixels QVGA |
| Inrush current | 30 A |
| Brightness | 16 levels |
| Number of pages | limited by internal memory capacity |
| Environment | |
| Relative humidity | 0-85 % without condensation |
| Ambient air temperature for storage | -20-60 °C |
| Immunity to microbreaks | 10 ms |
| Operating altitude | <= 2000 m |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Product certifications | UKCA, UL class 1 Div2 T4A ou T5, Marine, C-Tick, cULus |
| IP degree of protection | IP65 (front panel) conforming to IEC 60529, IP20 (rear panel) conforming to IEC 60529 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Ambient air temperature for operation | 0-50 °C |
| Vibration resistance | 1 gn (f = 9-150 Hz) conforming to IEC 60068-2-6, +/- 3.5 mm (f = 5-9 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Standards | FCC Class A, UL 508, UL 1604, IEC 61131-2, IEC 61000-6-2 |
