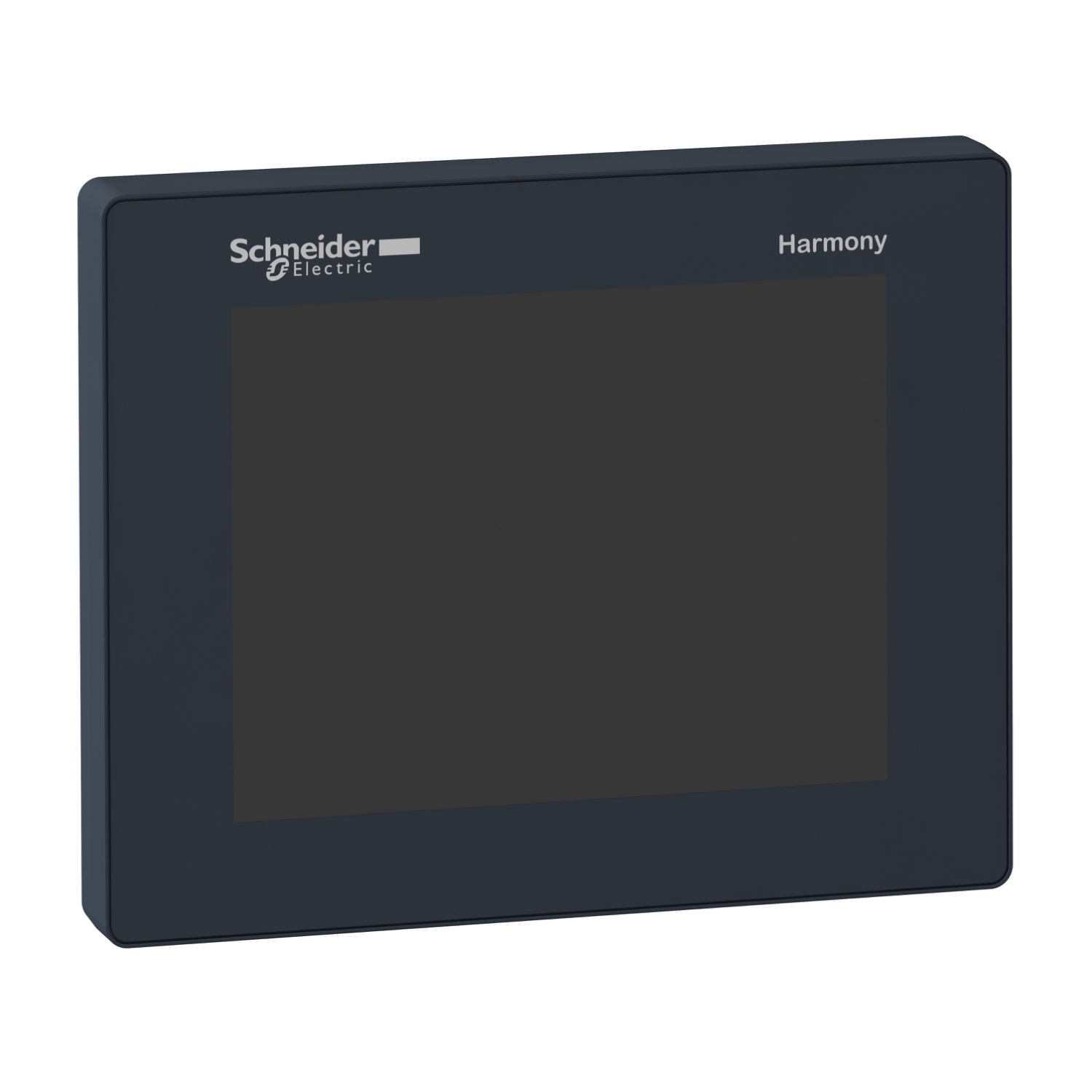

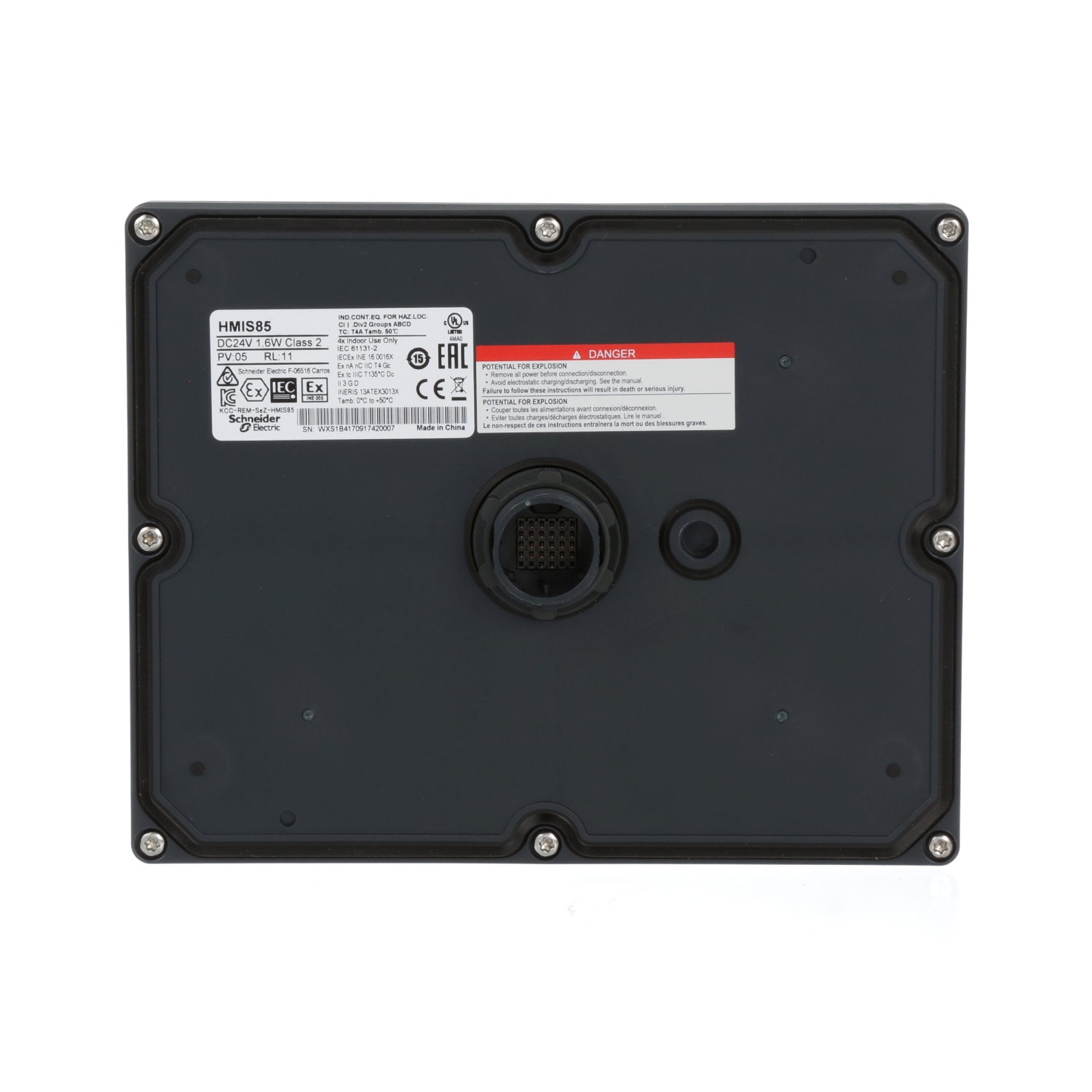

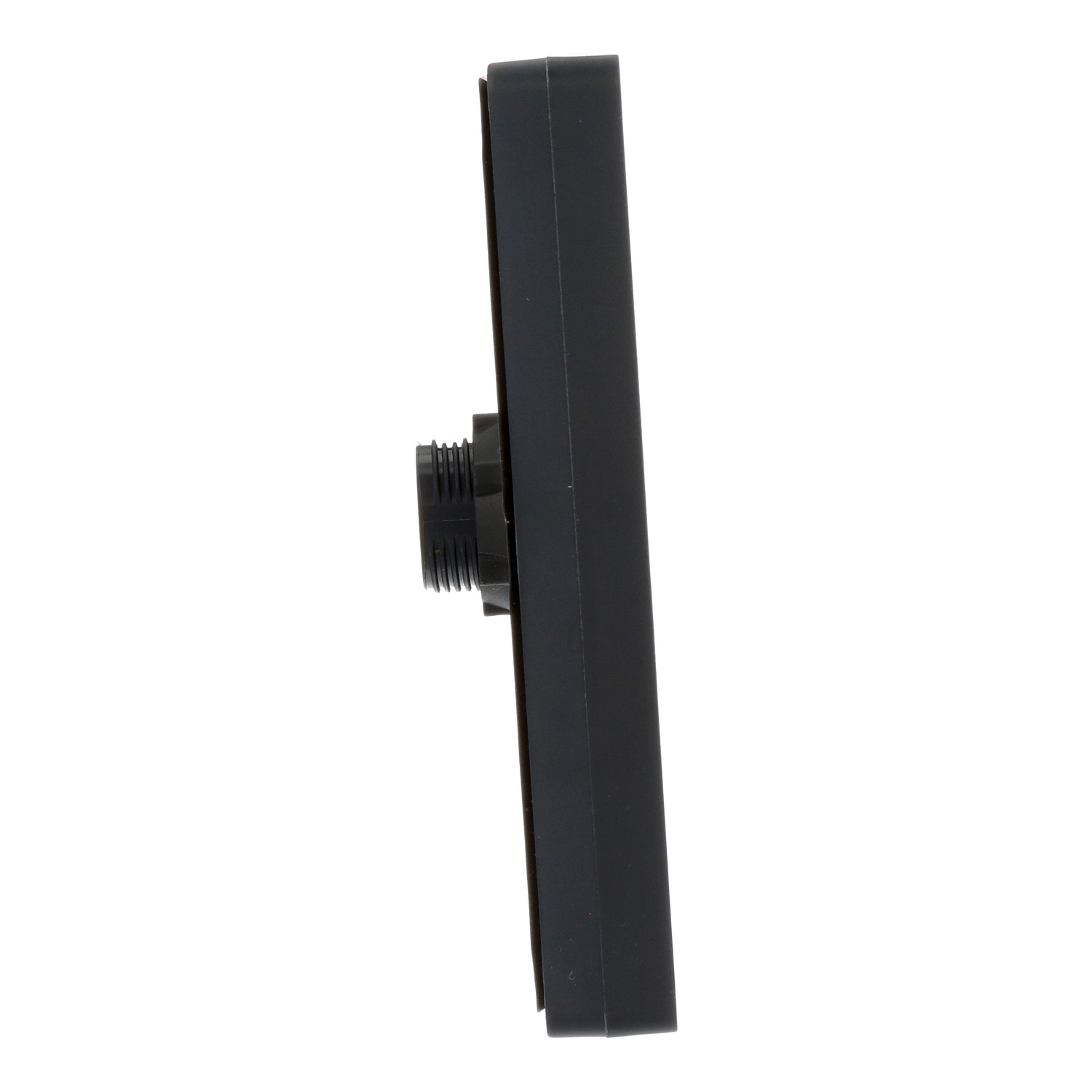

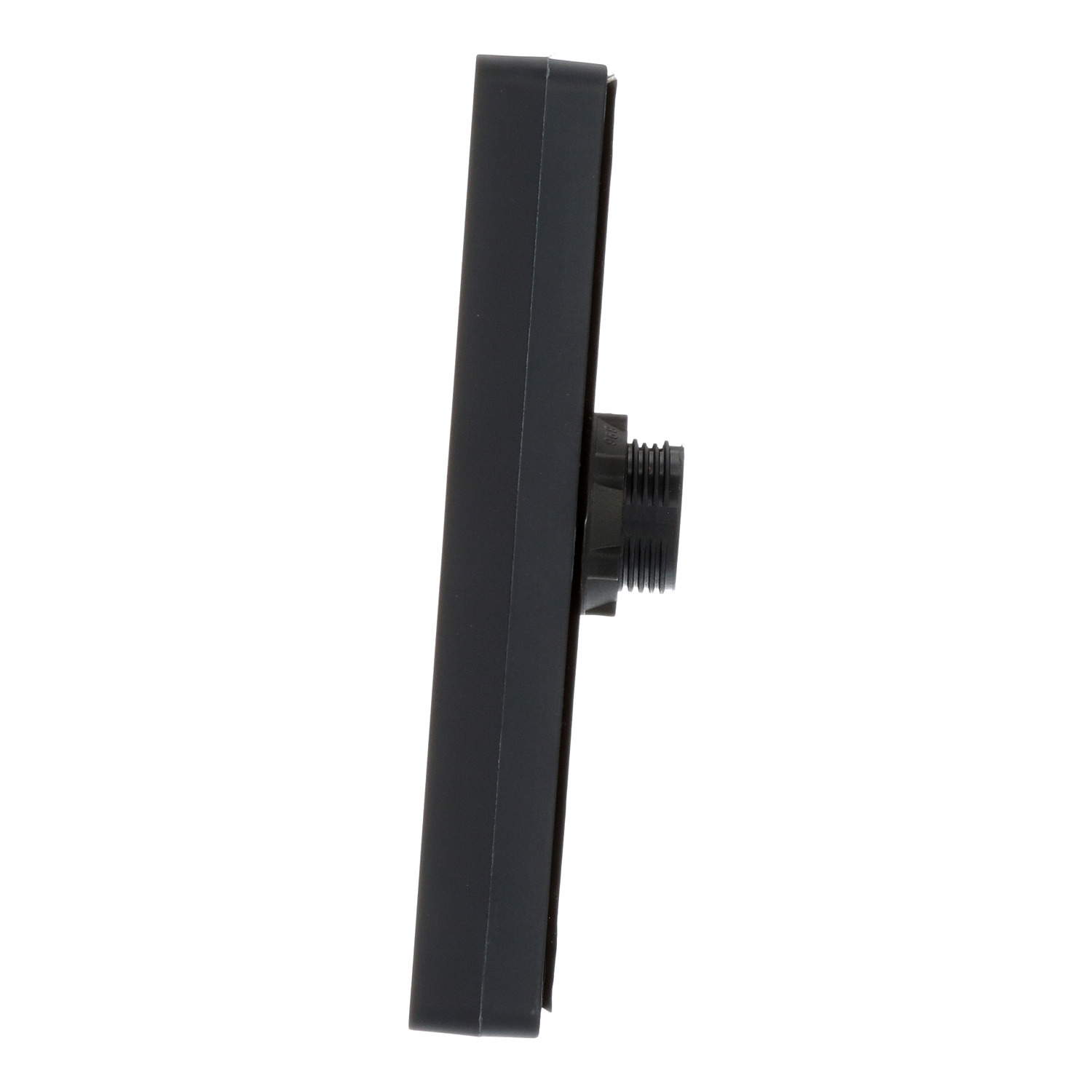

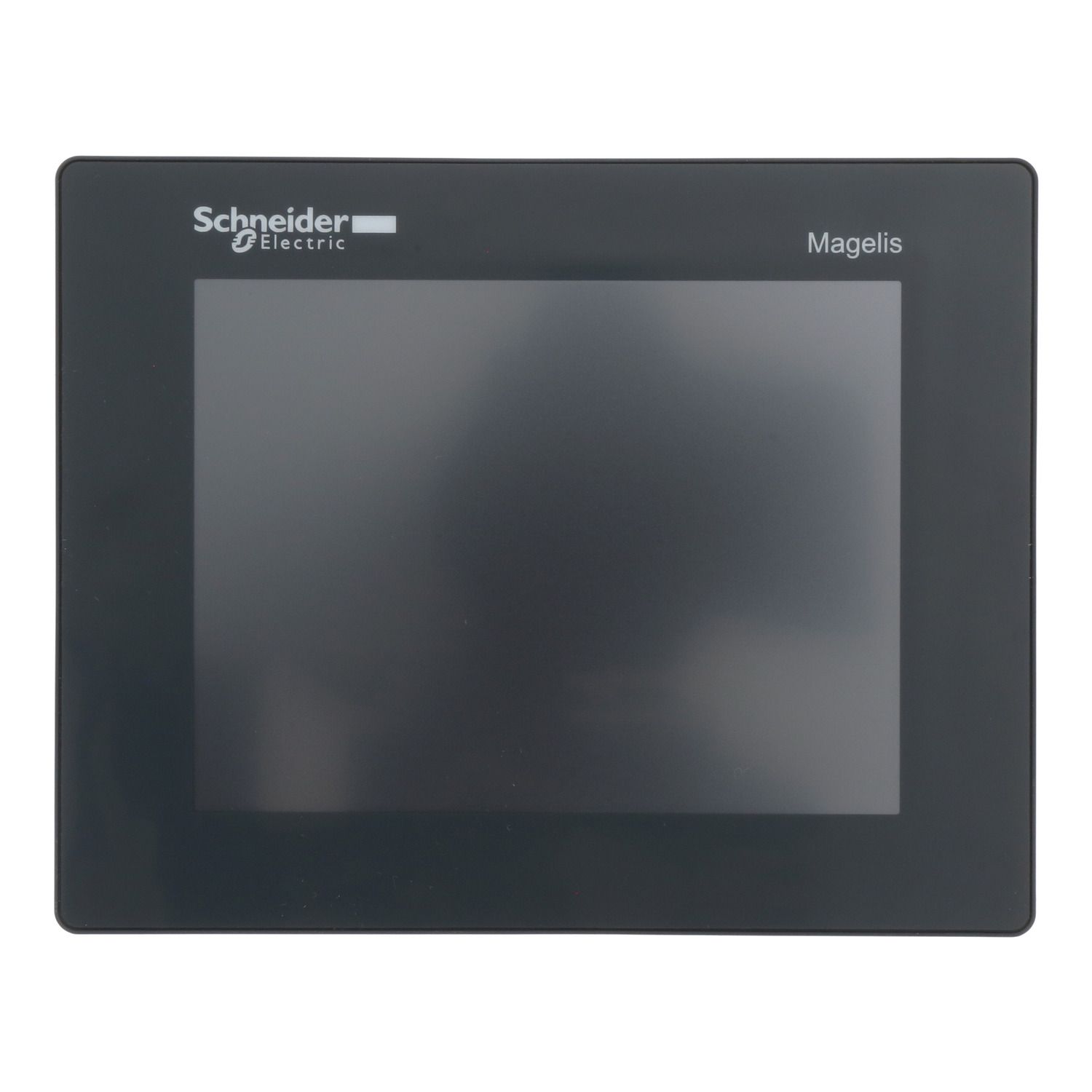

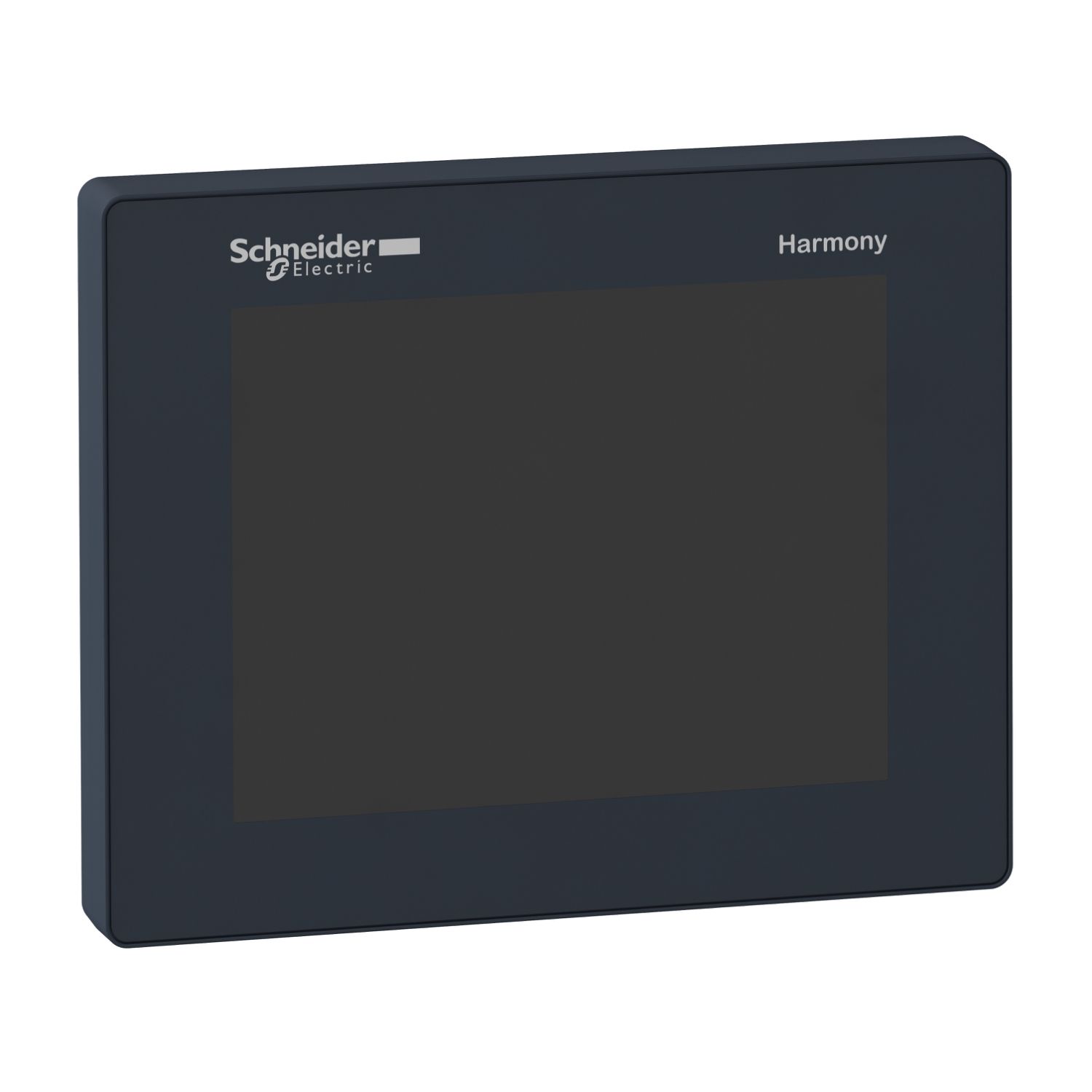

Small touchscreen display HMI, Harmony SCU, 5in7 front module Backlight LED Color TFT LCD
Manufacturer: Schneider Electric
SKU: HMIS85
GTIN: 3595864149059
$623.70 inc GST
Supported cards
Supported cards
The HMI small touchscreen features 5.7inch backlight LED color TFT LCD display, supports 320 x 240 pixels QVGA resolution. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It supports Korean, Chinese (simplified Chinese), Japanese (ANK, Kanji), ASCII and Taiwanese (traditional Chinese) character fonts. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 163mm (width) x 129.4mm (depth). It weighs 0.405kg. It is suitable for use with small machines, HVAC, pumping and packaging applications. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with the EcoStruxure Machine Expert, delivers adequate functionality for control of small machines.

Products specifications

Attribute name Attribute value
Main
Display size 5.7 inch
Range of product Harmony SCU
Product or component type small touchscreen display HMI
Pixel resolution 320 x 240 pixels QVGA
Complementary
Character font Japanese (ANK, Kanji), Taiwanese (traditional Chinese), ASCII, Chinese (simplified Chinese), Korean
Display type with backlit LED colour TFT LCD
Backlight lifespan 50000 hours with 65536 colours
View angle horiz x vert 60° bottom, 40° top, 60° right, 60° left
Height 129.15 mm
Depth 129.4 mm
Width 163 mm
Touch panel analogue
Net weight 0.405 kg
Brightness 16 levels via touch panel
Environment
Product certifications UKCA
