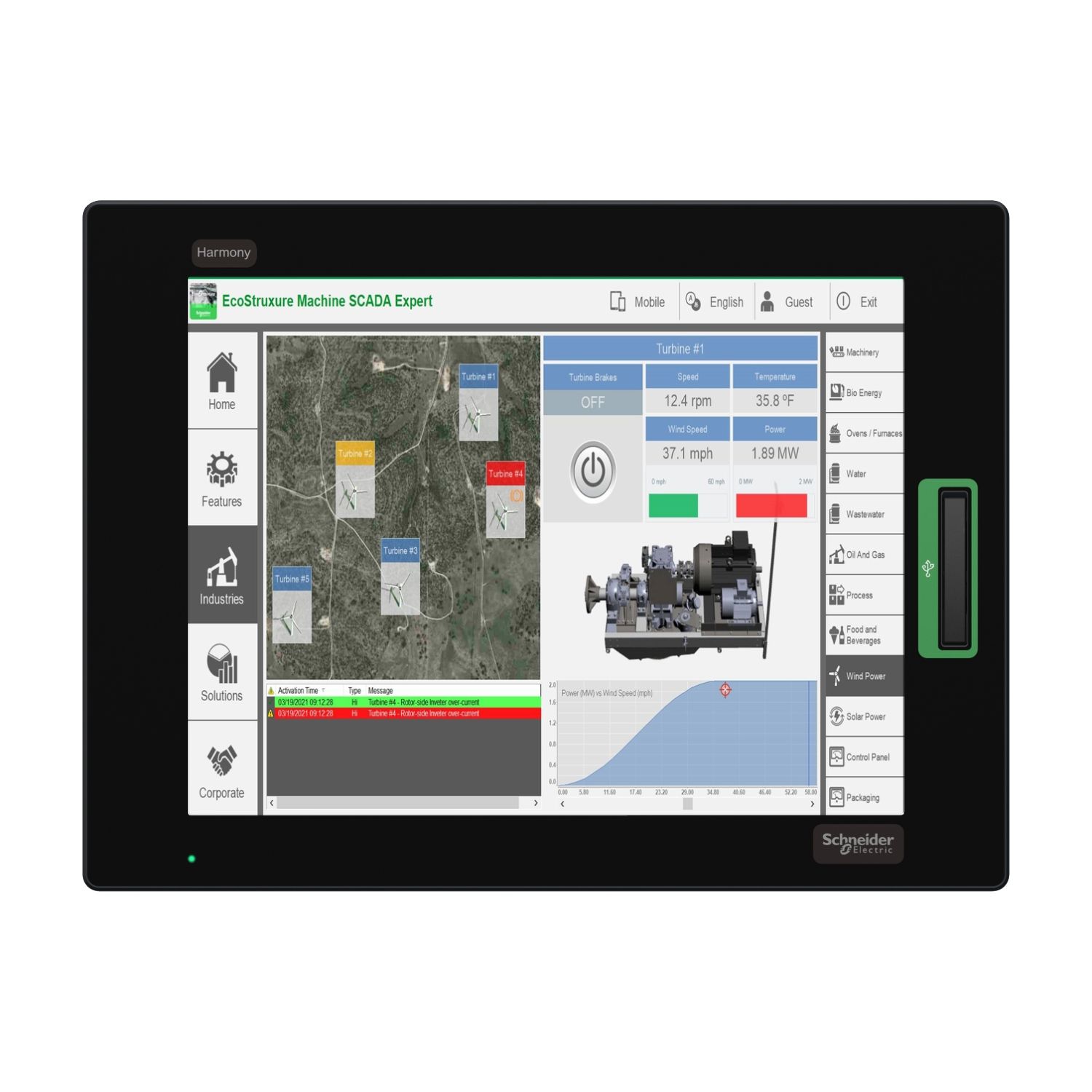

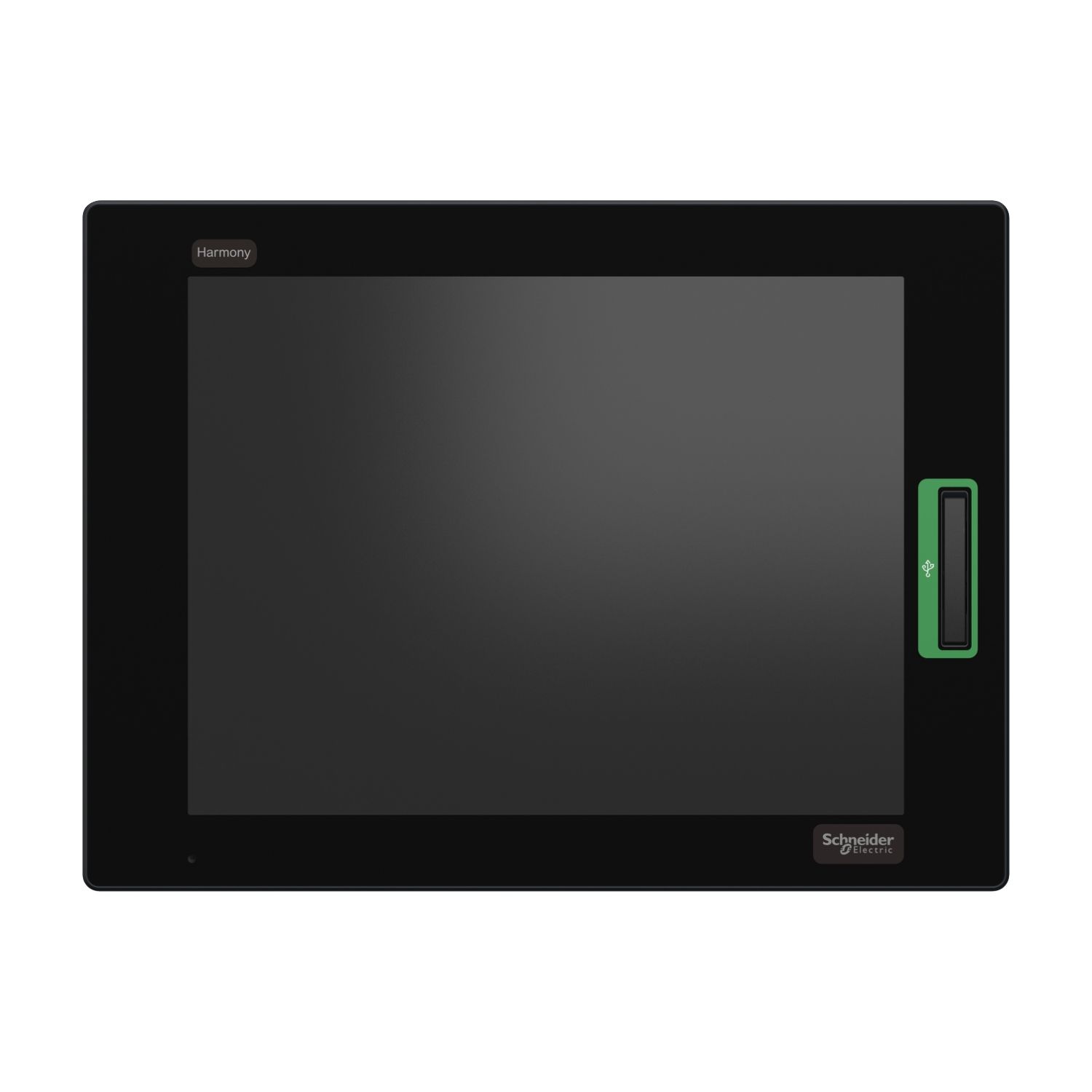

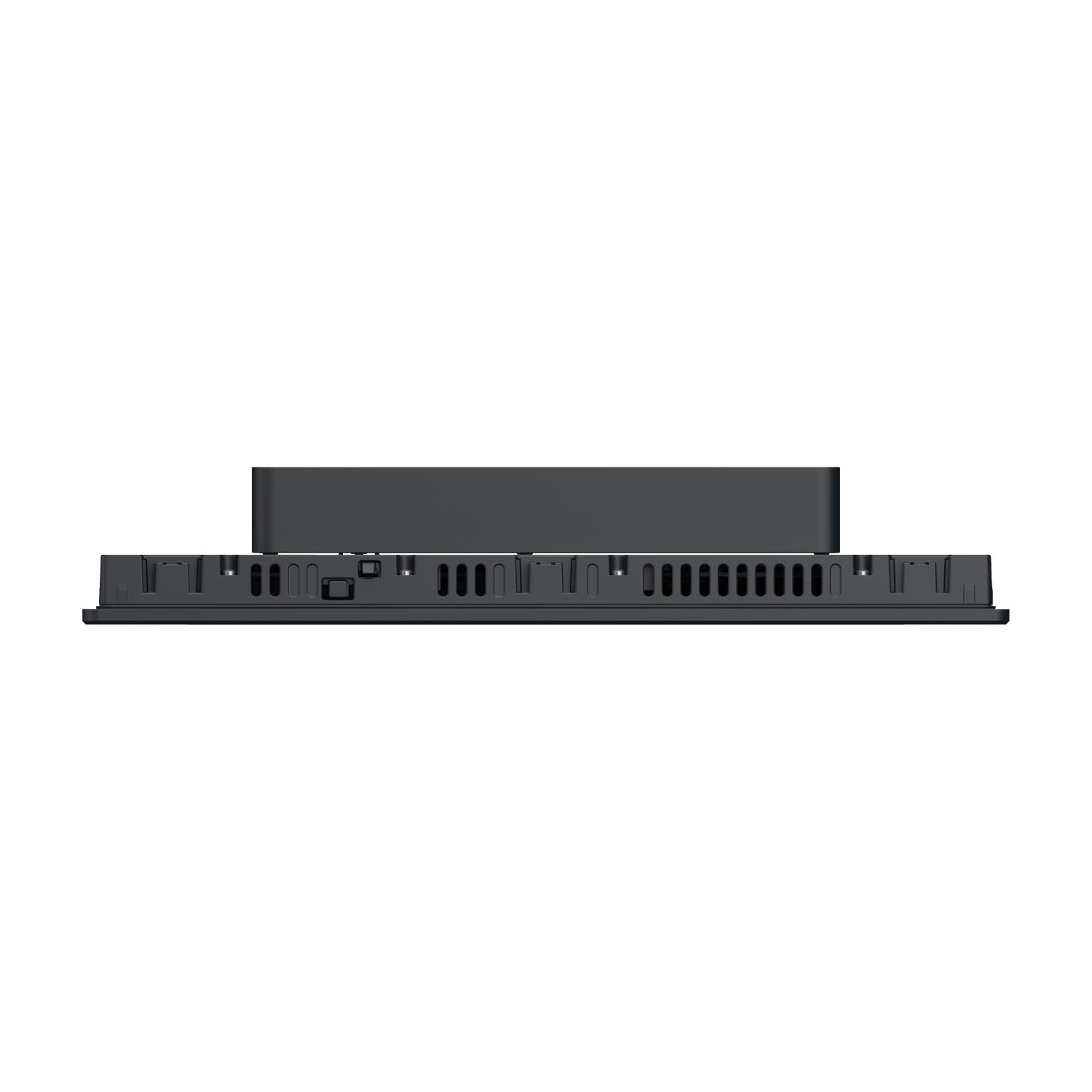

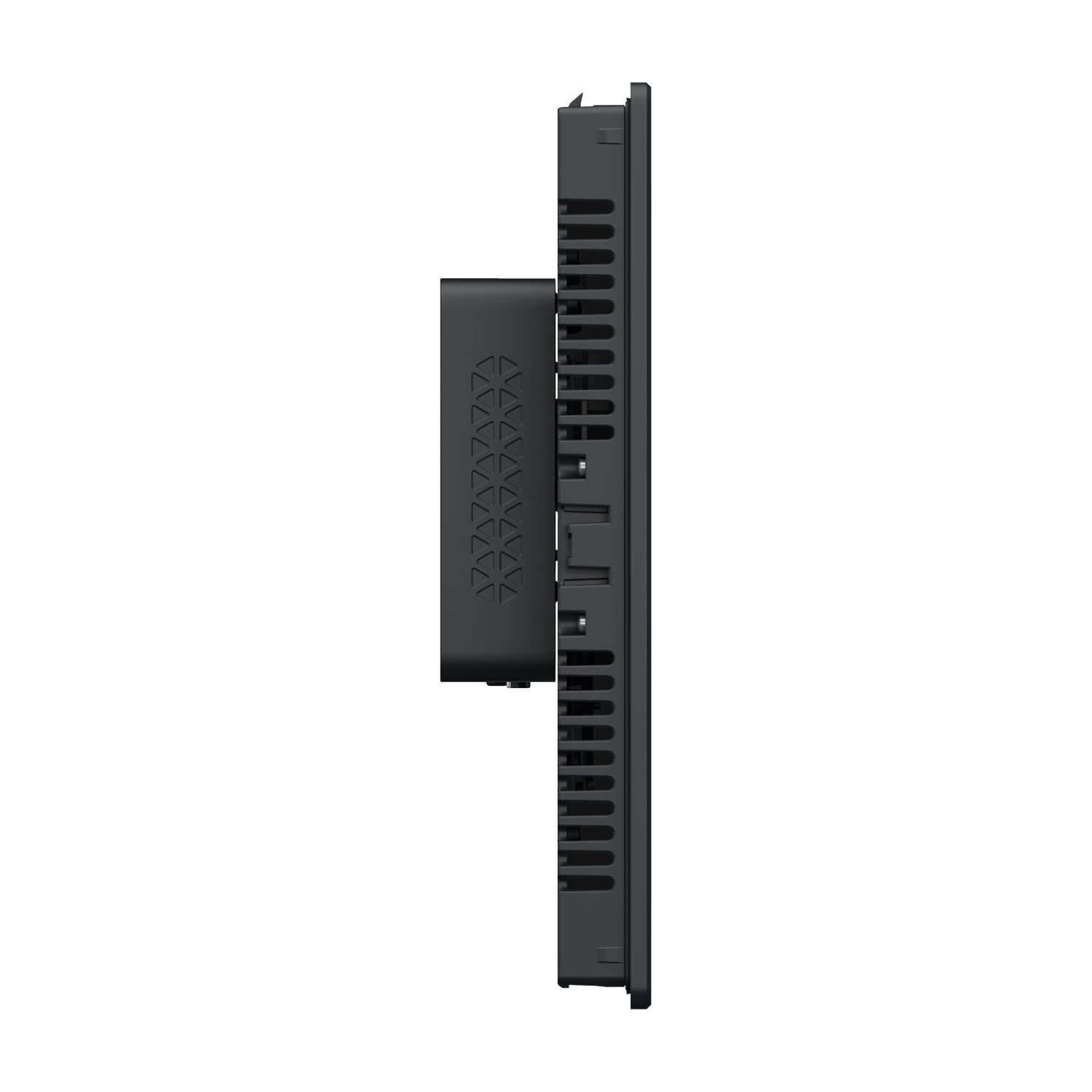

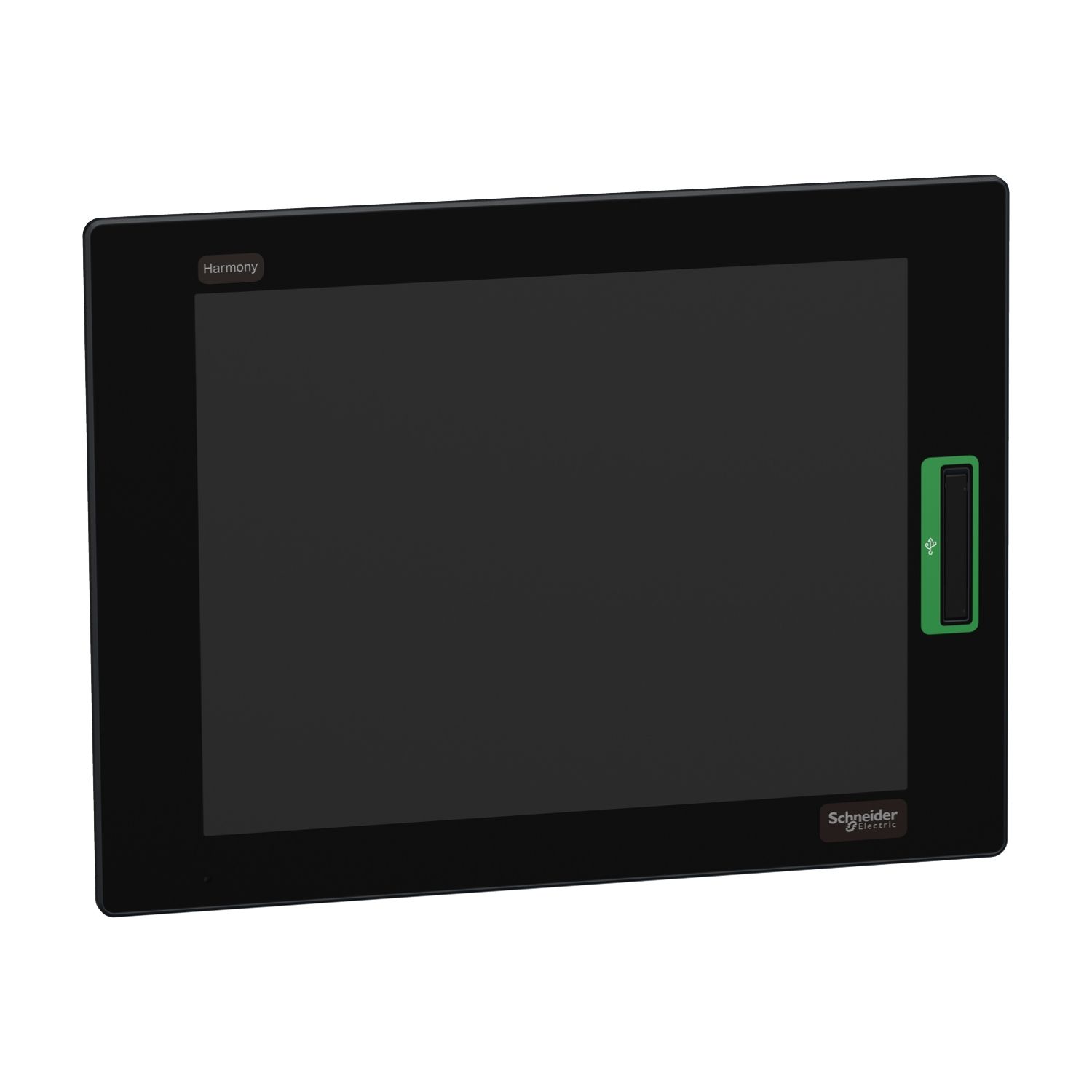

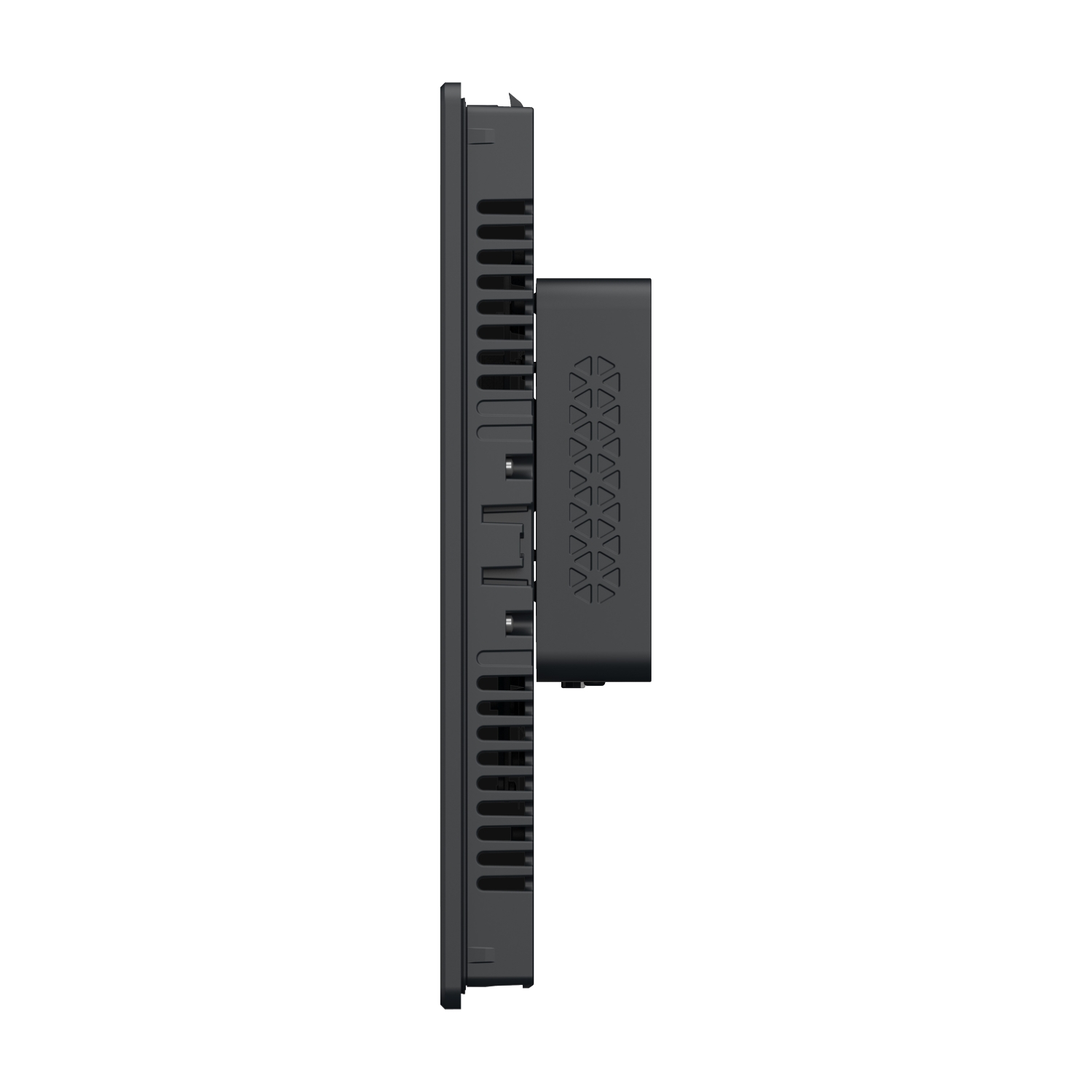

15.0 Industrial FPM, Harmony FP6, XGA, 16M colors, Analog Multi Touch (2 points), Front USB A/micro-B, DVI, USB Type B, 24V DC
Manufacturer: Schneider Electric
SKU: HMIFP6700TMD
GTIN: 3606481808219
Old price: $1,812.80 inc GST
$1,636.05 inc GST
Supported cards
Supported cards
This industrial flat panel monitor belongs to the Schneider Electric's Harmony HMI FP6 range. This 2 point Analog multi-touch HMIFP6 display has a glass-top surface design with backlight service life of 50,000 hours. HMIFP6700TMD is a 15.0 inch screen of 16 million colors and 1,024 × 768 pixel resolution (XGA). The modularity of the FP6 display facilitates fast deliveries, multiple choices, easier mounting, and optimum ergonomics. The front panel when properly installed in an enclosure provides IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), and Type 12 and Type 13 degree of protection. The power consumption when FP6 display is paired with Modular Boxes is 22.4Wmax. Its dimensions are 397mm (width) x 296mm (height) x 67.5mm (depth) and weighs 4.90Kg. Harmony FP6 industrial Flat Panel Monitor caters to the complex machine, line monitor and processes at Edge Control and Apps Analytics level of EcoStruxure. It complies with CE, RCM, UL 61010-2-201, UL 121201, and CSA C22.2 No. 61010-2-201, CSA C22.2 No. 213, IECEx/ATEX for use in Zone 2 gas/Zone 22 dust. This display when combined with any of the Harmony P6, Harmony iPCs, or third-party Boxes makes a Panel PC. It can be mounted on front enclosure or VESA 100 × 100 mount on the rear of Box PC. The stylish wide Harmony FP6 displays provide high visibility during operation featuring glass-top capacitive multi-touch panel with narrow frame and thin design.

Products specifications

Attribute name Attribute value
Main
Operating system Windows 10 (version 1809)
Range of product Harmony FP6
Product or component type touch panel screen
Complementary

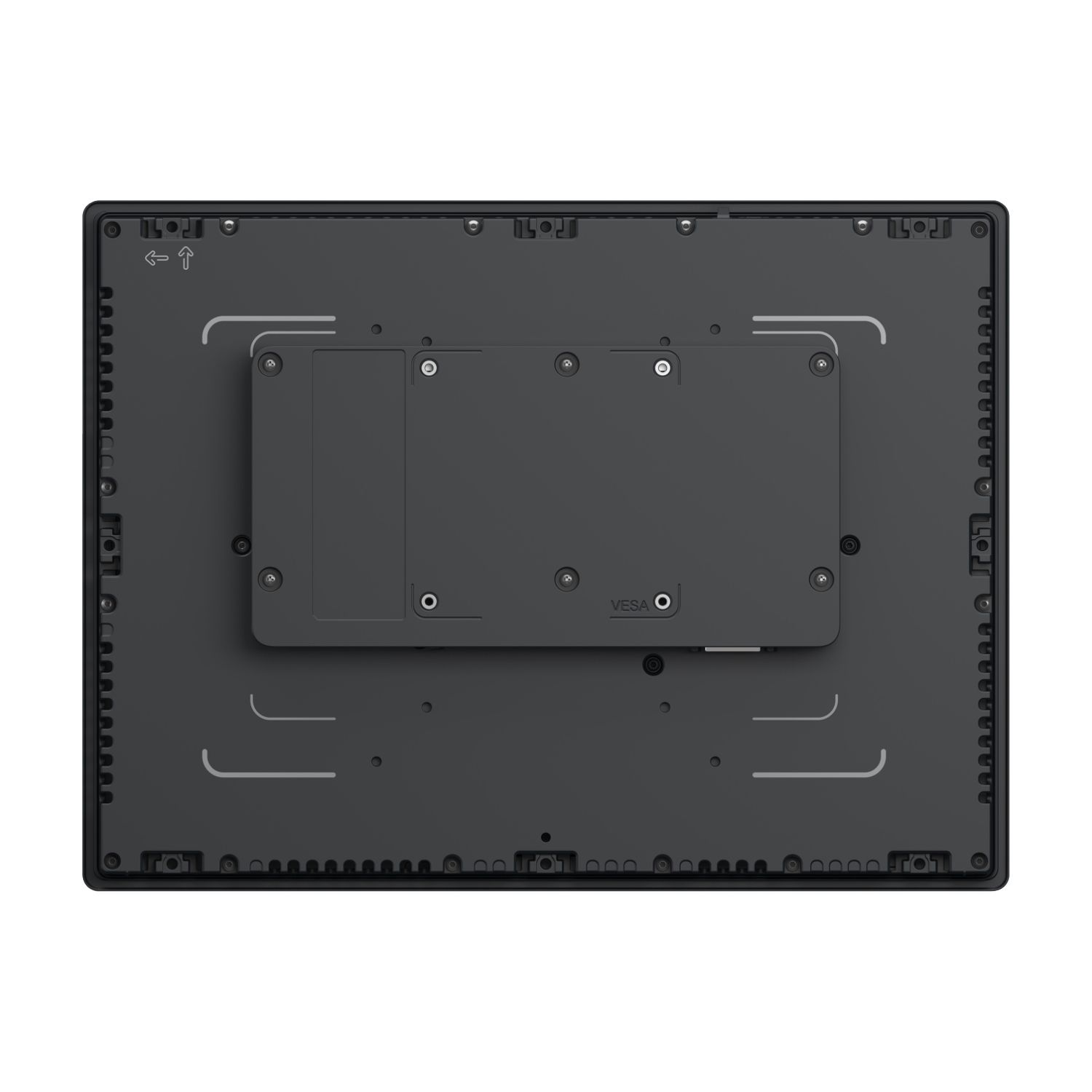

Device mounting direct mounting VESA, panel mounting
Type of cooling natural
Display type colour TFT LCD, LED
Display colour 16 million colours
Display size 15 inch
Cut-out dimensions 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) mm
Backlight lifespan 50000 hours at 25 °C
[Us] rated supply voltage 24 V DC
Height 296 mm
Aspect ratio 4:3
Depth 67.5 mm
Width 397 mm

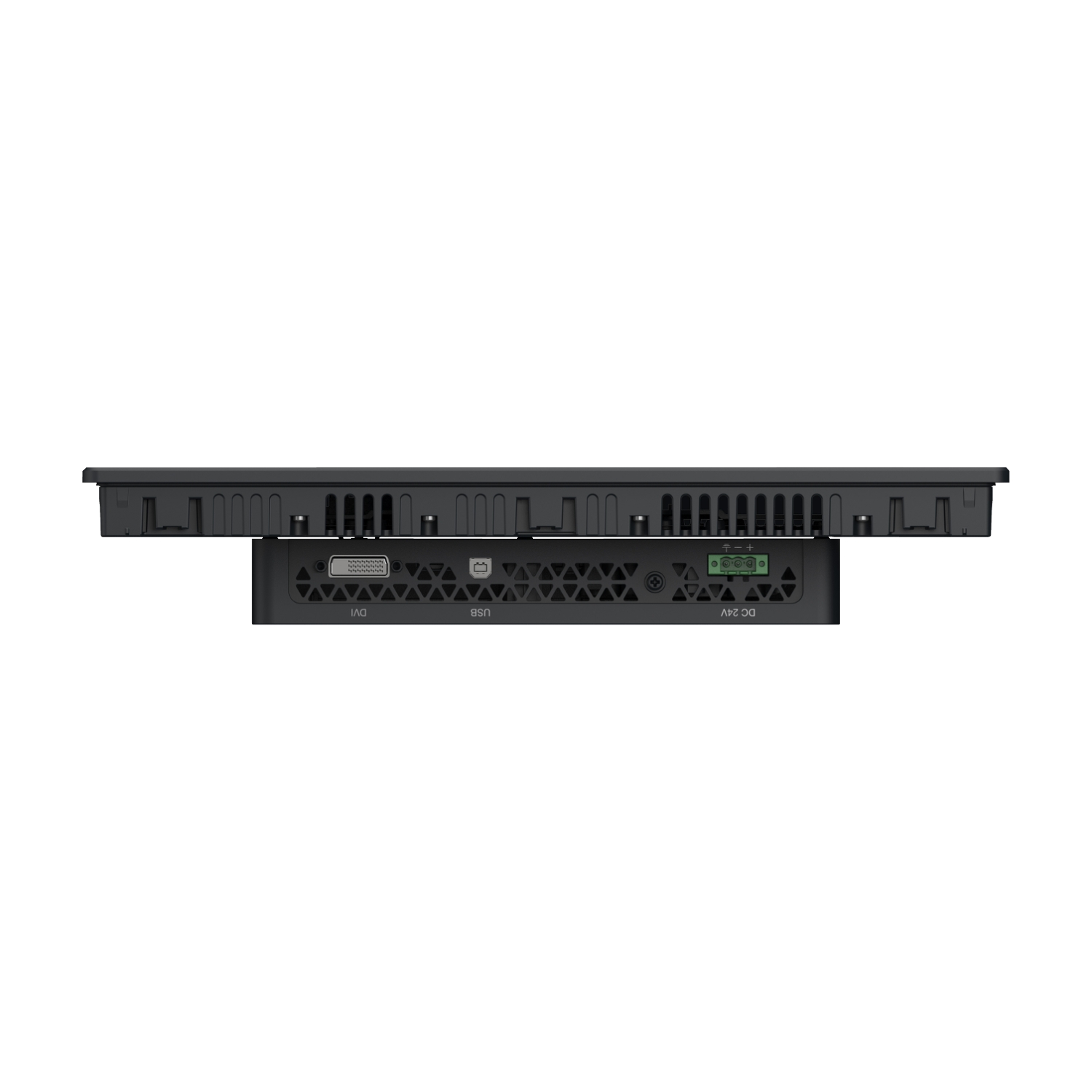

Integrated connection type USB type A USB 2.0 - 1.5 Mbit/s,  USB type B USB 2.0,  DVI-D video port
Touch panel multi touch analogue resistive
Net weight 4.9 kg
Display resolution 1024 x 768 pixels XGA
Inrush current 30 A
Pixel resolution 1024 x 768
Power consumption in W 22.4 W
Environment
IP degree of protection Type 13, Type 12, Type 4X, Type 1, IP67f, IP66f
Ambient air temperature for storage -20-60 °C
Pollution degree 2
Electromagnetic compatibility electrical fast transient/burst immunity test 1 kV signal ports conforming to IEC 61000-4-4, electrical fast transient/burst immunity test 2 kV power ports conforming to IEC 61000-4-4, electrostatic discharge immunity test 8 kV air discharge conforming to IEC 61000-4-2 level 3, electrostatic discharge immunity test 6 kV contact discharge conforming to IEC 61000-4-2 level 3
Product certifications IECEx zone 22, IECEx zone 2 (DC model, front USB cover must be locked with screw), cULus Class 1 Division 2, ATEX zone 22 dust, ATEX zone 2, DNV (except 22" wide display), UKCA, KC, RCM
Ambient air temperature for operation 0-55 °C
Operating altitude 2000 m
Shock resistance 147 m/s² 3 shocks in each direction X, Y and Z, 147 m/s² conforming to IEC 61131-2
Vibration resistance 1 gn - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2, 1 gn (f = 9-150 Hz) - fixed amplitude - conforming to IEC 61131-2, 1 gn (f = 5-9 Hz) - single amplitude - conforming to IEC 61131-2
Standards CSA C22.2 No 61010-2-201, UL 61010-2-201,  FCC part 15, CE
