Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating system | Linux Yocto (Linux Kernel 4.4.38), Linux Yocto (BitBake branch 1.30.0), Linux Yocto (Linux Yocto project Krogoth 2.1) |

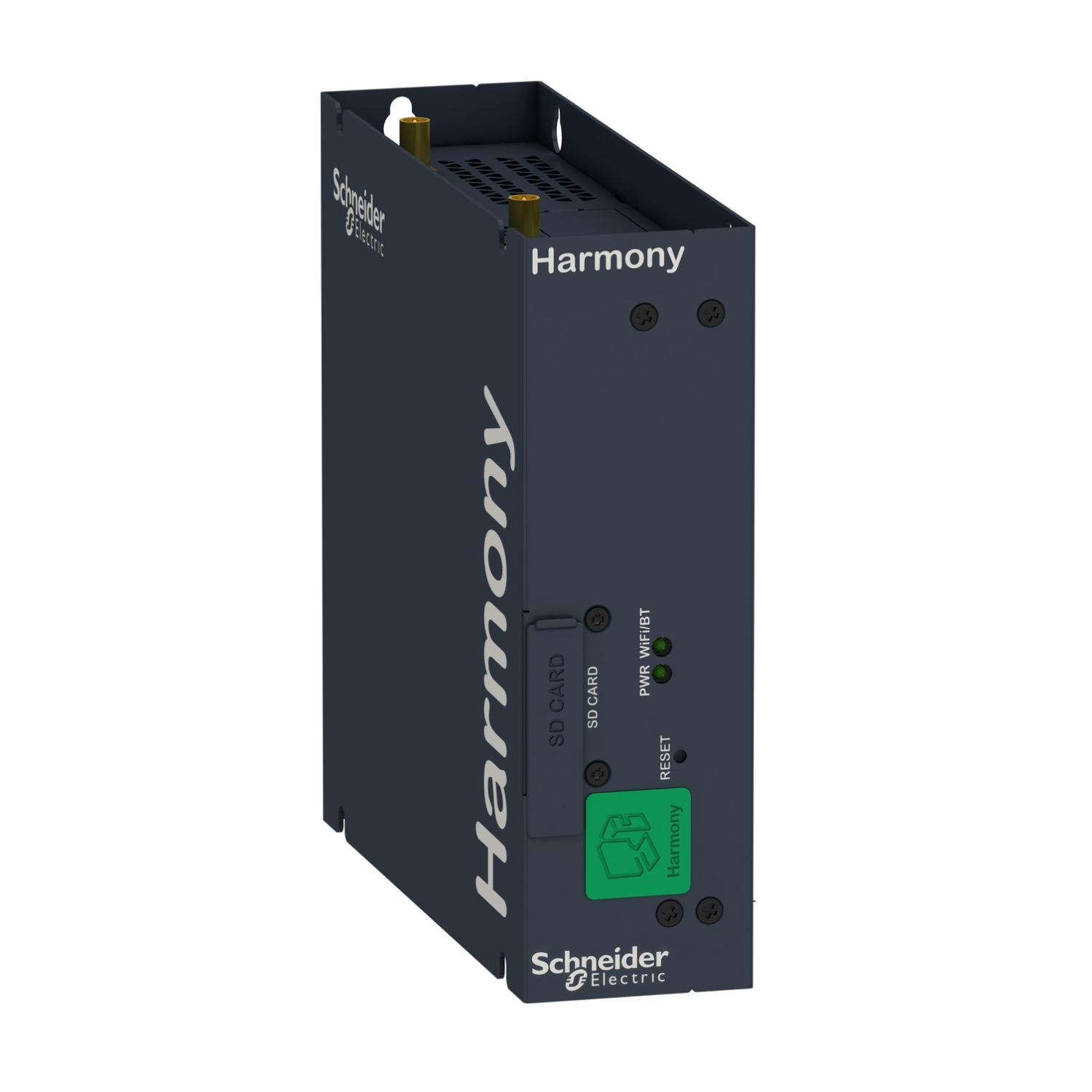

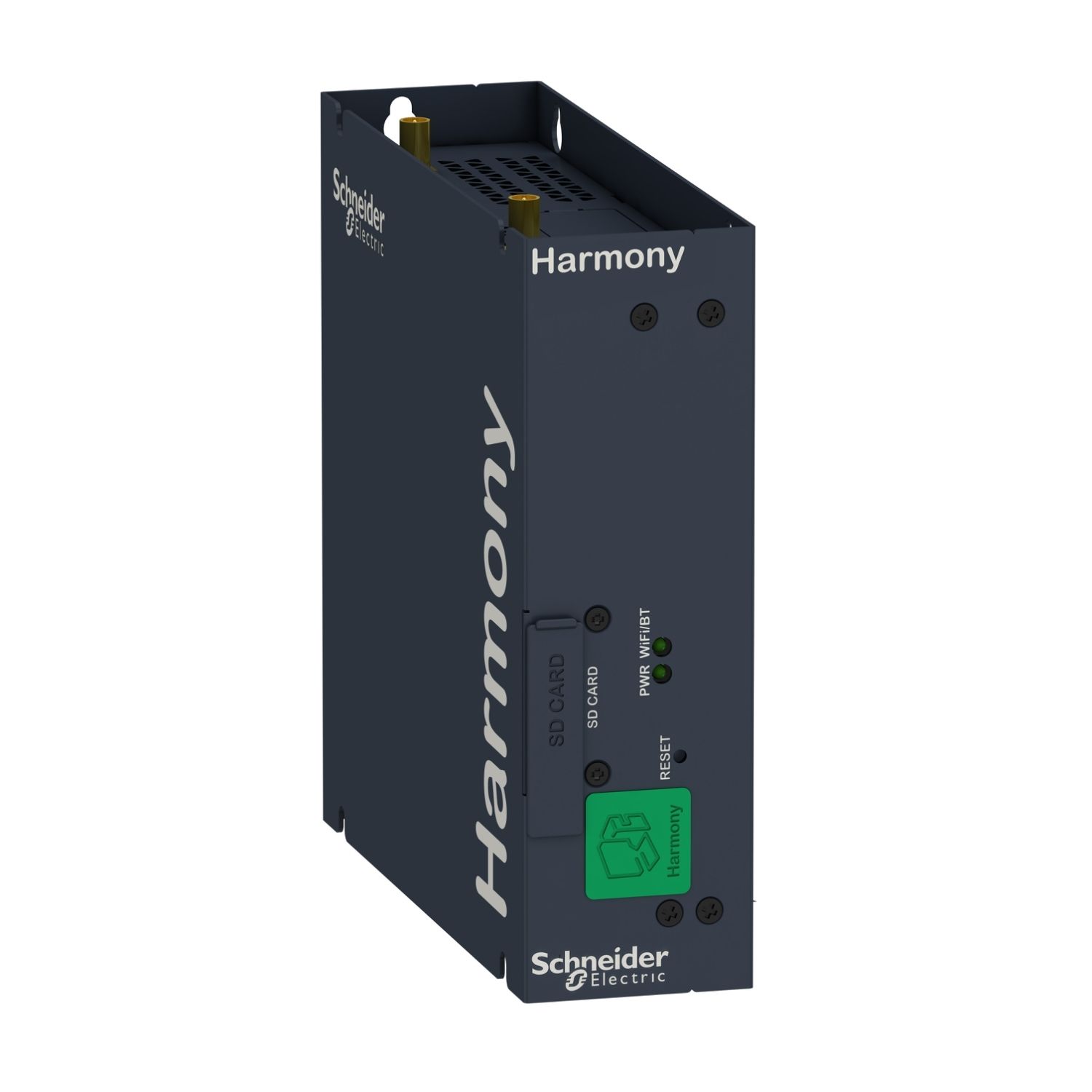

| Device short name | IIoT Edge Box Core |
| Processor name | ARM Cortex-A53 quad core 1.2 GHz Qualcomm Snapdragon 410 |
| Software package | Node-RED and system nodes default IIoT Wiring |
| Range of product | Harmony iPC |
| Range compatibility | HMIYBIN2AIM21 Interface M.2 2x Analog Input 0-10V/4-20mA, HMIYMIN8AI1 Interface Mini PCIe 8x Analog Input 0-10V, HMIYMIN4GEU1 Interface Mini PCIe 4G EU for iPC, HMIYMIN4GUS1 Interface Mini PCIe 4G US for iPC |
| Accessory / separate part destination | Celullar 4G and analog Inputs |
| Product or component type | IIoT Edge Box Core |
| Complementary | |
| Data storage equipment | 64 GB eMMC (soldered) |
| Type of cooling | fanless |
| Display resolution | 1920 x 1080 pixels at 60 Hz |
| Number of slots available for expansion | 1.0 slot(s) for M.2 (not for storage), 1.0 slot(s) for mini PCIe |
| Free slots | 1 SD card SD 3.0, max raw transfer rate 104 MBps . Supports SD,SDHC,SDXC (Standard 32 mm x 24 mm) |
| Supply voltage limits | 12-24 V |
| Depth | 46 mm |
| Watchdog timer | 1-255 ms |
| Control type | resettable |
| Height | 150 mm |
| Electrical connection | connector, connector type: SMA - location: top, screw connector, connector type: pin, 1 way, circuit application: ground - location: bottom |
| Width | 157 mm |
| Communication network type | 1.0 WCN3620 Bluetooth 4.1, 1.0 WCN3620 Wi-Fi 2.4 GHz conforming to IEEE 802.11 b/g/n |
| Integrated connection type | TPM connector Ver 2.0 for cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed on motherboard, USB 2.0 port with 2.0 USB type A, transmission rate: 480 Mbit/s on bottom, COM1 serial link for battery backup with 1 male SUB-D 9 RS232/422/485 non-isolated, Ethernet with 2 RJ45 SMSC LAN7500, transmission rate: 10/100/1000 Mbps on bottom IEEE 1588 not supported, HDMI for For configuration only with 1 on bottom |
| Impregnation material | conformal coated |
| Memory description | 2 GB RAM LPDDR3 internal (not expandable) |
| Mounting location | wall mounting, flat mounting, book mounting |
| Net weight | 1 kg |
| Main type | IIoT Edge Box Core |
| Cyber secured boot | Secure password boot |
| Number of slots | 1 slot(s) for M.2 not for storage, , 1 slot(s) for mini PCI Express full-size with optional interface plate, |
| Connector type | 1.0 GPIO Pin, 8 pins bottom(Software utility provided) |
| Inrush current | 0.43 A |
| [Us] rated supply voltage | 100...240 V AC power supply, 24 V DC power supply |
| Power consumption in W | 16 W |
| Environment | |
| Relative humidity | 10-95 % non-condensing conforming to EN/IEC 60068-2-30 |
| Ambient air temperature for storage | -20-60 °C conforming to IEC 60068-2-14, -20-60 °C conforming to IEC 60068-2-2 |
| Directives | 2006/95/EC - low voltage directive, 2004/108/EC - electromagnetic compatibility |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Electromagnetic compatibility | conducted and radiated emissions class A conforming to EN 55022, disturbing field emission class A conforming to EN 55011, immunity to high frequency interference conforming to IEC 61000-4 |
| Product certifications | ANATEL, FAC, TELEC, SRRC, IC, FCC RF, RED, EAC, RCM, CCC, UL 60950 for IT equipments, cULus, CE |
| Standards | UL 60950, FCC part 15, EN 61131-2, EN 61000-6-4, class A group 1 EN 55011 |
| Ambient air temperature for operation | 0-45 °C flat mounting on mini PCIe, 0-45 °C on mini PCIe, 0-50 °C flat mounting, 0-50 °C (by default) conforming to EN/IEC 60068-2-2 |
| Operating altitude | 2000 m conforming to EN/IEC 60664-1 |
| Quality labels | CE |
| Vibration resistance | 2 gn (f = 5-500 Hz) eMMC |
