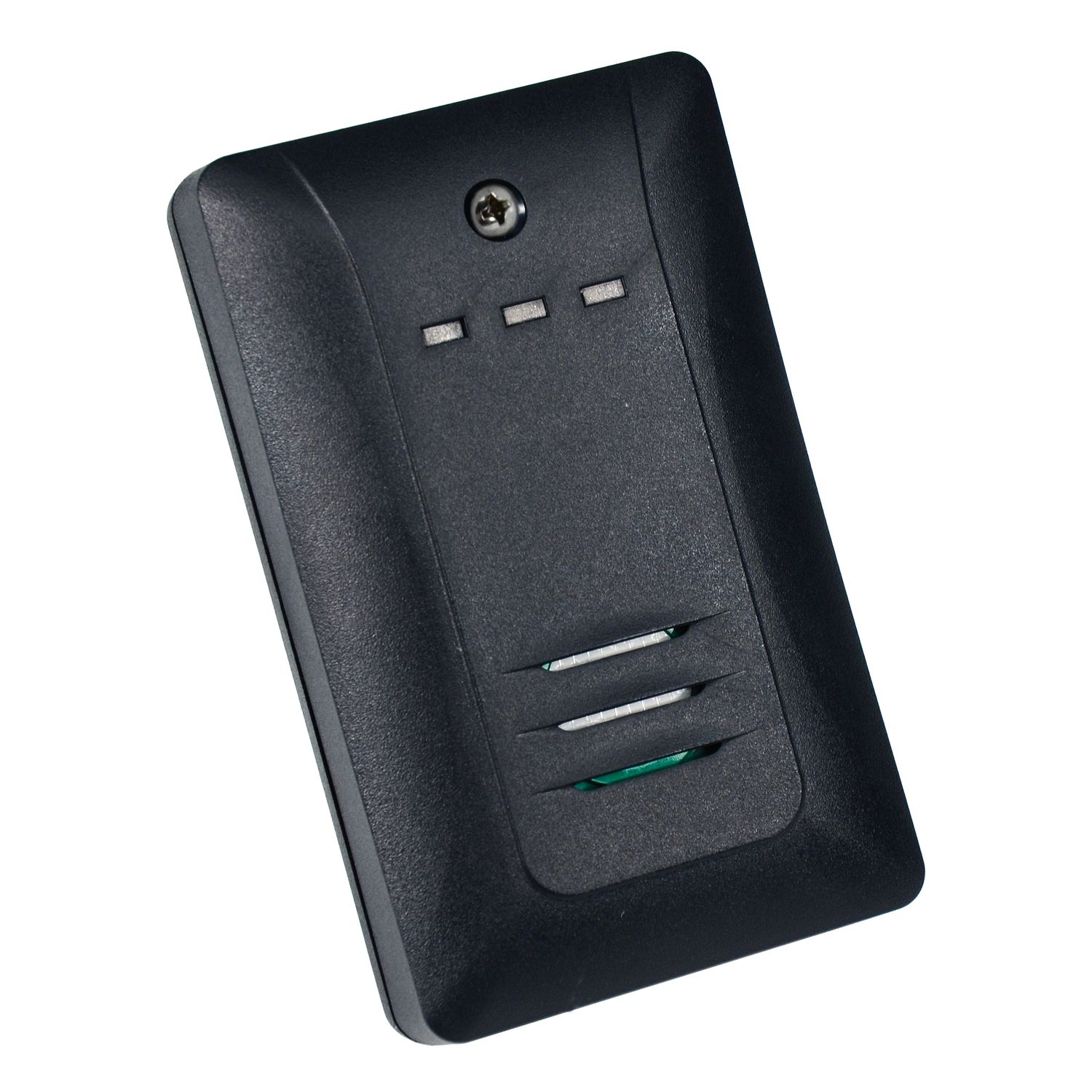

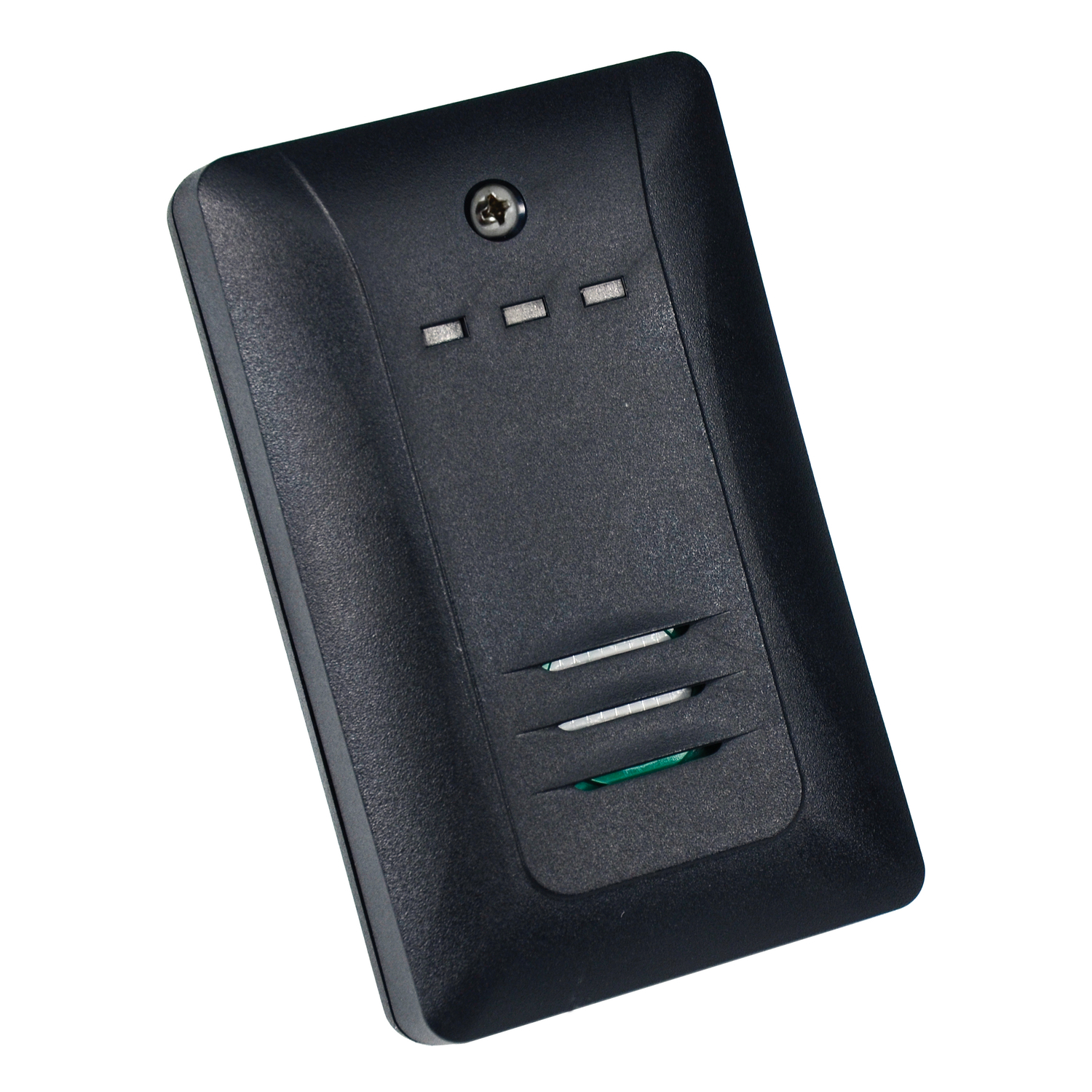

GWN Series wall mounted gas platform, 1-Gang, Ind Relay
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Mounting location | 1-gang electrical box |
| IP degree of protection | IP20 |
| Location | living space, plant room, parking garage |
| Depth | 57 mm |
| Colour | black |
| Output type | relay |
| Width | 70 mm |
| Product or component type | sensor |
| Enclosure material | ABS thermoplastic |
| Local signalling | red LED high setpoint, yellow LED low setpoint, green LED on |
| Standards | UL 61010-1 |
| Relative humidity | 0-90 % RH, non-condensing |
| Embedding depth | 30 mm |
| Range of product | GWNP Series |
| AWG gauge | AWG 24...AWG 12 |
| Height | 113 mm |
| Ambient air temperature for operation | -20-50 °C |
| [Us] rated supply voltage | 15...30 V DC, 24 V DC, 20...28 V AC, 24 V AC |
| Operating current | 60 mA max |
| Product certifications | ETL, CE |
| Sensor model | GWN |
