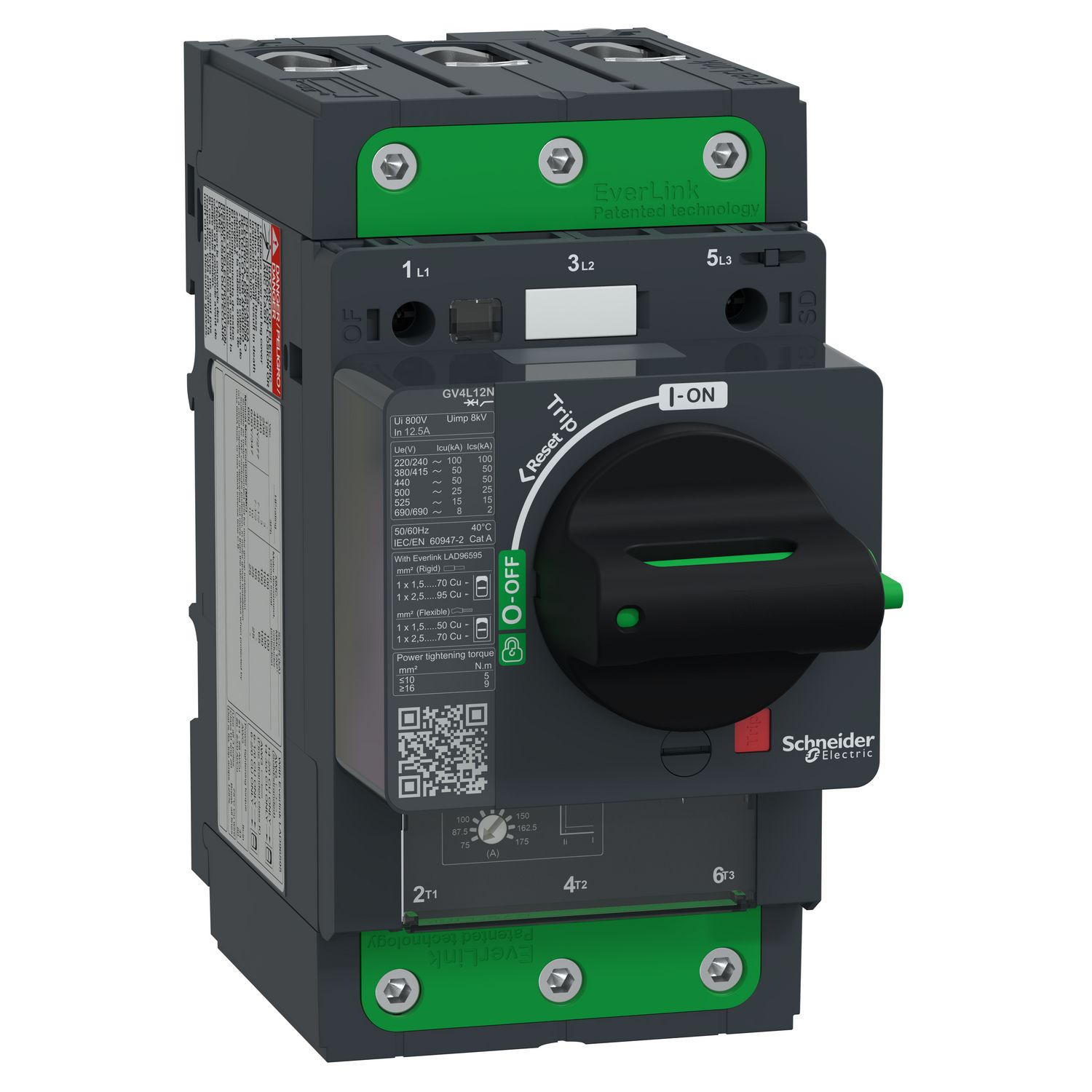

TeSys GV motor circuit breaker, 3 poles (3P), 12.5A/690V, for protection of 3-phase motors 3-5.5kW@400V. It provides magnetic protection, breaking capacity Icu 50kA@400V, start-stop control by rotary handle, connection by Everlink BTR screw terminals. Magnetic protection adjustable by dial, setting range 6-14 In. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). To be used in association with a class 10 or 20 thermal overload relay to complete motor protection. Multi standards certified (IEC, CCC, EAC, Marine).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GV4L |
| Device application | motor protection |
| Range | TeSys Deca |
| Range of product | TeSys GV4 |
| Trip unit technology | electronic, magnetic |
| Product name | TeSys Deca, TeSys GV4 |
| Product or component type | motor circuit breaker |
| Complementary | |
| Colour | grey (RAL 7016) |
| Mechanical durability | 40000 cycles |
| Tightening torque | 5 N.m for cable 1.5-10 mm², 9 N.m for cable 16-95 mm² |
| Suitability for isolation | yes conforming to IEC 60947-1 |
| Breaking capacity | 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2, 8 kA Icu at 660...690 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 |
| Electrical durability | 40000 cycles for AC-3 at 440 V In, 40000 cycles for AC-3 at 440 V In/2 |
| Power dissipation per pole | 6.1 W |
| Control type | rotary handle |
| Maximum operating rate | 25 cyc/h |
| Magnetic tripping current | 75-175 A |
| Height | 155 mm |
| Mechanical robustness | shocks: 15 gn 11 ms conforming to IEC 60068-2-27, vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6, vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6 |
| Depth | 165 mm |
| Width | 81 mm |
| Poles description | 3P |
| Direct connector | without |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| Net weight | 1.65 kg |
| Utilisation category | AC-3 conforming to IEC 60947-4-1, category A conforming to IEC 60947-2 |
| Connections - terminals | EverLink BTR screw connectors (bottom) 1 cable(s) 2.5-70 mm² - flexible, EverLink BTR screw connectors (bottom) 1 cable(s) 2.5-95 mm² - solid, EverLink BTR screw connectors (top) 1 cable(s) 1.5-50 mm² - flexible, EverLink BTR screw connectors (top) 1 cable(s) 1.5-70 mm² - solid |
| Operating position | any position |
| Motor power kW | 11-11 kW at 660...690 V AC 50/60 Hz, 9-9 kW at 660...690 V AC 50/60 Hz, 7.5-7.5 kW at 500 V AC 50/60 Hz, 5.5-5.5 kW at 500 V AC 50/60 Hz, 5.5-5.5 kW at 400...415 V AC 50/60 Hz, 4-4 kW at 400...415 V AC 50/60 Hz, 7.5-7.5 kW at 660...690 V AC 50/60 Hz, 5.5-5.5 kW at 660...690 V AC 50/60 Hz, 4-4 kW at 500 V AC 50/60 Hz, 3-3 kW at 500 V AC 50/60 Hz, 3-3 kW at 400...415 V AC 50/60 Hz |
| [Ith] conventional free air thermal current | 115 A conforming to IEC 60947-4-1 |
| Rated duty | continuous conforming to IEC 60947-4-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [In] rated current | 12.5 A |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 60695-2-11 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Ambient air temperature for storage | -50-85 °C |
| Pollution degree | 3 |
| Climatic withstand | conforming to IACS E10 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Operating altitude | 5000 m |
| Standards | EN/IEC 60947-2, EN/IEC 60947-4-1 |
