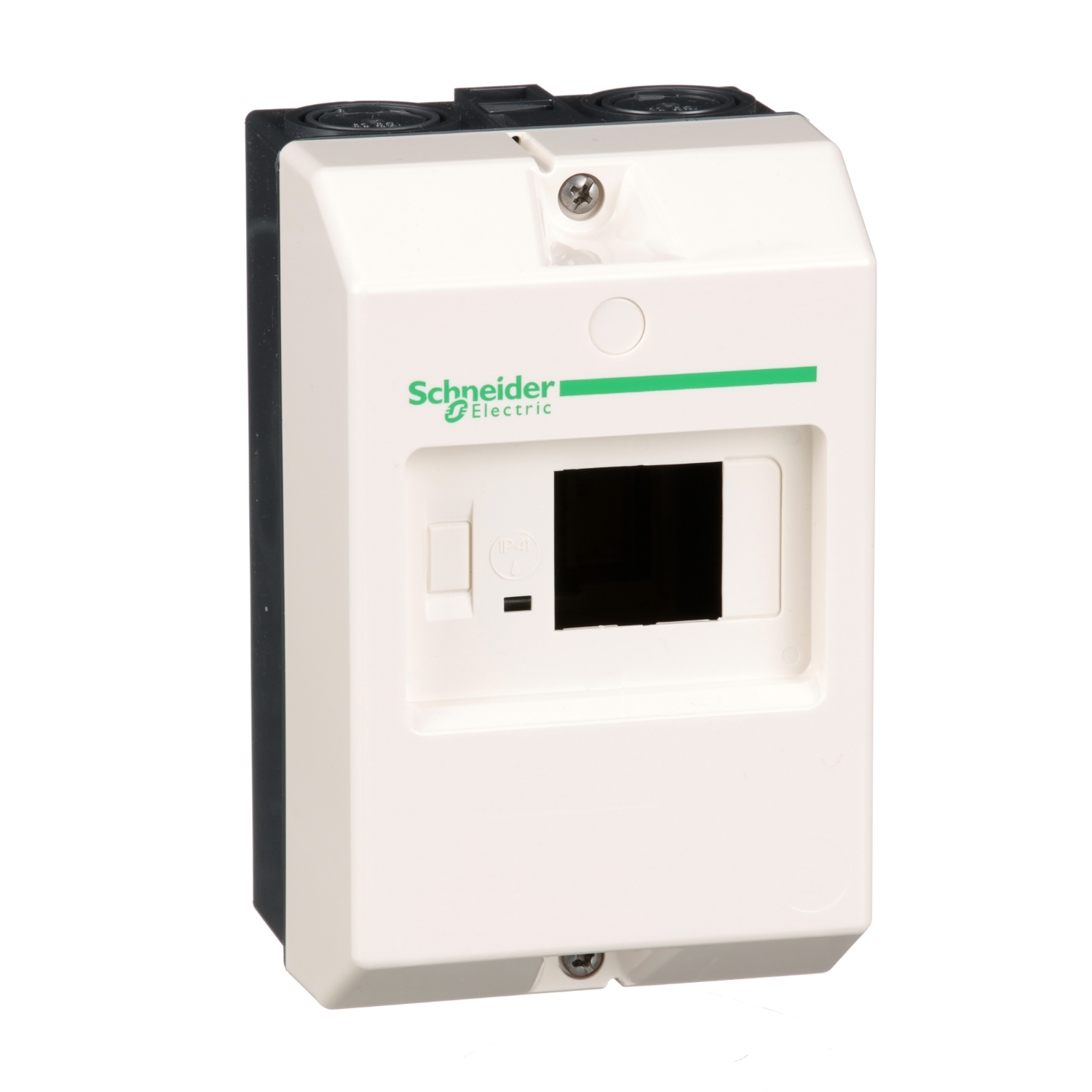

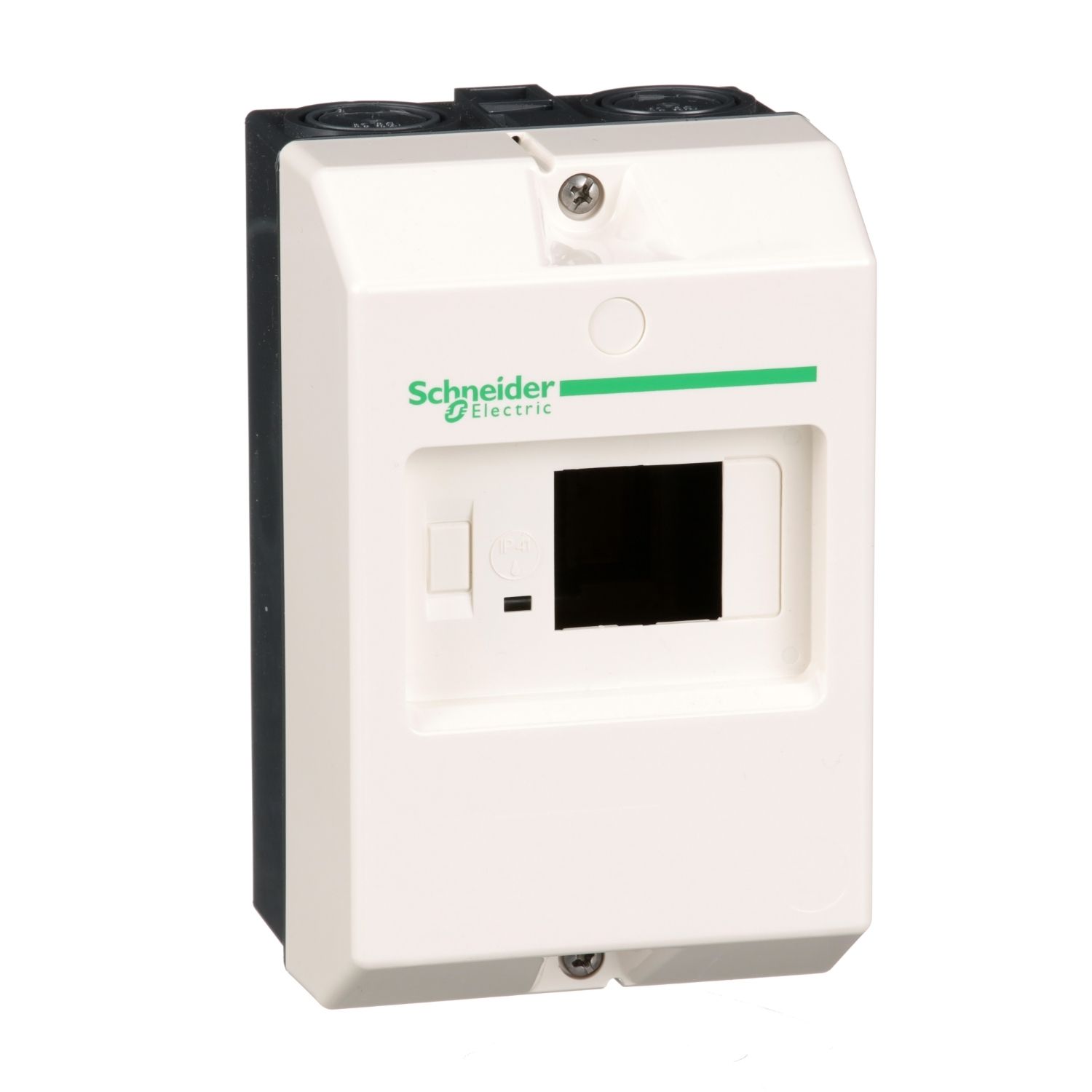

TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP41 protection. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GV2MC |
| Product compatibility | GV2ME |
| Range | TeSys |
| Enclosure/cubicle description | surface mounting |
| Product or component type | enclosure |
| Accessory / separate part category | mounting accessory |
| Range of product | TeSys GV2 |
| Complementary | |
| Auxiliary mounting location | right, left |
| Depth | 84 mm |
| Width | 93 mm |
| Compatibility code | GV2MC |
| Height | 147 mm |
| Environment | |
| Environmental characteristic | standard environment |
| IP degree of protection | IP41 |
Only registered users can write reviews
Related products

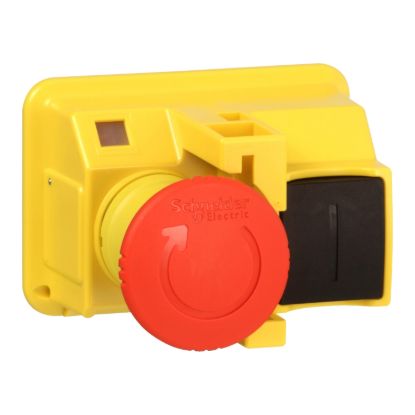

Emergency stop pushbutton,TeSys Deca Fram 2,turn to release,for GV2M*01 enclosures
GV2K031
Emergency stop pushbutton,TeSys Deca Fram 2,turn to release,for GV2M*01 enclosures
$152.02 inc GST
$60.34 inc GST

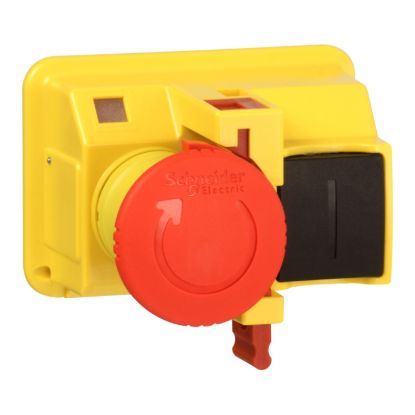

Emergency stop pushbutton,TeSys Deca Fram 2,turn to release,padlocking,for GV2M*01 enclosures
