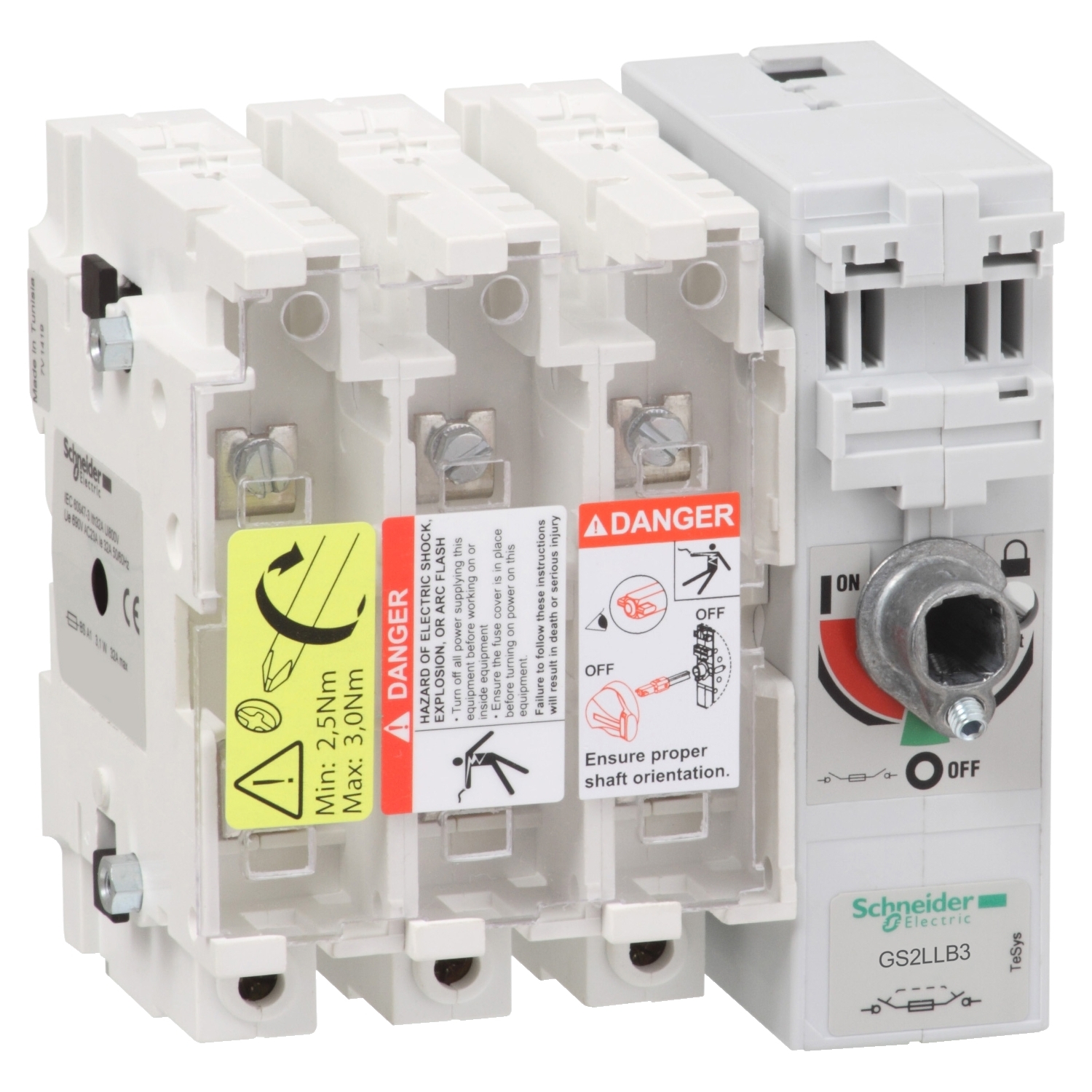

TeSys GS fuse switch-disconnector, 3 poles (3P), 160A/750V, to be used with type BS fuse links size A4 up to 160A, for motor applications up to 80kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). Screw terminals to be equipped with upstream and downstream 3P terminal shrouds GS1AP33 (to be ordered separately), it provides high short circuit current rating 100kA@400V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). Multi standards certified (IEC, Marine).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GS2L |
| Poles description | 3P |
| Fuse type | BS |
| [Ie] rated operational current | 160 A at 500 V AC-23B, 160 A at 500 V AC-23A, 160 A at 400 V AC-23B, 160 A at 400 V AC-23A, 125 A at 690 V AC-23B, 125 A at 690 V AC-23A, 125 A at 440 V 2 poles in series per phase DC-23B, 125 A at 440 V 2 poles in series per phase DC-23A |
| Contacts type and composition | 3 NO |
| Range | TeSys |
| Product name | TeSys GS |
| Product or component type | switch-disconnector-fuse |
| Protected poles description | 3t |
| Network type | AC, DC |
| [Ith] conventional free air thermal current | 160 A (at 40 °C) |
| Fuse size | A4 |
| Network frequency | 50/60 Hz |
| Complementary | |
| Breaking capacity | 1280 A at 400 V (AC-23B) |
| Rated operational power in W | 110 kW at 690 V, 110 kW at 500 V, 80 kW at 400 V |
| Tightening torque | power circuit: 12-12 N.m |
| Compatibility code | GS2L |
| Mechanical durability | 10000 cycles |
| Electrical durability | 200 cycles DC-23B, 200 cycles DC-23A, 1000 cycles AC-23B, 1000 cycles AC-23A |
| [Icm] rated short-circuit making capacity | 80 kA at 400 V with protection by gG fuses |
| [Ui] rated insulation voltage | 750 V AC 50/60 Hz |
| Short-circuit withstand | 22.7 kA |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Making capacity | 1600 A at 400 V AC-23B |
| Connections - terminals | power circuit: lugs-ring terminals50-95 mm², power circuit: bars20-20 mm² |
| Mounting support | plate |
| Type of operating handle | external frontal, external right side |
| Environment | |
| Depth | 136.5 mm |
| Width | 190 mm |
| Fire resistance | 960 °C body conforming to IEC 60695-2-1, 850 °C fuse cover conforming to IEC 60695-2-1 |
| IP degree of protection | IP20 conforming to IEC 60529 (with terminal cover) |
| Ambient air temperature for storage | -40-80 °C |
| Net weight | 1.8 kg |
| Standards | IEC 60947-3 |
| Ambient air temperature for operation | -20-70 °C |
| Height | 162 mm |
| Product certifications | CE |
Only registered users can write reviews
Related products
Auxiliary contacts, TeSys GS, 1 NO, early break, front mounting, for GS2 with front/side handle
GS1AM110
Auxiliary contacts, TeSys GS, 1 NO, early break, front mounting, for GS2 with front/side handle
$51.81 inc GST
$20.56 inc GST
Auxiliary contacts, TeSys GS, 1NC+1NO, instantaneous, left side mounting, for GS1 and GS2 with front/right handle
GS1AN11
Auxiliary contacts, TeSys GS, 1NC+1NO, instantaneous, left side mounting, for GS1 and GS2 with front/right handle
$123.86 inc GST
$49.16 inc GST
Auxiliary contacts, TeSys GS, 2NC+2NO, instantaneous, left side mounting, for GS1 and GS2 with front/right handle
GS1AN22
Auxiliary contacts, TeSys GS, 2NC+2NO, instantaneous, left side mounting, for GS1 and GS2 with front/right handle
$237.05 inc GST
$94.09 inc GST

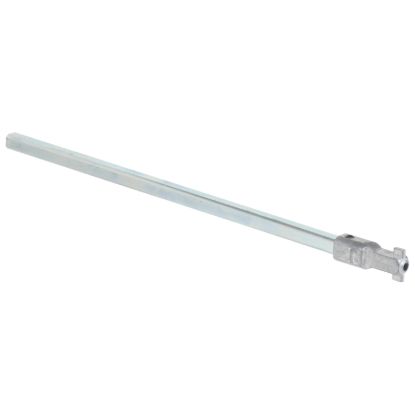

Shaft extension, TeSys GS, cross section 10x10mm, L200mm, for switches 50 to 400A
GS2AE22
Shaft extension, TeSys GS, cross section 10x10mm, L200mm, for switches 50 to 400A
$63.25 inc GST
$25.10 inc GST

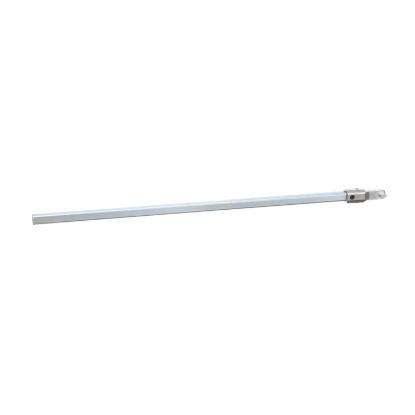

Shaft extension, TeSys GS, cross section 10x10mm, L400mm, for switches 50 to 400A
GS2AE21
Shaft extension, TeSys GS, cross section 10x10mm, L400mm, for switches 50 to 400A
$82.83 inc GST
$32.88 inc GST

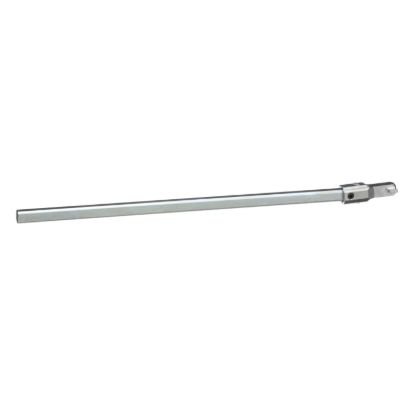

Shaft extension, TeSys GS, L 320mm, cross section 10x10mm, for switches 50 to 400A
GS2AE2
Shaft extension, TeSys GS, L 320mm, cross section 10x10mm, for switches 50 to 400A
$63.25 inc GST
$25.10 inc GST

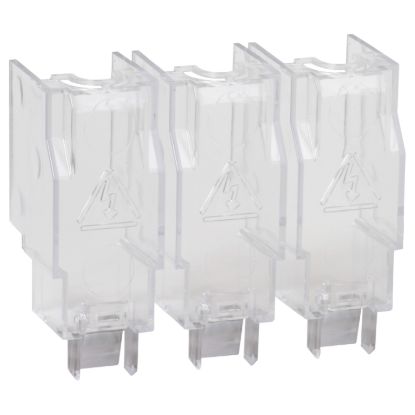

Terminal shrouds, TeSys GS, 3P, for switches 100 to 160A
