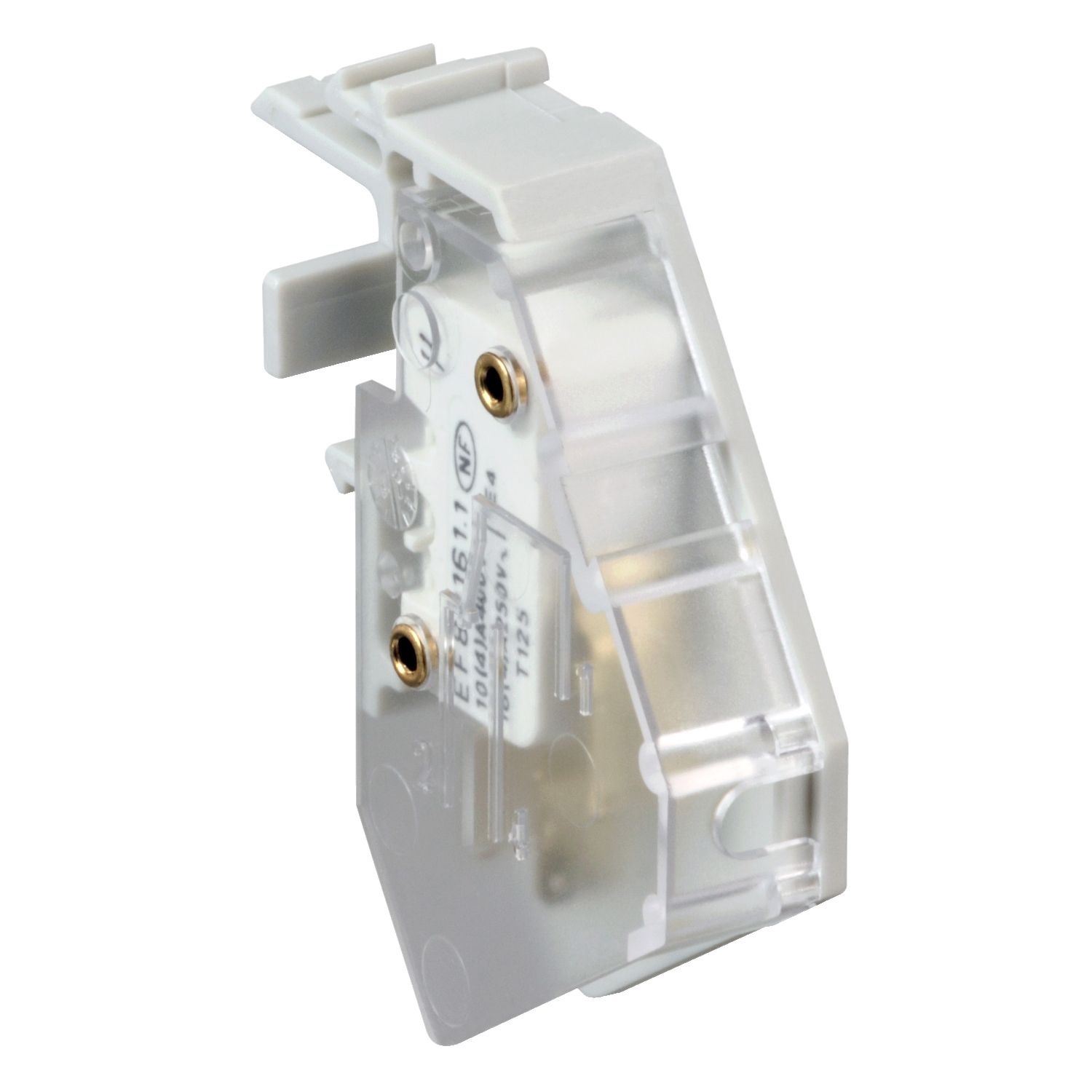

TeSys GS instantaneous auxiliary contact block for 3-pole and 4-pole 50-400A IEC fuse switch-disconnectors GS1FD, GS1GD, GS1JD, GS1KD, GS1KKD, GS1LLD, GS1LD, GS1ND, GS1QQD. It provides 1C/O early break contacts rated up to 12A/24V DC-13 and 4A/230V AC-15, for I/O position signaling. Front mounting and connection by Faston terminals. IEC certified, it conforms to RoHS/REACh regulation.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | GS1AM |
| Contact operation | early-break |
| [Ie] rated operational current | 0.4 A at 220 V DC-13, 0.6 A at 110 V DC-13, 2 A at 48 V DC-13, 12 A at 24 V DC-13, 2 A at 440 V AC-15, 3 A at 400/415 V AC-15, 4 A at 230 V AC-15, 5 A at 127 V AC-15 |
| Contacts type and composition | 1 C/O |
| Contact application | O and I position signalling |
| Product or component type | auxiliary contact |
| Range compatibility | TeSys TeSys GS GS1Q fuse-switch disconnector, TeSys TeSys GS GS1 N fuse-switch disconnector, TeSys TeSys GS GS1 L fuse-switch disconnector, TeSys TeSys GS GS1 K fuse-switch disconnector, TeSys TeSys GS GS1 J fuse-switch disconnector, TeSys TeSys GS GS1G fuse-switch disconnector, TeSys TeSys GS GS1 F fuse-switch disconnector |
| [Ith] conventional free air thermal current | 16 A (at 40 °C) |
| Range of product | TeSys |
| Complementary | |
| [In] rated current | 400 A, 315 A, 250 A, 200 A, 160 A, 125 A, 100 A, 63 A, 50 A |
| Compatibility code | auxiliary early break and signalling contact |
| Mechanical durability | 1 Mcycles |
| Fuse type | BS, DIN, NFC |
| Electrical durability | 30000 cycles AC-15 |
| Mounting location | front face |
| Net weight | 0.023 kg |
| Type of operating handle | direct right side |
