Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| IP degree of protection | IP67 |
| Structure type | according to EN 50325, according to CAN, layer 7, according to ISO 11898 |
| Transmission rate | 500 kbit/s |

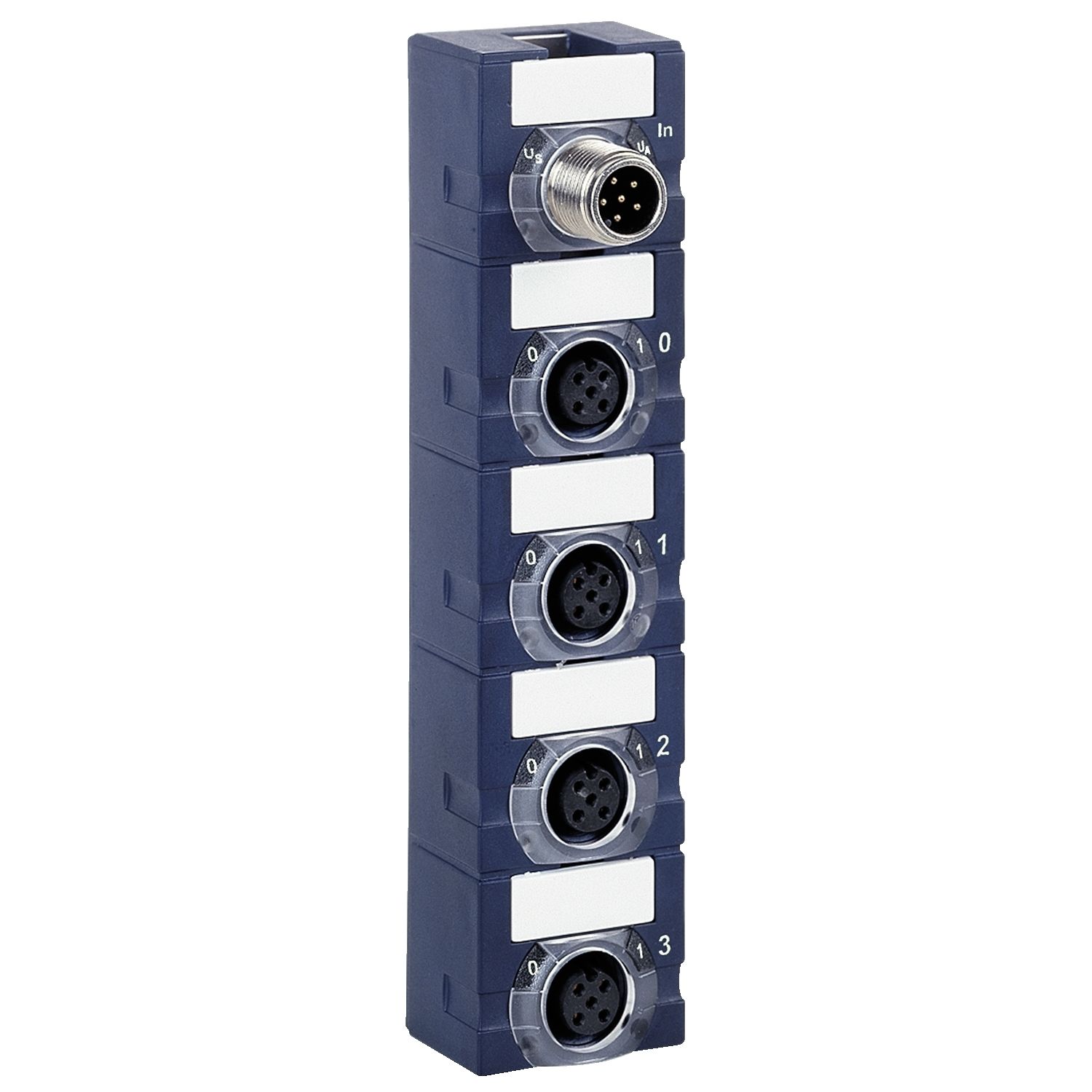

| Product or component type | bus module interface |
| Bus type | DeviceNet |
| Range of product | Advantys FTM |
| Complementary | |
| Net weight | 0.42 kg |
| Transmission support medium | 4 twisted shielded wires |
| Binary rate | 125 kbit/s, 500 kbit/s, 250 kbit/s |
| Operating position | any position |
| Number of addresses | 1-63 |
| Fixing mode | by 2 screws |
| Method of access | master/slave |
| [Ue] rated operational voltage | 24 V DC |
| Maximum supply current | 9 A |
| Electrical connection | 4 female connectors M12 (I/O splitter boxes), 1 male connector M12 (bus IN), 1 male connector 7/8" (power supply), 1 female connector M12 (bus OUT) |
| Number of splitter box | 1/16/2024 12:00:00 AM |
| Tightening torque | 1.5 N.m for M4 screw(s) |
| Internal current consumption | 70 mA |
| Surge withstand | 500 kV power supply conforming to IEC 61000-4-5, -500 kV power supply conforming to IEC 61000-4-5, 500 kV ground/PE conforming to IEC 61000-4-5, -500 kV ground/PE conforming to IEC 61000-4-5, 1000 kV signal conforming to IEC 61000-4-5, -1000 kV signal conforming to IEC 61000-4-5 |
| Environment | |
| Operating altitude | 0...2000 m |
| Resistance to fast transients | 2 kV (signal) conforming to IEC 61000-4-4, -2 kV (signal) conforming to IEC 61000-4-4, 2 kV (power supply) conforming to IEC 61000-4-4, -2 kV (power supply) conforming to IEC 61000-4-4 |
| Resistance to magnetic fields | 30 A/m 50 Hz conforming to IEC 61000-4-8 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 68-2-27, EA tests |
| Resistance to electrostatic discharge | 8 kV in air conforming to IEC 61000-4-2, -8 kV in air conforming to IEC 61000-4-2, 4 kV in contact conforming to IEC 61000-4-2, -4 kV in contact conforming to IEC 61000-4-2 |
| Resistance to radiated fields | 10 V/m conforming to IEC 61000-4-3 |
| Ambient air temperature for storage | -25-70 °C |
| Ambient air temperature for operation | 0-55 °C |
| Resistance to conducted disturbances | 10 V conforming to IEC 61000-4-6 |
| Vibration resistance | 15 gn conforming to IEC 68-2-6 |
| Product certifications | cULus |
