Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input/output number | 16 |
| Product compatibility | with 2-wire/3-wire sensors |
| Discrete output number | 0-16 |

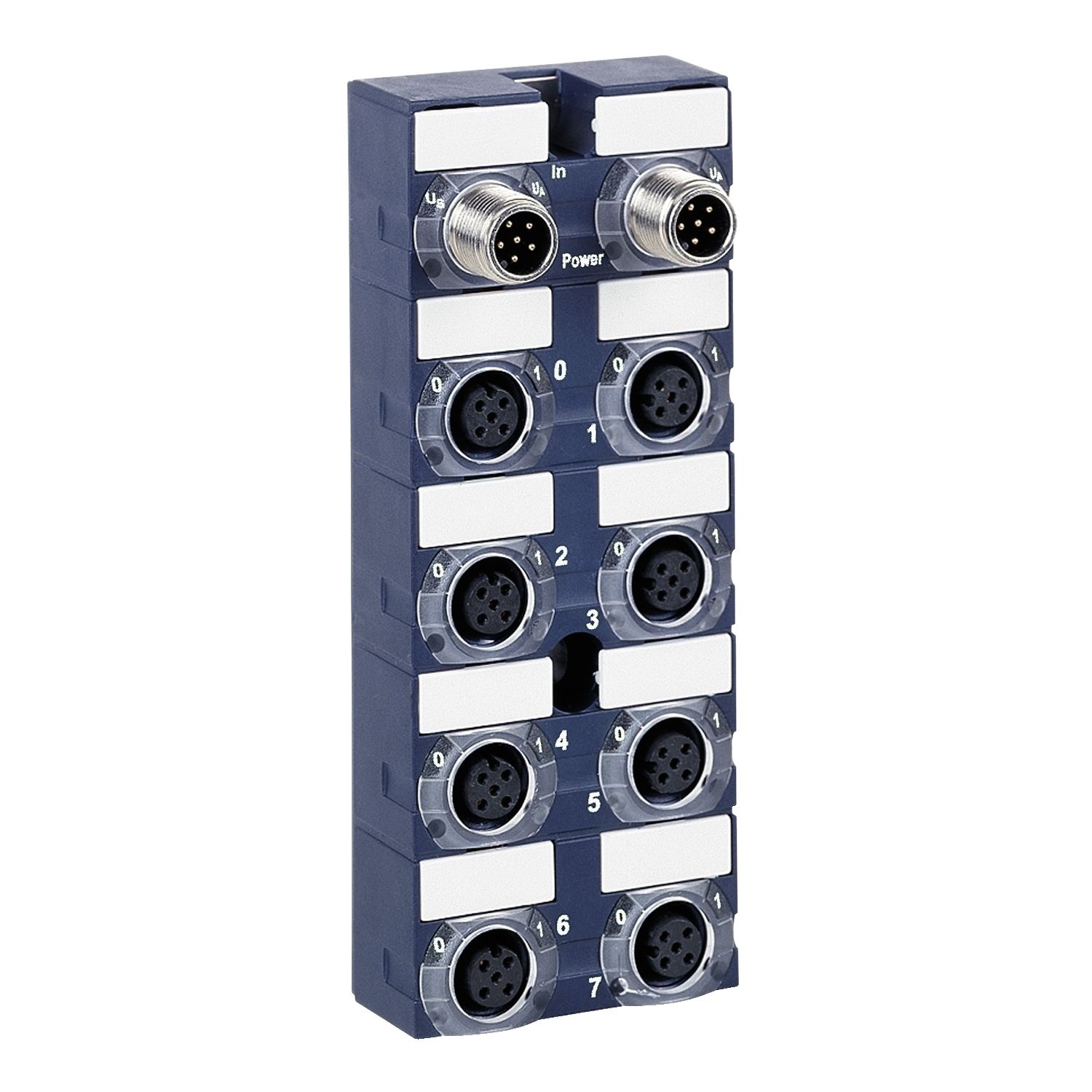

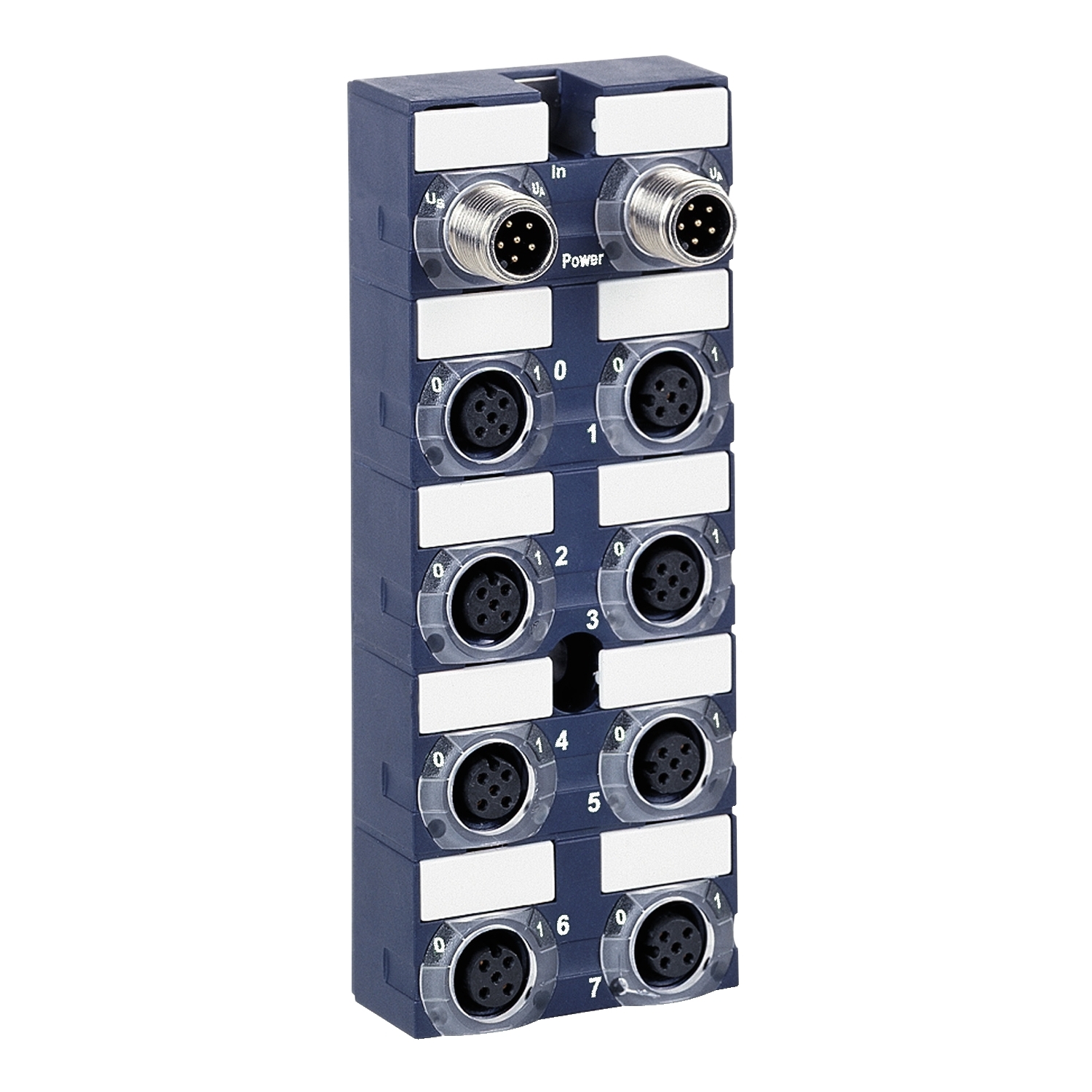

| Product or component type | IP67 modular I/O splitter box |
| Electrical connection | 8 female connectors M12 (sensor or actuator), 1 male connector M12 (bus module or previous module), 1 male connector M12 (auxiliary actuator power supply) |
| Range of product | Advantys FTM |
| Discrete input number | 0-16 |
| Splitter box type | compact |
| Complementary | |
| Switching frequency | <= 50 Hz resistive load, <= 5 Hz inductive load |
| Reverse polarity protection | internal |
| Net weight | 0.22 kg |
| Maximum auxiliary supply current | 4 A |
| Discrete output current | 500 mA |
| Control threshold undervoltage | 0-18 V |
| Discrete input current | 200 mA |
| Maximum tungsten load | 10 W |
| Operating position | any position |
| Discrete output voltage type | DC |
| Discrete input voltage type | DC |
| Fixing mode | by 2 screws |
| [Ue] rated operational voltage | 24 V DC |
| Input filtering | 1 ms |
| Maximum supply current | 4 A |
| Status LED | 1 LED ssr pwr sply dgtc + com status, 1 LED auxiliary supply power on, 1 LED actuator power supply diagnostics, 1 LED per channel (yellow) channel status |
| Discrete input voltage | 24 V |
| Tightening torque | 1.5 N.m for M4 screw(s) |
| Discrete input logic | positive |
| Response time on output | 0...0.5 ms |
| Internal current consumption | 50 mA |
| Output connection cable size | 0.75 mm², cable length <10 m, 0.34 mm², cable length <5 m |
| Surge withstand | 0.5 kV power supply conforming to IEC 61000-4-5, 0.5 kV ground/PE conforming to IEC 61000-4-5, 1 kV signal conforming to IEC 61000-4-5, -1 kV signal conforming to IEC 61000-4-5 |
| Discrete output type | transistor |
| Discrete output voltage | 24 V |
| Sensor power supply | 18-30 V |
| Environment | |
| Operating altitude | 0...2000 m |
| Resistance to fast transients | 2 kV (signal) conforming to IEC 61000-4-4, -2 kV (signal) conforming to IEC 61000-4-4, 2 kV (power supply) conforming to IEC 61000-4-4, -2 kV (power supply) conforming to IEC 61000-4-4 |
| IP degree of protection | IP67 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 68-2-27, EA tests |
| Resistance to electrostatic discharge | 8 kV in air conforming to IEC 61000-4-2, -8 kV in air conforming to IEC 61000-4-2, 4 kV in contact conforming to IEC 61000-4-2, -4 kV in contact conforming to IEC 61000-4-2 |
| Standards | IEC 1131-2 Type 2 |
| Resistance to radiated fields | 10 V/m conforming to IEC 61000-4-3 |
| Ambient air temperature for storage | -25-70 °C |
| Ambient air temperature for operation | 0-55 °C |
| Resistance to conducted disturbances | 10 V conforming to IEC 61000-4-6 |
| Vibration resistance | 15 gn conforming to IEC 68-2-6 |
| Product certifications | cULus |
