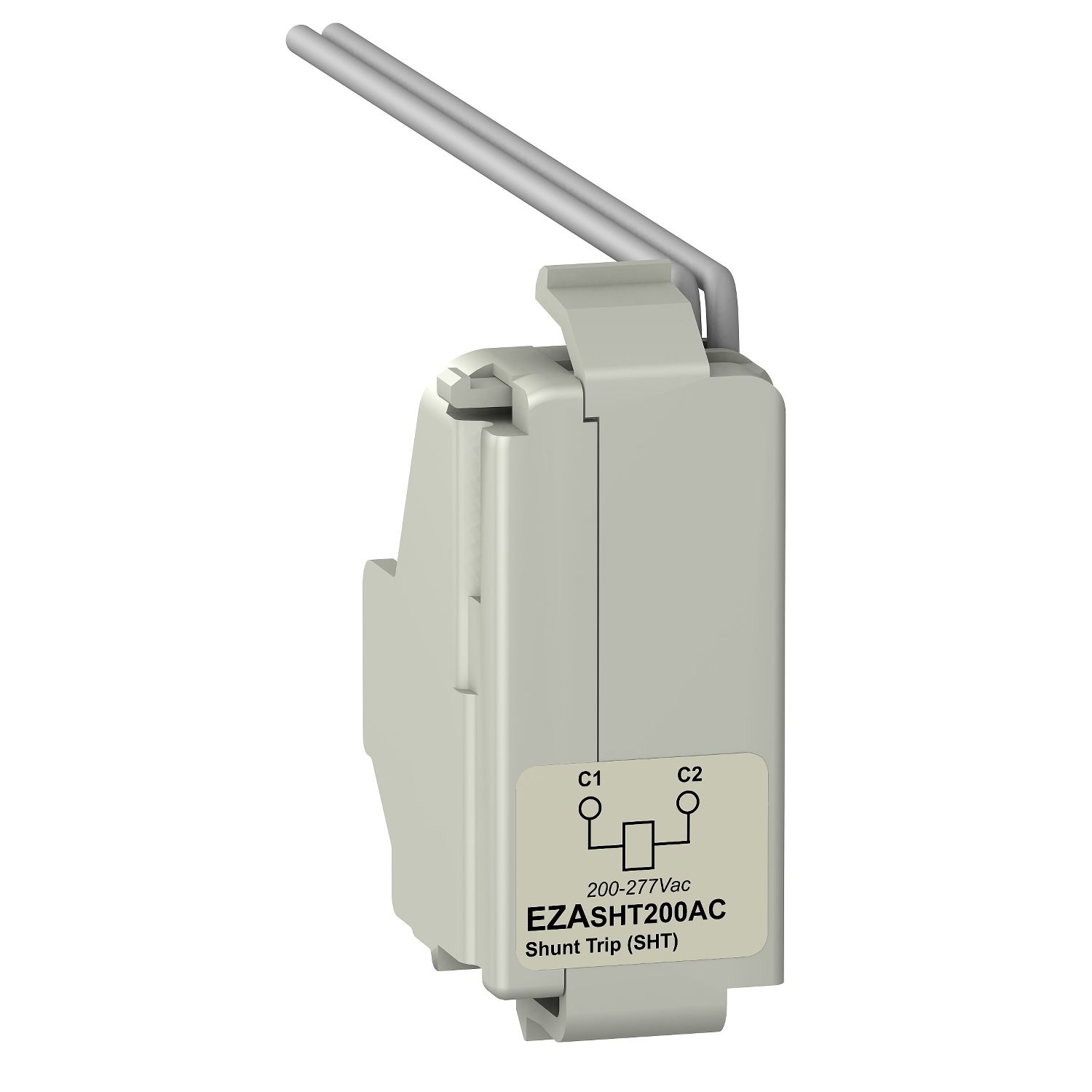

shunt trip, EasyPact CVS100BS, 200VAC to 277VAC

Outstanding durability with the features you need

Easy to order and stock

High quality: using advanced manufacturing methods and premium materials

Modular design helps to increase the shop floor efficiency, enables faster delivery of switch boards

Answers to the most stringent application with most reliable distribution systems ensuring continuity of service

Meet your needs with flexibility to achieve system efficiency during the design phase

ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters

Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection

Multiple international standards certificated

Green Premium with recognized environmental claims

Manufacturer: Schneider Electric

SKU: EZASHT200AC

GTIN: 3303430301646

Catalog

Instruction sheet

Full Description

This is a SHT shunt trip release for EasyPact EZC 100 devices. Its rated voltage is from 200VAC 50/60Hz to 277VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. EasyPact EZC device can be equipped with 1 SHT auxiliary (for 2 poles) or 2 SHT auxiliaries (for 3 and 4 poles).

Old price: $1,009.80 inc GST

Price: $675.68 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Device short name	SHT
Device application	control
Voltage release type	shunt trip release
Range	EasyPact
Product or component type	voltage release
Range compatibility	EasyPact EasyPact EZC
Range of product	EZC100
[Uc] control circuit voltage	200...277 V AC 50/60 Hz
Complementary
Threshold tripping voltage	0.7 Un tripping
Compatibility code	SHT
Response time	50 ms
Auxiliary connection terminal	lead wire
