Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

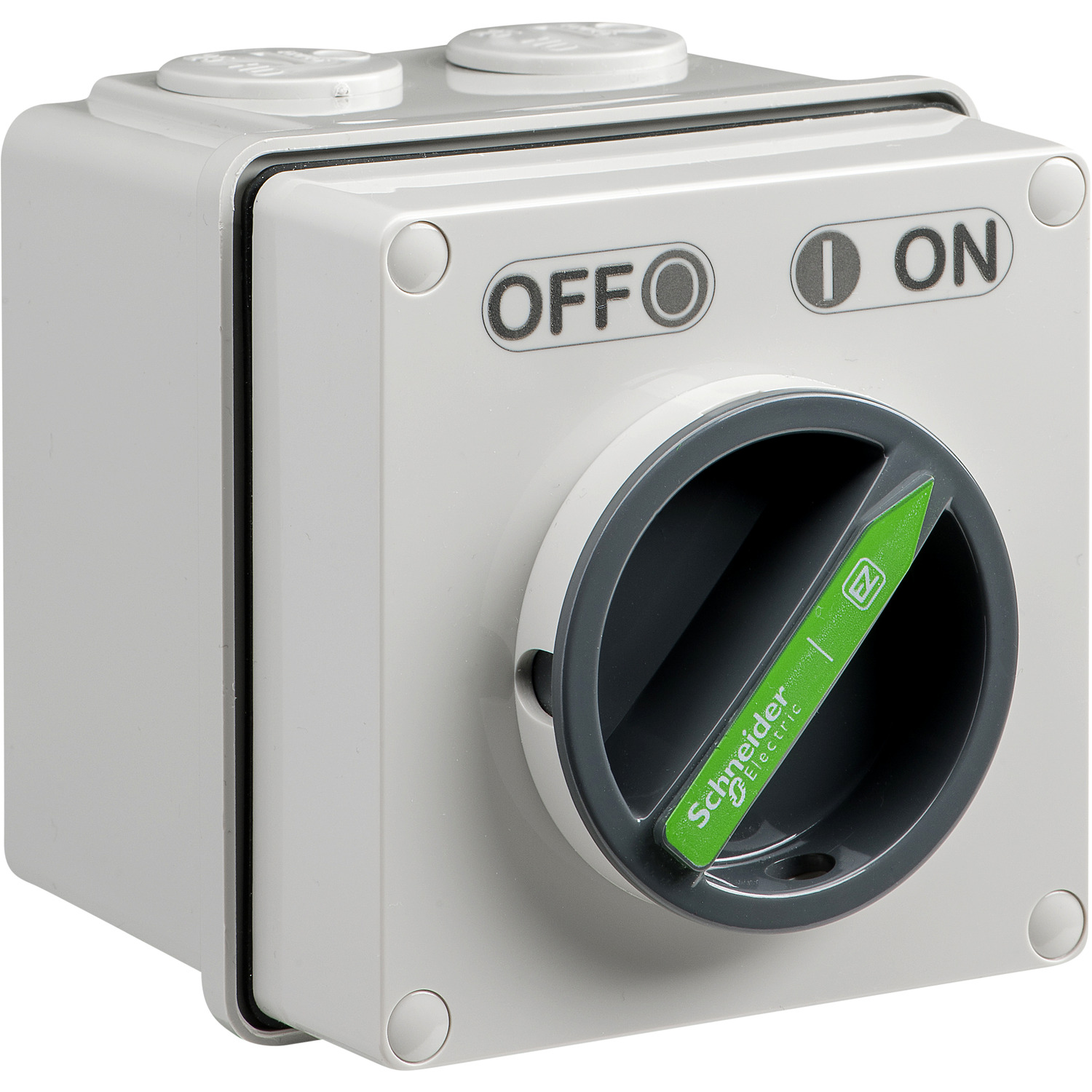

| Device short name | EY56SW120 |
| Poles description | 1P |
| Control type | rotary knob |
| Product name | Easy56 |
| Product or component type | switch |
| Rotary handle padlocking | 2 padlocks 8-8 mm |
| Complementary | |
| [Icw] rated short-time withstand current | 1.5 kA at 250 V duration: 1 s |
| Breaking capacity | 0.2 kA at 250 V (AC-23A), 0.2 kA at 250 V (AC-21A) |
| Depth | 101 mm |
| Market segment | utility, industry, small commercial |
| Width | 101 mm |
| Colour | rotary handle: dark grey, body: grey (RAL 7035) |
| [Ie] rated operational current | 20 A (AC-23A) at 250 V AC, 20 A (AC-21A) at 250 V AC |
| Suitability for isolation | yes |
| [Icm] rated short-circuit making capacity | 1 kA at 250 V AC-23A, 1 kA at 250 V AC-21A |
| [Uimp] rated impulse withstand voltage | 2.5 kV conforming to AS/NZS 3133, 2.5 kV conforming to IEC 60947-3 |
| Making capacity | 200 A at 250 V AC-23A, 200 A at 250 V AC-21A |
| Net weight | 0.471 kg |
| Connections - terminals | screw terminals cable(s) 1-16 mm² rigid or stranded |
| [Ithe] conventional enclosed thermal current | 20 A |
| Height | 101 mm |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Targeted country | Australia, New Zealand |
| Environment | |
| IP degree of protection | IP66 conforming to AS 60529 |
| Standards | AS/NZS 3133 |
| Ambient air temperature for operation | -25-75 °C |
