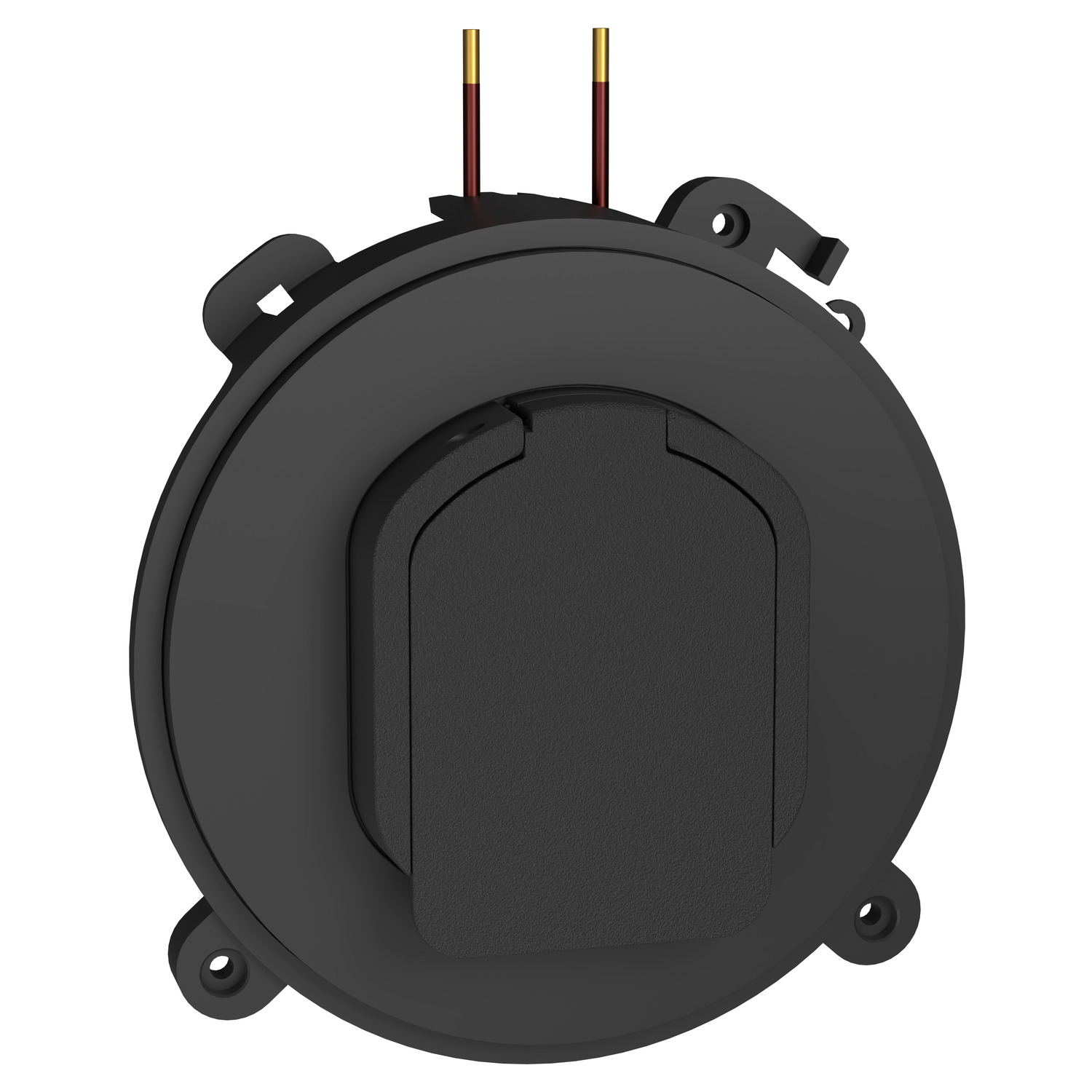

Socket Outlet, EVlink Pro AC, 1-phase T2 with shutters

EVlink Pro AC accessory

Certified and aesthetic – Compliant with strict safety certification

Peace of mind - Worldwide customer care center

Manufacturer: Schneider Electric

SKU: EVP1SSS41

GTIN: 3606482213296

PDF

Image of product

Promotional video

Instruction sheet

Catalog

Brochure

Full Description

This EVlink Pro AC spare part is a T2 socket-outlet with shutter (T2S). It is used in single-phase. It is made of plastic. The IP degree of protection is IP55. The IK degree of protection is IK10. The operating temperature is between -30°C to 50°C. The storage temperature is between -40°C to 80°C. The dimensions are (W) 195mm x (H)235.5mm x (D) 110mm. The Us supply voltage is between 220VAC and 240VAC with a maximum supply current of 32A.

Availability: Out of stock

$456.06 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	socket-outlet
Poles description	1P + N
Socket-outlet type	T2 with shutter
Range	EVlink
Maximum supply current	32 A
Range compatibility	EVlink EVlink Pro AC EVB3 charging station, EVlink EVlink Pro AC Metal
[Us] rated supply voltage	220...240 V AC
Complementary
Material	plastic
Width	194.92 mm
Depth	110 mm
Height	234.45 mm
Environment
IK degree of protection	IK10 conforming to IEC 62262
Ambient air temperature for operation	-30-50 °C
IP degree of protection	IP55 conforming to IEC 60529
Ambient air temperature for storage	-40-80 °C
