Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

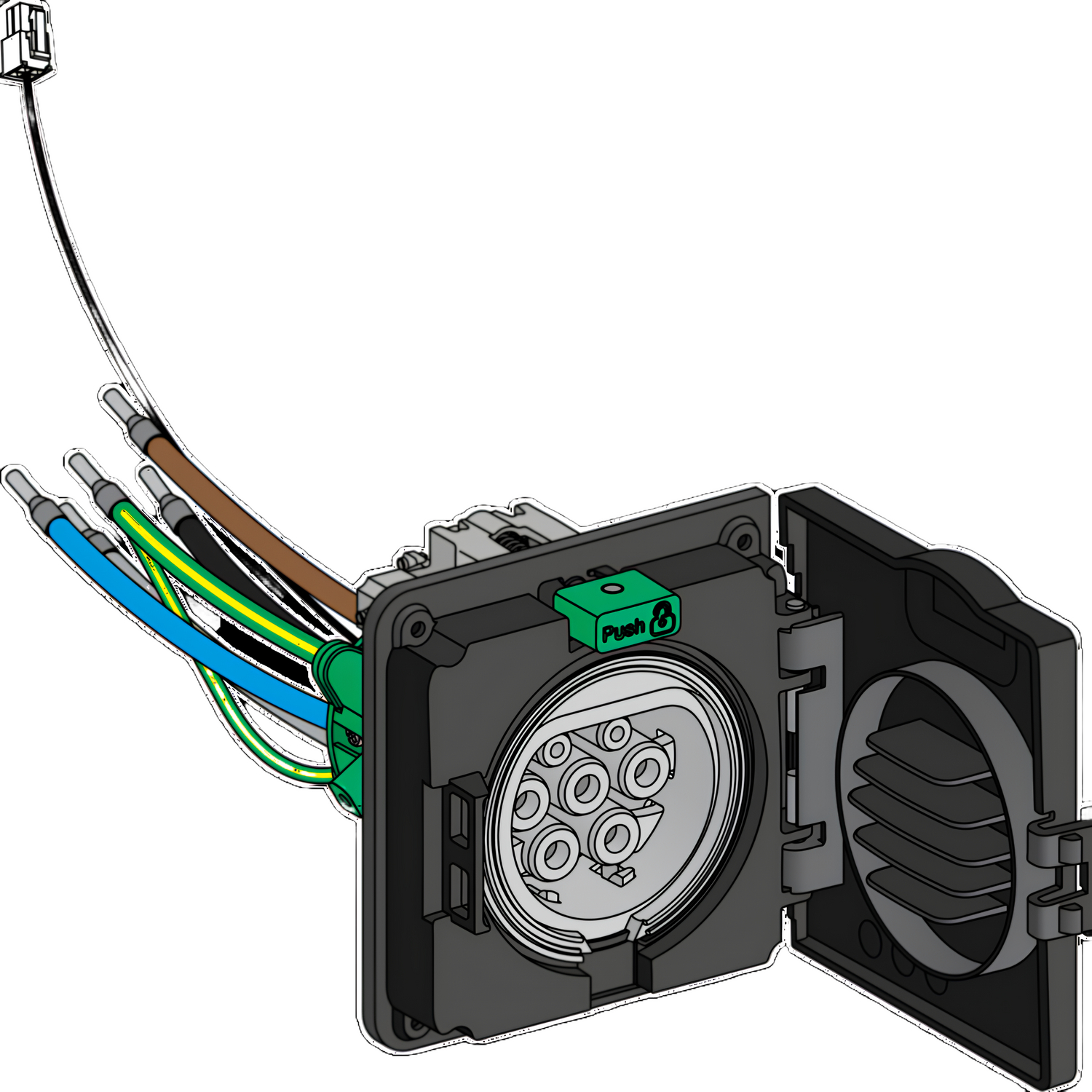

| Poles description | 3P + N |
| Maximum supply current | 32 A |
| Nominal output power | 22 W 32 A |
| Range | EVlink |
| Socket-outlet type | T2 with shutter |
| Product or component type | socket-outlet |
| Earthing system | compatible TN, compatible IT with additional isolation transformer on the power supply, compatible TT |
| Range compatibility | EVlink EVlink Wallbox EVH2 charging station |
| [Us] rated supply voltage | 380...415 V AC 50/60 Hz |
| Complementary | |
| Depth | 90 mm |
| Width | 110 mm |
| Material | plastic |
| Height | 110 mm |
| Product certifications | CE |
| Environment | |
| Ambient air temperature for storage | -40-80 °C |
| Relative humidity | 5-95 % |
| IP degree of protection | IP54 conforming to IEC 60529 |
| Ambient air temperature for operation | -30-50 °C |
| IK degree of protection | IK10 conforming to IEC 62262 |
