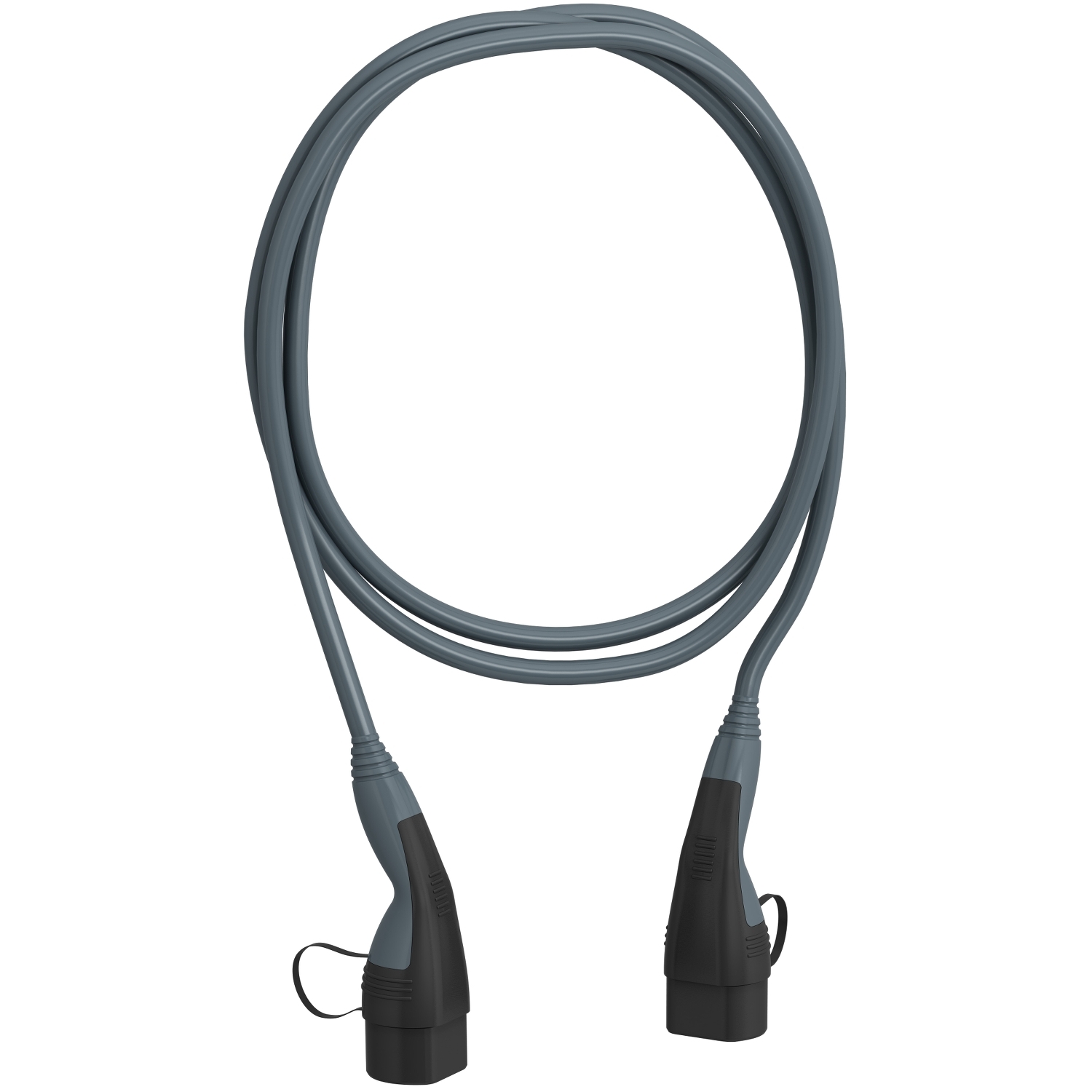

This EVlink cabling accessory is a single-phase charging cable allowing to connect to an electric vehicle. It can provide a In rated current of 32A on a Us rated supply voltage of 220VAC up to 240VAC. The frequency is 50Hz to 60Hz. The cable length is 10m. At charging station end, as well as at vehicle end, the cable has T2 connector with silver plated contacts limiting overheating. The IP degree of protection is IP44. The IK degree of protection is IK10. The operating temperature is between -30°C to 50°C. The storage temperature is between -40°C to 80°C.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Poles description | 1P + N |
| [In] rated current | 32 A |
| Range | EVlink |
| Network number of phases | single phase |
| Product or component type | charging cable |
| Socket number | 2 |
| Accessory / separate part category | cabling accessory |
| [Us] rated supply voltage | 220...240 V AC 50/60 Hz |
| Complementary | |
| Colour | grey |
| Socket-outlet type | T2 / silver plated contacts charging station end |
| Net weight | 4.5 kg |
| Length | 10 m |
| Connector type | T2 charging station end silver plated contacts, T2 vehicle end silver plated contacts, T2 T2 |
| Range compatibility | EVlink EVlink Pro AC Metal EVB3 charging station, EVlink EVlink Pro AC EVB3 charging station, EVlink EVlink Wallbox EVH2 charging station, EVlink EVlink Smart Wallbox EVB1 charging station, EVlink EVlink parking EVW2 charging station, EVlink EVlink parking EVF2 charging station, EVlink EVlink parking EVW1 charging station, EVlink EVlink parking EVF1 charging station |
| Standards | IEC 62196-1, IEC 62196-2 |
| Product certifications | CE |
| Environment | |
| Ambient air temperature for storage | -40-80 °C |
| Relative humidity | 5-95 % |
| IP degree of protection | IP44 conforming to IEC 60529 |
| Ambient air temperature for operation | -30-50 °C |
| IK degree of protection | IK10 conforming to IEC 62262 |
