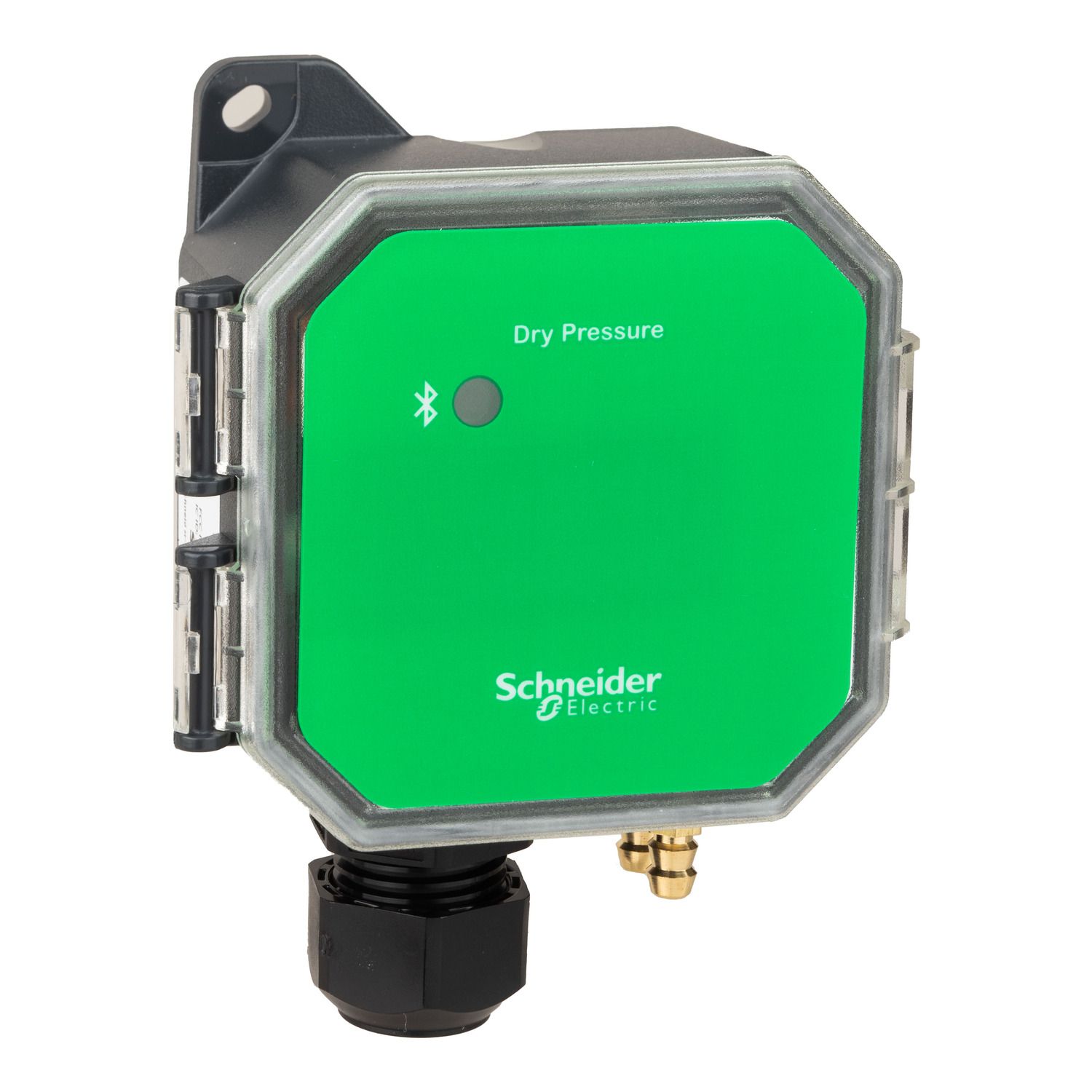

SpaceLogic EP Series pressure sensors can measure either air pressure or velocity with the flip of a switch. This device is intended for panel mounting. It measures pressure from 1 to 10 In WC and velocity from 3000 ft/min to 6000 ft/min. Bluetooth functionality is available for easy commissioning and maintenance. These devices include an IP65/NEMA 4 environmental rating and a 5-year limited warranty.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Probe length | 188 mm |
| IP degree of protection | IP65 |
| Device application | air velocity monitoring, VAV control, fan monitoring, filter monitoring, duct pressure monitoring |
| Depth | 42 mm |
| Fitting type | male |
| Width | 88 mm |
| Probe diameter | 7 mm |
| Local signalling | red/green/blue LED |
| Burst pressure | 5 psid (34.5 kPa) |
| Pressure measurement range | 0...10" W.C. (0...2500 Pa), 0...5" W.C. (0...1000 Pa), 0...2.5" W.C. (0...500 Pa), 0...1" W.C. (0...250 Pa) |
| Wiring technique | 3-wire |
| Net weight | 0.125 kg |
| Controlled fluid | gas, air |
| Location | plant room |
| Product or component type | pressure transmitter sensor |
| Type of measurement | differential pressure |
| Fitting size | 6 mm (0.24") |
| Standards | EN 61326-2-1, EN 61326-1, EN 61000-6-1, EN 61000-6-3 |
| Mounting support | panel |
| Range of product | TAC |
| Calibration certificate | none |
| Pressure measurement drift | less than 0.5 % |
| Ambient air temperature for operation | -20-60 °C |
| Height | 112 mm |
| [Us] rated supply voltage | 24 V AC, 12...30 V DC |
| Product certifications | CE |
| Complementary | |
| Mounting mode | panel |
| Sensor model | EPP302 |
