Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Number of channels | 1 |
| Transmission rate | 12 Mbps |
| Range | PowerLogic |

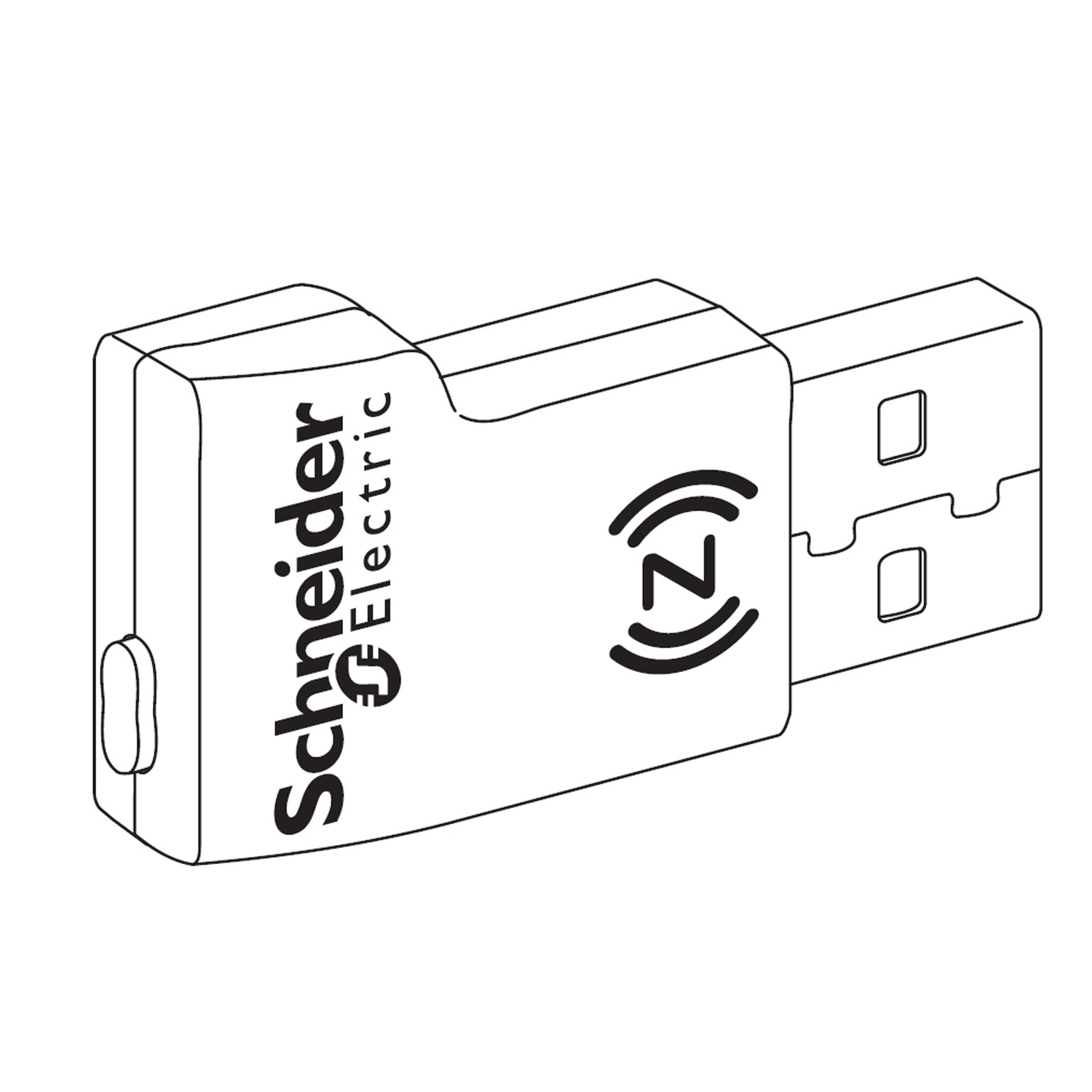

| Product or component type | USB interface |
| Bandwidth | 2405-2480 MHz ETSI conforming to IEEE 802.15.4, 2405-2480 MHz FCC conforming to IEEE 802.15.4 |
| Range of product | PowerLogic |
| Complementary | |
| Depth | 9 mm |
| Compatibility code | USB interface |
| Communication port protocol | USB |
| Current consumption | RX (reception) <= 70 mA for 5 V DC, TX (transmission) <= 100 mA for 5 V DC |
| Height | 19 mm |
| Communication network type | ZigBee |
| [Us] rated supply voltage | 5 V DC |
| Environment | |
| Width | 38 mm |
| Ambient air temperature for storage | -40-85 °C |
| Standards | IEEE 802.15.4 |
| Ambient air temperature for operation | -25-85 °C |
