Earth-leakage add-on protection module VigiPacT, ComPacT NSX 400/630, 440VAC to 550VAC, 30mA to 30A, 3 poles

Manufacturer: Schneider Electric

SKU: LV432466

Download sample

Availability: Out of stock

$0.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Supported cards

Full Description
Reviews

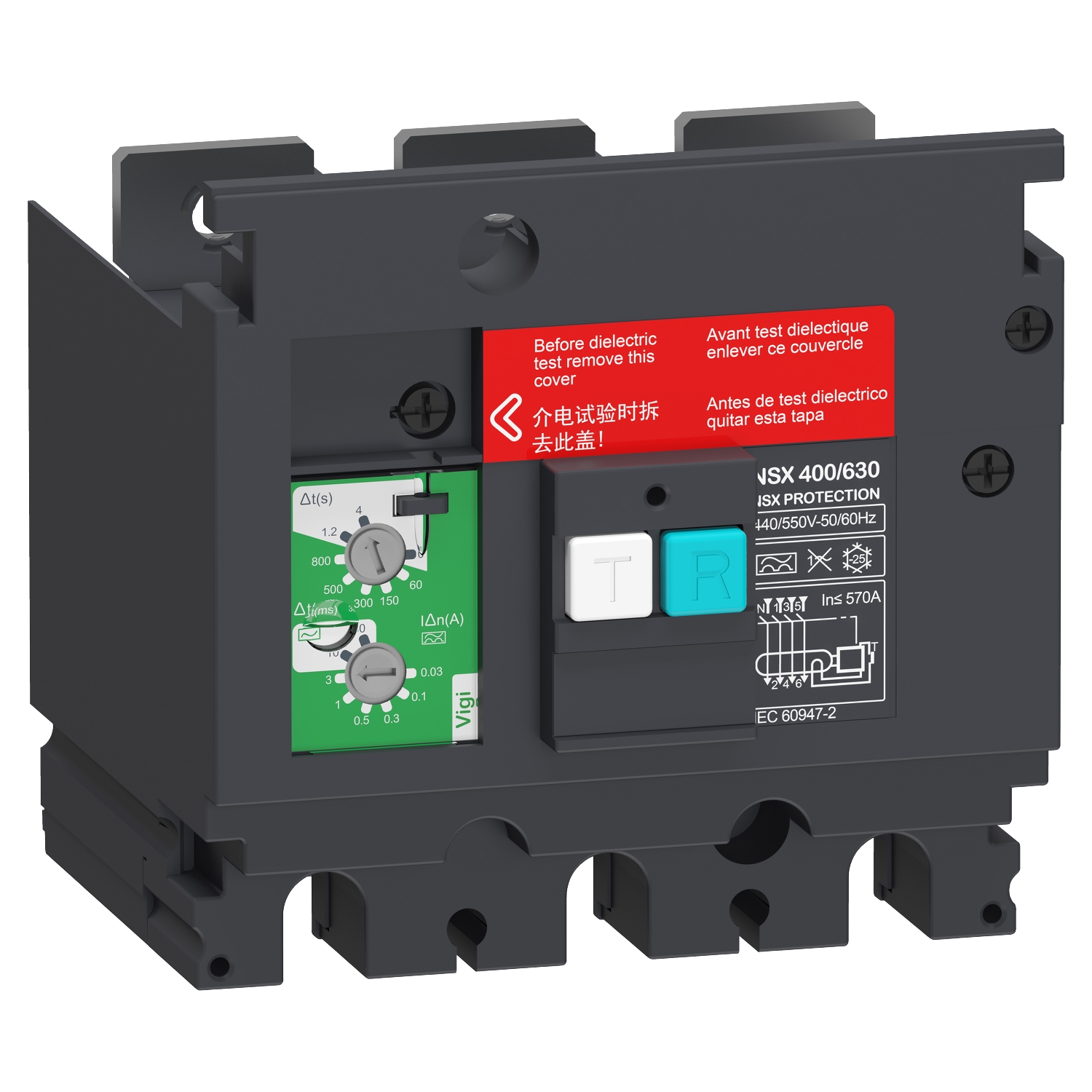

This is a Vigi add-on module for ComPact NSX 400/630 that provides an earth-leakage protection. It is used for 3 poles circuit breakers. The operational rated voltage is between 440 and 550 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.

Only registered users can write reviews

Earth-leakage add-on protection module VigiPacT, ComPacT NSX 400/630, 440VAC to 550VAC, 30mA to 30A, 3 poles

Name: Earth-leakage add-on protection module VigiPacT, ComPacT NSX 400/630, 440VAC to 550VAC, 30mA to 30A, 3 poles
SKU: LV432466
Availability: OutOfStock
