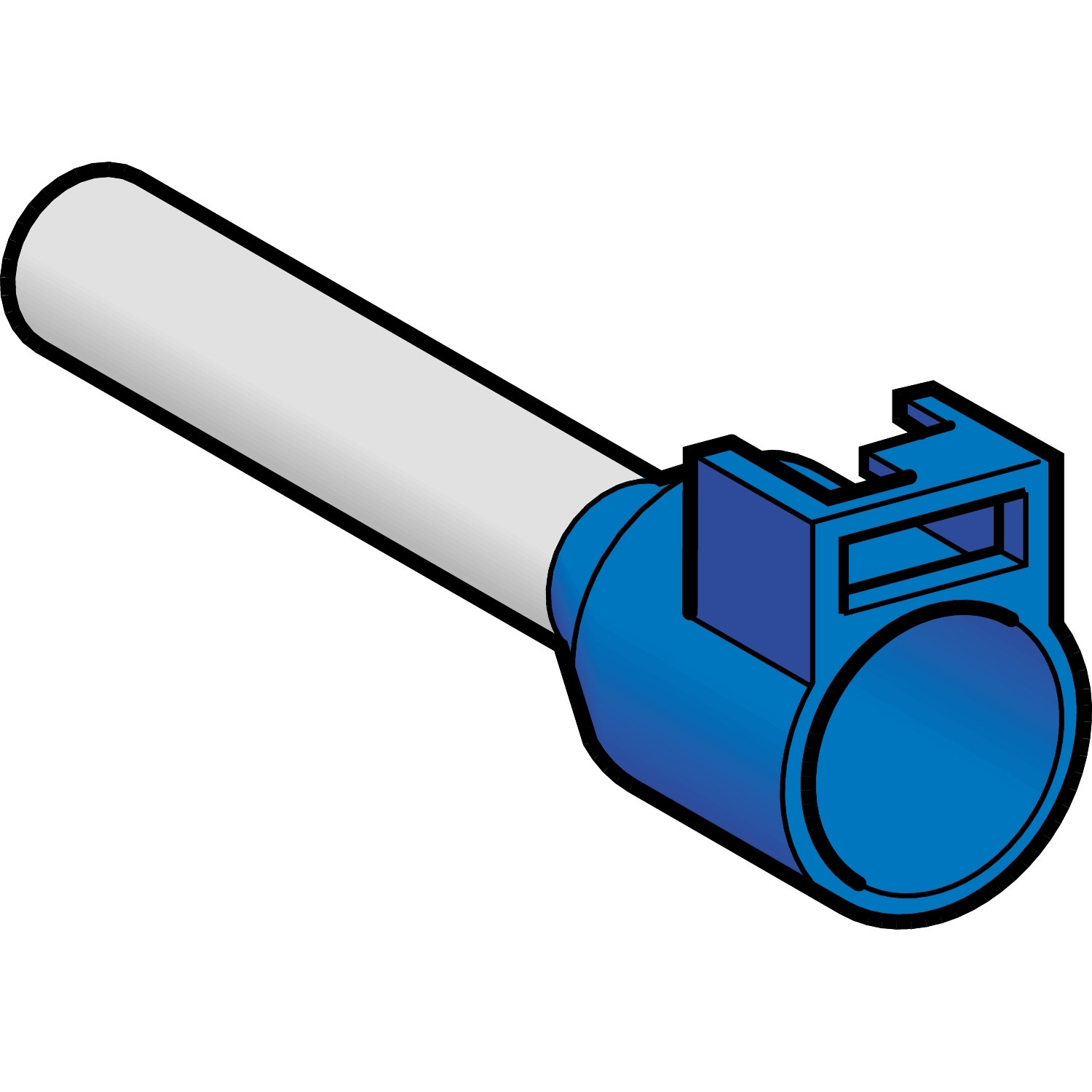

Linergy cable end insulated for clip-in marker tag holder. It is applied to single conductor with 50 mm² cable cross section. It has blue surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 1 set of 20. Ambient air temperature for operation is from -20 to 105 °C. It conforms to DIN 46228-4 standard. It is compliant with Green Premium (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | set of 20 |
| Cable end size | medium |
| Cable cross section | 50-50 mm² |
| Type of packing | bag |
| Product or component type | cable end |
| Standards | DIN 46228-4 |
| Range of product | Linergy |
| Complementary | |
| CAD overall depth | 36 mm |
| CAD overall width | 16 mm |
| Tube diameter | 11 mm |
| Additional information | for additional marker tag holder |
| Tube material | copper conforming to ISO 1337 |
| Bezel material | halogen-free plastic |
| Colour | blue |
| AWG gauge | AWG 1/0 |
| CAD overall height | 18 mm |
| Net weight | 0.06 kg |
| Length | 36 mm |
| Cable end type | single conductor |
| Number of cables | 1 |
| Bezel size | Ø 16 mm |
| Tube length | 20 mm |
| Environment | |
| Ambient air temperature for operation | -20-105 °C |
