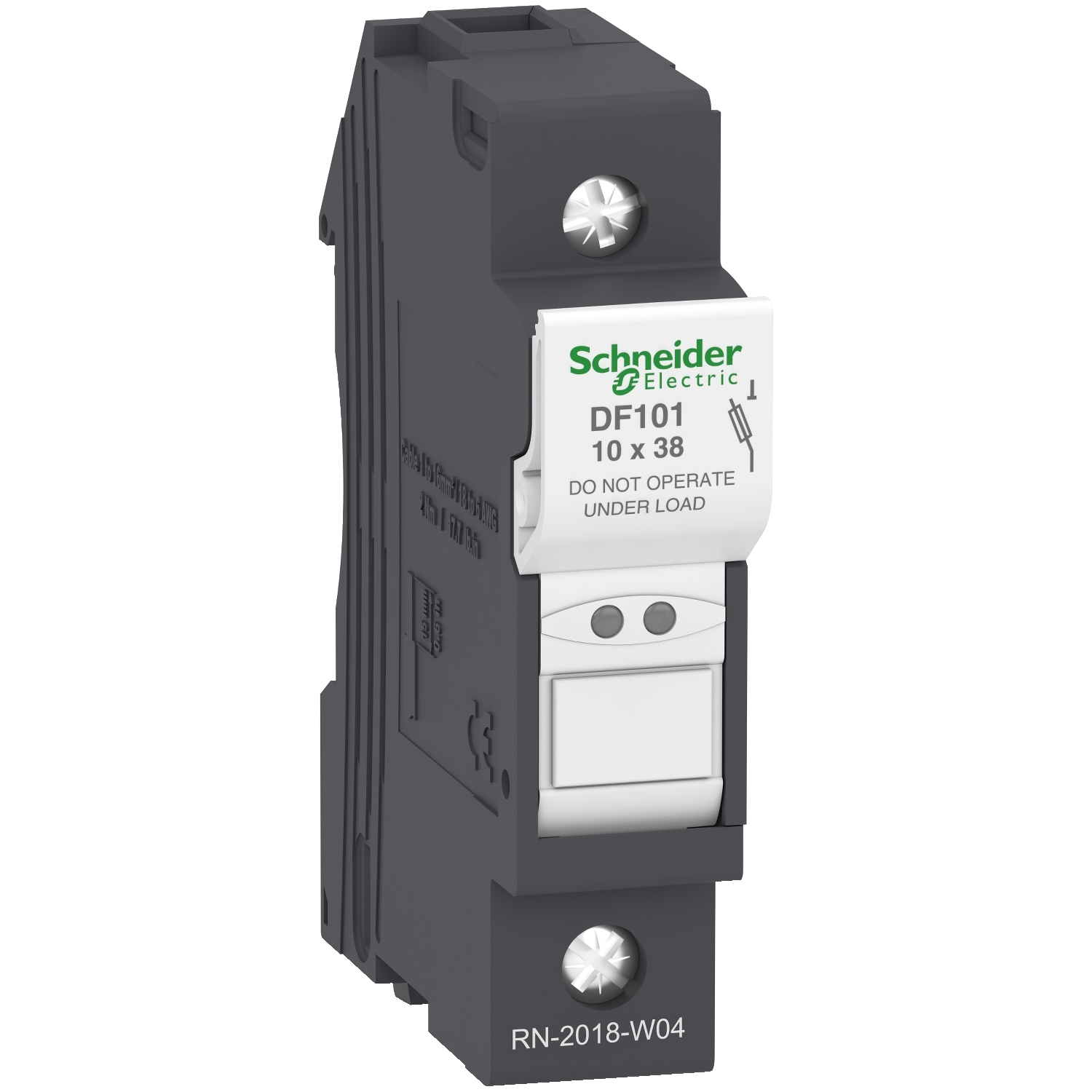

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | DF10 |
| Poles description | 1P |
| Control type | toggle padlockable |
| [Ie] rated operational current | 32 A at 400 V AC |
| Product compatibility | DF2CN fuse cartridge, DF2CA fuse cartridge |
| [Ui] rated insulation voltage | 690 V AC |
| Short-circuit withstand | 120 kA 500 V conforming to IEC 60947-3, 120 kA 400 V conforming to IEC 60947-3 |
| Overvoltage category | III |
| Range | TeSys |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Utilisation category | DC-20B conforming to IEC 60947-3, AC-20B conforming to IEC 60947-3 |
| Power dissipation in W | 3 W maximum power dissipation by fuse |
| Product name | TeSys DF |
| Product or component type | fuse carrier |
| Fuse type | , gG, , aM |
| [Ith] conventional free air thermal current | 32 A 20 °C |
| Range of product | TeSys fuse carriers |
| [Ue] rated operational voltage | 690 V DC, 690 V AC |
| Fuse size | 10 x 38 mm |
| Complementary | |
| Depth | 61 mm |
| Width | 17.5 mm |
| Quantity per set | set of 12 |
| Tightening torque | 2.2 N.m - with screwdriver flat Ø 5.5 mm, 2.2 N.m - with screwdriver PZ2 |
| Mounting position | vertical (tolerance: +/- 23°) |
| Net weight | 0.042 kg |
| Connections - terminals | screw clamp terminals 2 cable(s) 1-6 mm²flexible with or without, screw clamp terminals 1 cable(s) 1-16 mm²flexible with or without, screw clamp terminals 2 cable(s) 1-6 mm²rigid, screw clamp terminals 1 cable(s) 1-16 mm²rigid |
| Product certifications | DNV-GL, EAC, CCC, CSA, UL recognized, IEC |
| Standards | EN 45545-2: R22 HL2, CSA C22.2 No 4248-1, UL 4248-1, EN/IEC 60269-2, EN/IEC 60947-3 |
| Mounting support | 35 mm symmetrical DIN rail |
| Height | 79.5 mm |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Operating altitude | 0...2000 m |
| Compatibility code | DF10 |
| Ambient air temperature for storage | -40-70 °C |
| Pollution degree | 3 |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -40-70 °C with derating above 20°C |
Only registered users can write reviews
Related products

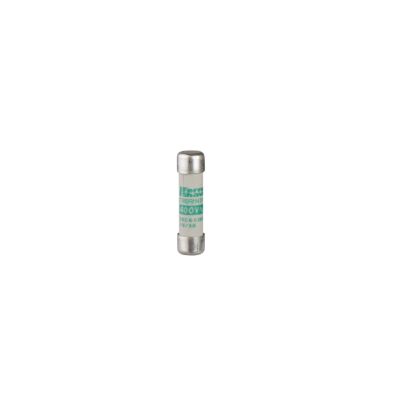

NFC cartridge fuses, TeSys GS, cylindrical 10mm x 38mm, fuse type aM, 500VAC, 16A, without striker, set of 10 parts
