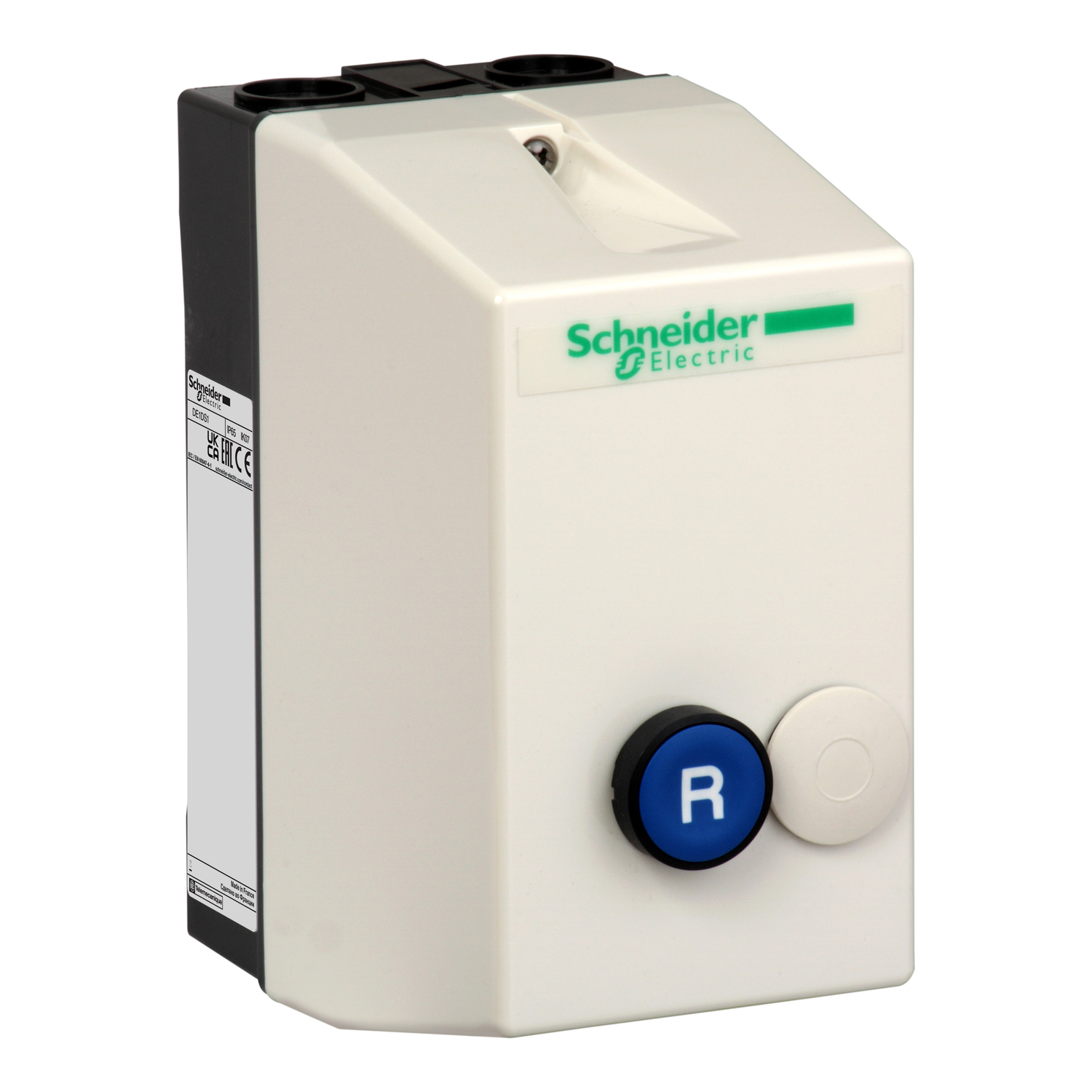

TeSys enclosed starter empty enclosure, for mounting a contactor and thermal overload relay for non-reversing motor applications AC-3 up to 5.5kW@400V. Polycarbonate enclosure providing IP65 / IK07 protection, equipped with a blue pushbutton Reset (R). Optimized for the integration of a contactor LC1D09-D12 and a thermal overload relay LRD02-LRD14 depending on the motor power (devices to be ordered separately). Replacement part for TeSys enclosed starters LE1 D09-D12**A05. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. Environmental compliant (RoHS/REACh). Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | DE1D |
| Product compatibility | LE1D09, LE1D12 |
| Control type | push-button reset blue R |
| Device composition | thermal overload relay ordered separately, contactor ordered separately |
| Range | TeSys |
| Material | polycarbonate |
| Product or component type | enclosure |
| Range of product | TeSys |
| Complementary | |
| Depth | 145 mm |
| Width | 88 mm |
| Compatibility code | DE1D |
| Cable entry number | 2 Pg 16 bottom, 2 Pg 13 bottom, 2 ISO20 bottom, 2 ISO20 top |
| Net weight | 0.3 kg |
| Height | 166 mm |
| Environment | |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Environmental characteristic | standard environment |
| Ambient air temperature for operation | -5-40 °C |
| IK degree of protection | IK07 conforming to IEC 60529 |
| Product certifications | UKCA |
