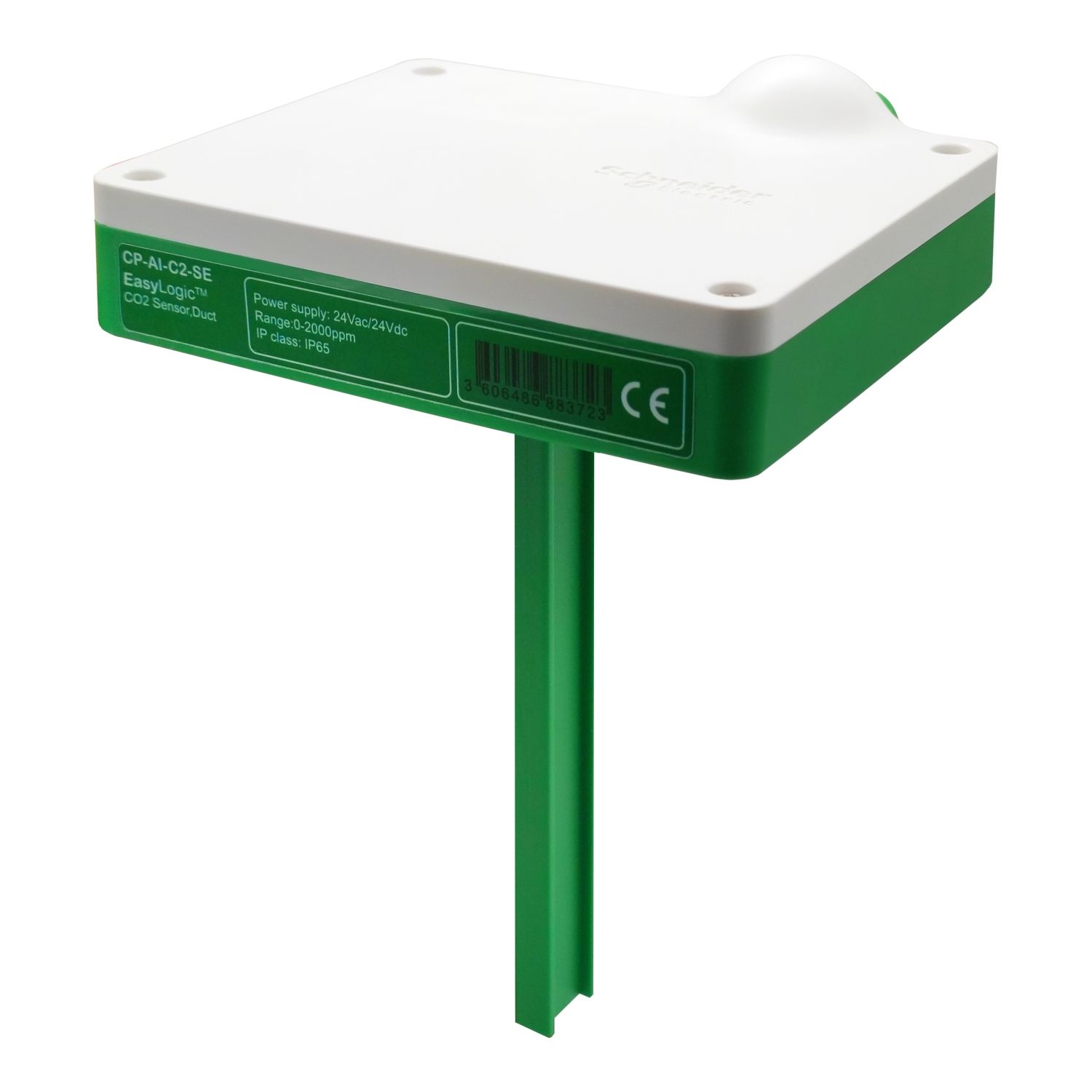

EasyLogic, CP, CO2 Sensor, Duct

Manufacturer: Schneider Electric

SKU: CP-AI-C2-SE

GTIN: 3606486883723

PDF

Instruction sheet

Declaration of conformity

Full Description

EasyLogic CP Series, air quality duct CO2 sensor It has an output of 4 to 20 mA or 0 to 10 V DC outputs. It is intended to be duct mounted to measure CO2 levels It is CE, RoHs and REACH certified

Availability: Out of stock

Old price: $709.06 inc GST

Price: $937.73 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Mounting support	duct
Targeted region	Asia Pacific.
Type of measurement	CO2
Product or component type	CO2 sensor
Width	90 mm
Depth	110 mm
Ambient air temperature for operation	-10-50 °C
Range of product	EasyLogic
Colour	white/green
Net weight	160 g
[Us] rated supply voltage	24 V AC, 24 V DC
Height	171 mm
Standards	EN 61326-1
Device presentation	complete device
Ambient air temperature for storage	-20-70 °C
Environment
Temperature setting range	-20-70 °C
Type of measurement	carbon dioxide (CO2)
Humidity setting range	0-95 %
Measurement accuracy	+/- 3 %
Contractual warranty
Warranty	18
