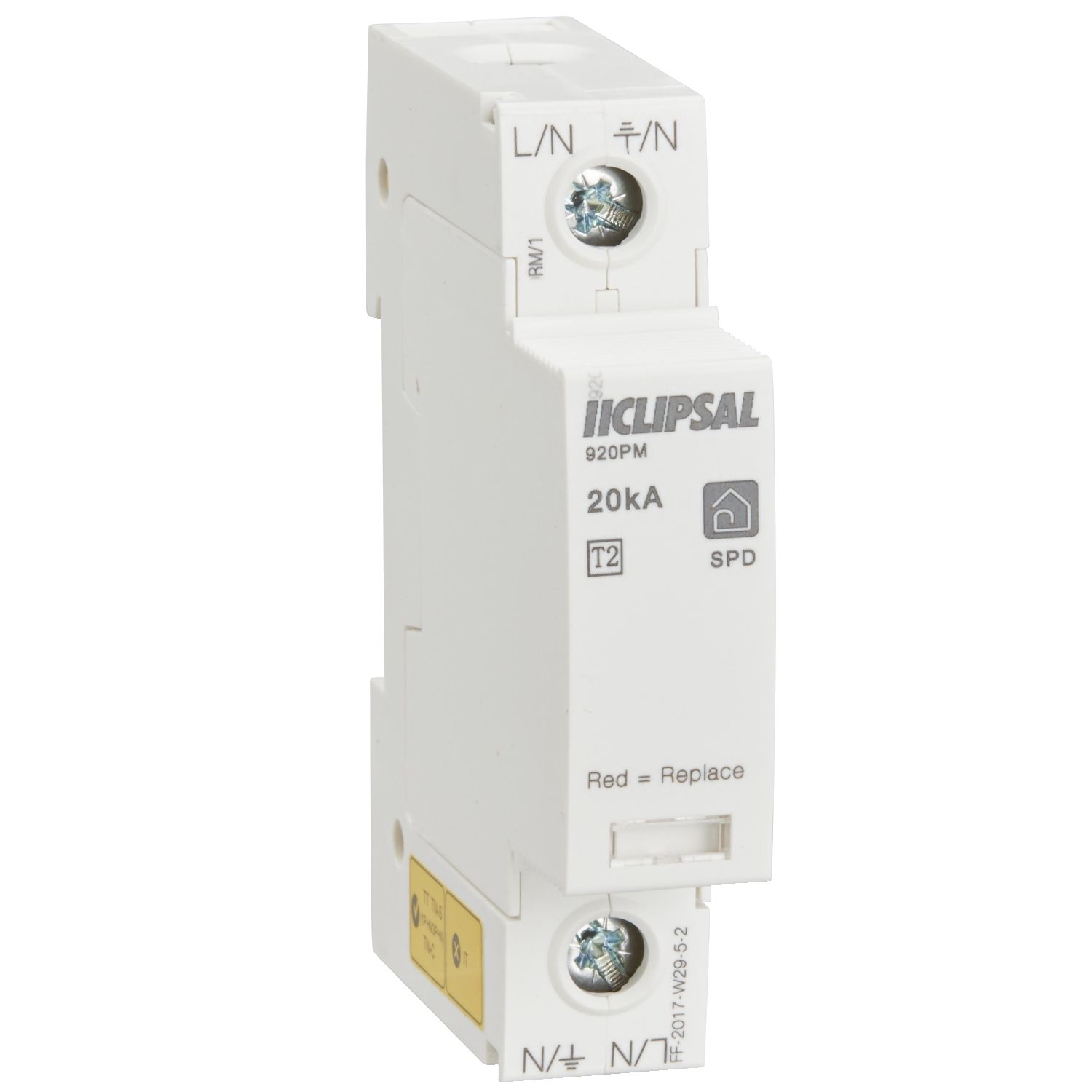

This Resi MAX product is a modular and reliable Surge arrester. it is a 1P, rated current is 20kA, and operating voltage is 240VAC. The operating temperature is -25°C to +60°C. The storage temperature is . The degree of protection is IP20 and IP40 in an enclosure. It is 35mm DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 85mm x (D) 64mm. This Surge arrester is used for control. This product is compliant with IEC 61643-11.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Poles description | 1P |
| Surge arrester type | electrical distribution network |
| Range | Resi MAX |
| Product or component type | surge arrester |
| Earthing system | TN-S, TN-C, TT |
| Remote signalling | without |
| Complementary | |
| Depth | 64 mm |
| Width | 18 mm |
| [Ue] rated operational voltage | 240 V +/- 10 % AC 50/60 Hz |
| Maximum [Up] voltage protection level | <1.2 kV |
| Local signalling | white/red flag |
| Mounting mode | clip-on |
| Disconnector device type | fusible disconnect gG 125 A |
| Maximum residual current | 0.6 mA |
| Connections - terminals | tunnel type terminal4-16 mm² flexible with ferrule, tunnel type terminal2.5-25 mm² rigid |
| Wire stripping length | 14 mm |
| [Uc] maximum continuous operating voltage | 350 V |
| Maximum discharge current | 20 kA |
| 9 mm pitches | 2 |
| Nominal discharge current | 5 kA |
| Mounting support | 35 mm DIN rail |
| Surge arrester class type | type 2 |
| Height | 85 mm |
| Environment | |
| Relative humidity | 5-95 % |
| IP degree of protection | IP20, enclosure: IP40 |
| Standards | IEC 61643-11:2011 |
| Ambient air temperature for operation | -25-60 °C |
