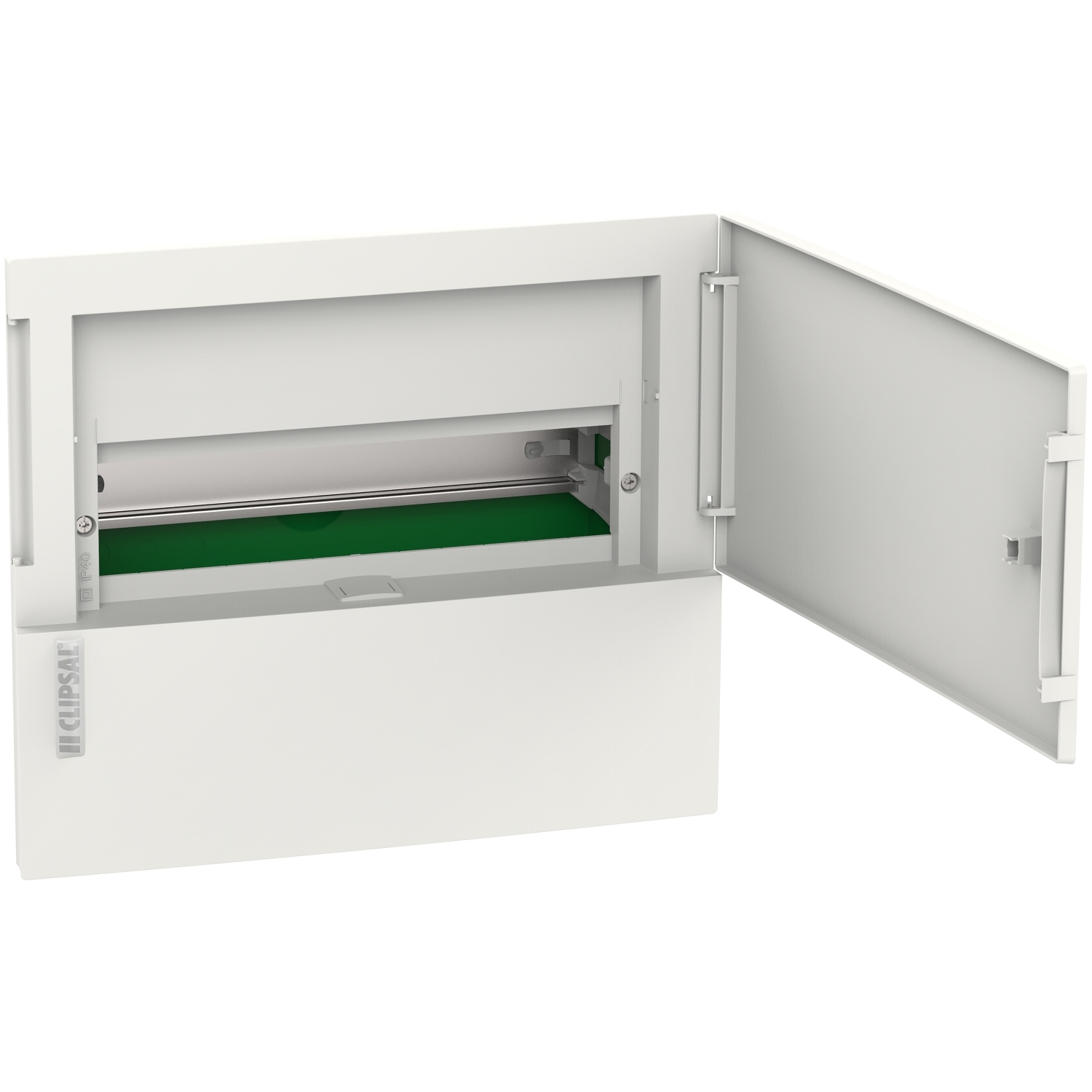

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | distribution |
| Colour | white (RAL 9003) |
| Number of 18 mm modules per row | 12 |
| Range | Resi MAX |
| Type of front cover | plain |
| Enclosure type | mini enclosure for modular device |
| Product or component type | enclosure |
| Door type | plain door |
| Provided equipment | neutral terminal block, earth terminal block, DIN rail |
| Product brand | Clipsal |
| Complementary | |
| Width | 294 mm (with door), 270 mm external |
| Enclosure material | technoplastic |
| Number of ways | 12 ways |
| Enclosure mounting | flush |
| Type of rail | 35 mm asymmetrical rail |
| Height | 252 mm (with door), 228 mm external |
| Depth | 98 mm (with door), 80 mm external |
| Cable entry | knock-out rear, knock-out top and bottom |
| Total number of 18 mm modules | 12 |
| Number of horizontal rows | 1 |
| [In] rated current | 63 A |
| Number of terminal blocks | 14 neutral (screw connection), 12 earth (screw connection) |
| Environment | |
| Fire resistance | back box: 850 °C, door: 650 °C |
| IK degree of protection | IK07 |
| IP degree of protection | IP40 |
