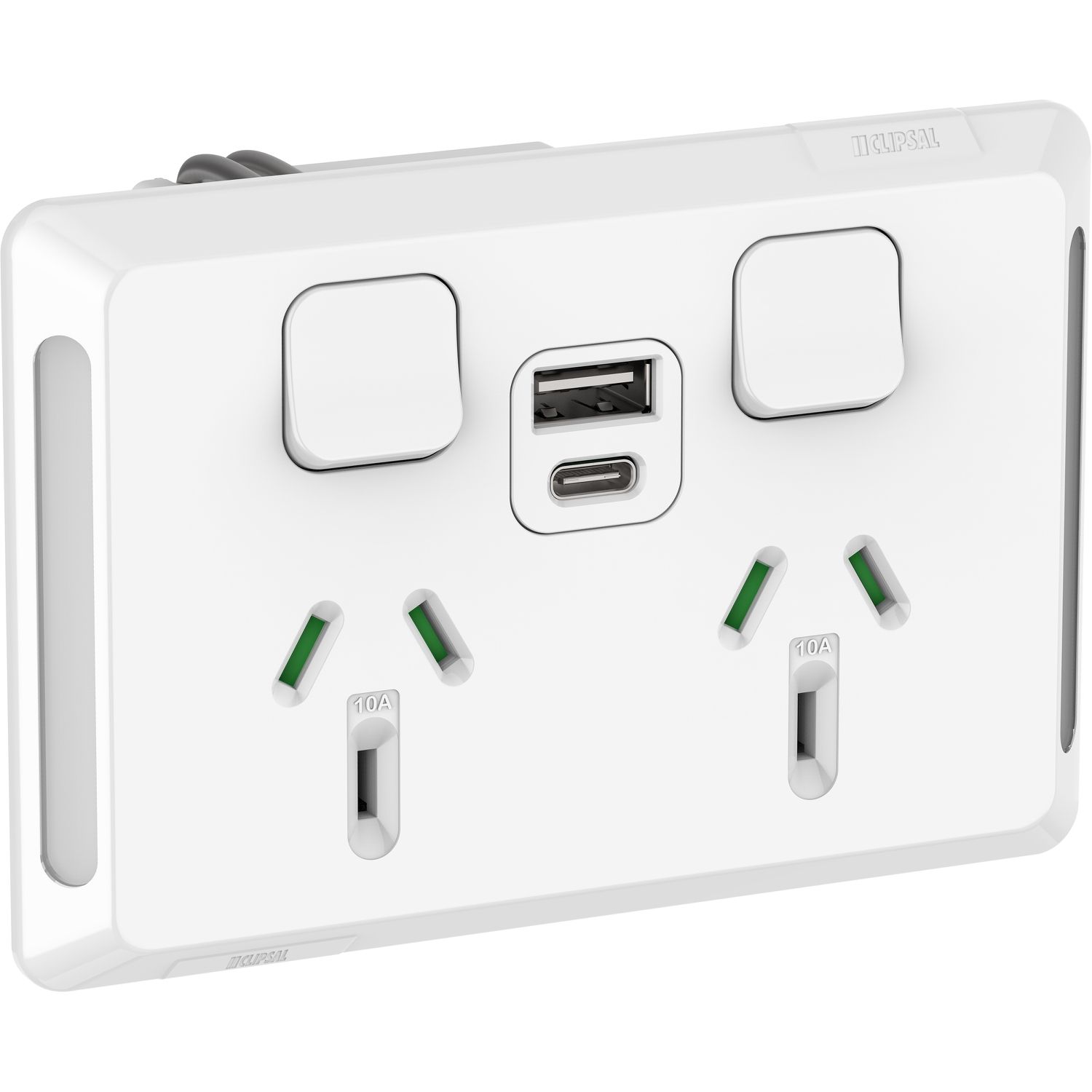

Providing options to charge with a USB Type A or a USB Type C cable, the Clipsal Pro Series Twin Horizontal Power Point with USB outlets offers the gamut of charging options. Perfect for public spaces where you want to offer charging options for patrons, the outlet is designed to be robust and hard wearing.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Outlet standard | Australian |
| Outlet poles configuration | 2P + E with shutter |
| Device presentation | complete product |
| Range | Pro Series |
| Product or component type | switched socket |
| Complementary | |
| Ground lug position | straight 180° position |
| Number of power socket outlets | 2 |
| Quantity per set | set of 10 |
| Sale per indivisible quantity | 1 |
| Wire stripping length | 16 mm |
| Surface treatment | untreated |
| Surface finish | glossy |
| Height | 78 mm |
| Screwdriver shape | Philips No 2, square drive no 1 (SQ1) |
| Connections - terminals | 3 screw terminal |
| Depth | 38 mm |
| Number of rocker | 2 |
| Width | 116 mm |
| Material | ABS (acrylonitrile butadiene-styrene): skin, ABS (acrylonitrile butadiene-styrene): infill piece, PC (polycarbonate): window, POM (polyoxymethylene): shutter, PP (polypropylene), PC (polycarbonate): fixing frame |
| Device composition | 2 USB charger |
| Installation direction | horizontal |
| Net weight | 0.094 kg |
| Type of packing | polybag |
| Clamping connection capacity | 3 x 4 mm² for rigid or stranded cable(s), 1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s) |
| Outlet standard description | with earthing contact |
| Outlet standard deviation | Australian/New Zealand |
| Rated current | 10 A at 250 V AC 50 Hz |
| Fixing mode | by screws |
| Range compatibility | Pro Series |
| Device mounting | flush |
| Colour tint | white (XW) |
| Environment | |
| Relative humidity | 10-95 % |
| IK degree of protection | IK08 |
| Product certifications | RCM |
| Ambient air temperature for operation | 0-45 °C |
| Standards | AS/NZ 3112 |
